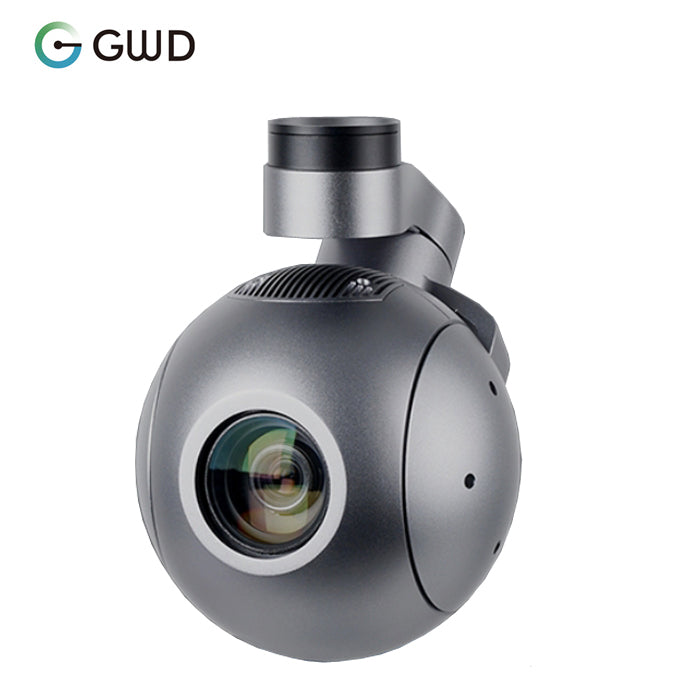

GWD-A40 Pro 40x EO AI Object Tracking Gimbal Camera For Drone
GWD-A40 Pro 40x EO AI Object Tracking Gimbal Camera For Drone
Regular price
$2,560.00
Regular price
$3,399.00
Sale price
$2,560.00
Unit price
/
per
GWD-A40 Pro 40x EO AI Object Tracking Gimbal Camera
Specification
Hardware Parameter | |
Working voltage | 16V |
Input voltage | 4S ~ 6S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 500~1500mA @ 16V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
Photo storage format | JPG(1920*1080) |
Video storage format | MP4 (1080P 30fps) |
Car reading online | HTTP read pictures in TF card |
Control method | PWM / TTL / S.BUS / TCP(IP output) / UDP(IP output) |
Geotagging | Support, display time and GPS coordinate in picture exif |
Gimbal Spec | |
Angle range of structure design | Pitch/Tilt:-60°~130°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Angle range of software design | Pitch/Tilt: -45°~125°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll/Yaw: ±0.02° |
One-key to center | √ |
EO Camera spec | |
Imager Sensor | SONY 1/2.8" CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 40x, f=4.25mm(wide end)~170mm(tele end), F1.6~F4.95 |
Digital zoom | 32x |
Min object distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
Horizontal viewing angle | 66.35°(wide end) ~ 1.9°(tele end) |
Sync system | Internal |
S/N ratio | more than 50dB |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority) |
Focusing system | Auto , One Push, Manual |
White balance | Auto, Indoor, Outdoor, One Push , Manual |
Shutter speed | 1/1s to 1/30,000s |
Auto ICR | Yes |
Image stabilization | Yes |
Progressive scan mode | Yes |
Backlight compensation | Yes |
Defog | Yes |
OSD | Yes |
Camera Object Tracking | |
Update rate of deviation pixel | 30Hz |
Output delay of deviation pixel | <30ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 16*16 pixel |
Maximum object size | 256*256 pixel |
Tracking speed | ±48 pixel/frame |
Object memory time | 100 frames |
AI auto-zoom | Yes |
EO Camera AI Performance | |
Targets type | Car and human |
Simultaneous detection quantity | ≥ 10 targets |
Min contrast ratio | 5% |
Min target size | 5×5 pixel |
Car detection rate | ≥85% |
False alarm rate | ≤10% |
Packing Information | |
N.W. | 1074g(Viewport Version with Viewport) |
Product meas. | 134.5*118*197.7mm / 134.5*118*203.4mmmm(Viewport Version) |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
G.W. | 2646g |
Package meas. | 360*300*250mm |
