GWD-Q30TIRM 30X Drone Trail Cameras Auto-identify Detect Objects Optical Zoom Dual Sensor Lens EO Thermal Rangefinder Gimbal Video Camera
GWD-Q30TIRM 30X Drone Trail Cameras Auto-identify Detect Objects Optical Zoom Dual Sensor Lens EO Thermal Rangefinder Gimbal Video Camera
Regular price
$18,399.00
Regular price
$25,666.00
Sale price
$18,399.00
Unit price
per
Couldn't load pickup availability
Q30TIRM 30X 3 Axis Drone Auto-identify Detect Objects Optical Zoom Dual Sensor Lens EO Thermal Rangefinder Gimbal Video Camera
Q30TIRM

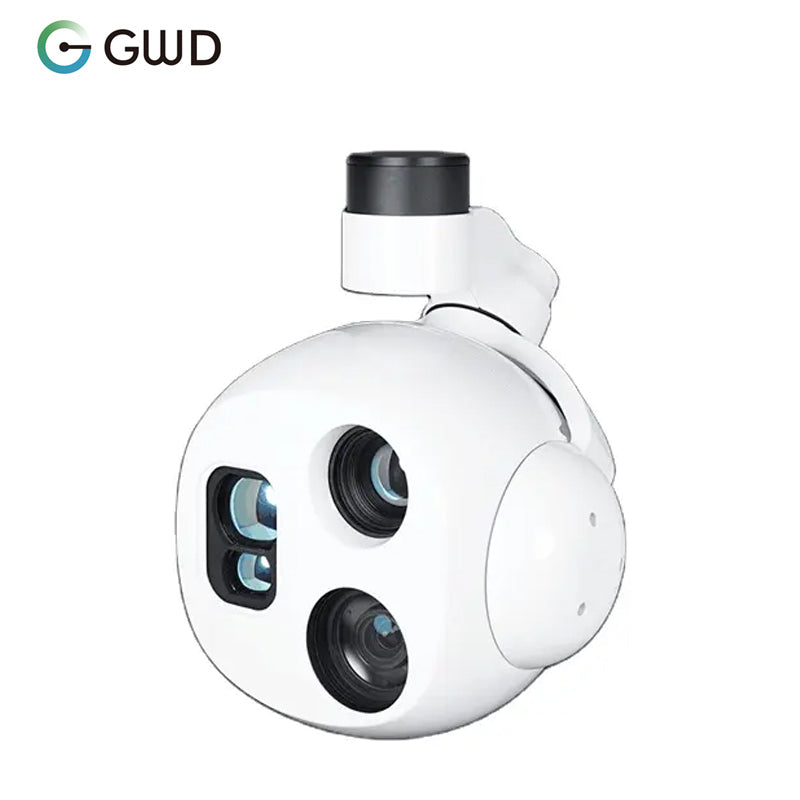

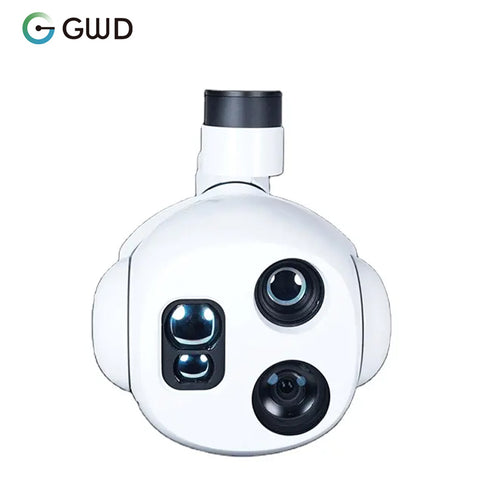

Q30TIRM plus is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera, a 640x480 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 25mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 1500 meters, this information will display on screen automatically. Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@ F1.6 starlight level min illumination, Q30TIRM plus can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains..
|
Hardware Parameter
|
|
|
Working voltage
|
14V ~ 16V
|
|
Input voltage
|
3S ~ 4S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
550mA @ 12V
|
|
Idle current
|
450mA @ 12V
|
|
Power consumption
|
≤ 6.6W
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI(HD output 1080P 60fps) / RJ45 / SDI
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
PWM / TTL / S.BUS
|
|
Camera Spec
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±170° / ±360°*N (IP/SDI output)
|
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw：±0.01°
|
|
One-key to center
|
√
|
|
Camera Spec
|
|
|
Imager Sensor
|
SONY 1/2.8" "Exmor R" CMOS
|
|
Picture quality
|
Full HD 1080 (1920*1080)
|
|
Effective pixel
|
2.13MP
|
|
Lens optical zoom
|
30x, F=4.3~129mm
|
|
Digital zoom
|
12x (360x with optical zoom)
|
|
Min object distance
|
10mm(wide end) to 1200mm(tele end). Default 300mm
|
|
Horizontal viewing angle
|
1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end) SD: 47.8°(wide end) ~ 1.7°(tele end) |
|
Sync system
|
Internal
|
|
S/N ratio
|
more than 50dB
|
|
Min illumination
|
Color 0.01lux@F1.6
|
|
Exposure control
|
Auto, Manual, Priority mode(shutter priority & iris priority),
Bright, EV compensation, Slow AE |
|
Gain
|
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
|
White balance
|
Auto, ATW, Indoor, Outdoor, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
|
Shutter speed
|
1/1s to 1/10,000s, 22 steps
|
|
Backlight compensation
|
Yes
|
|
Aperture control
|
16 steps
|
|
Defog
|
Yes
|
|
OSD
|
Yes
|
|
Fotoformate
|
JPEG
|
|
Videoformate
|
MP4
|
|
Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<10ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
160*160 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
The mean square root values of
pulse noise in the object position |
< 0.5 pixel
|
|
Thermal imager spec
|
|
|
Lens size
|
25mm
|
|
Horizontal FOV
|
24.6°
|
|
Vertical FOV
|
18.5°
|
|
Diagonal FOV
|
30.4°
|
|
Detective Distance (Man: 1.8x0.5m)
|
735 meters
|
|
Recognize Distance (Man: 1.8x0.5m)
|
184 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
92 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
2255 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
564 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
282 meters
|
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
|
Detector pixel
|
640*480
|
|
Pixel size
|
17μm
|
|
Focusing method
|
Athermal prime lens
|
|
Emissivity correction
|
0.01~1
|
|
NETD
|
≤50mK (@25℃)
|
|
MRTD
|
≤650mK (@characteristic frequency)
|
|
Image enhancement
|
Auto adjust image brightness and contrast ratio
|
|
Color palette
|
White, iron red, pseudo color
|
|
Auto Non-uniform correction
|
Yes (no shutter)
|
|
Digital zoom
|
1x ~ 6x
|
|
Sync correct time
|
Yes
|
|
Thermometry type
|
Temperature bar (psudo color display) max temp, min temp,
FOV center temp (Optional) |
|
Temperature warning
|
0℃~100℃
|
|
Thermal Object Tracking
|
|
|
Update rate of deviation pixel
|
25Hz
|
|
Output delay of deviation pixel
|
<3ms
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
Laser Rangefinder
|
|
|
Range
|
5~1500 meters
|
|
Resolution
|
0.5m
|
|
Working current:
|
80mA （max）
|
|
Light Beam
|
905nm pulse laser
|
|
Divergent Angle
|
3 mrad
|
|
Laser pulse frequency
|
1HZ
|
|
Power
|
＜ 1 mW (safe for eye)
|
|
Ranging mode
|
Pulse
|
|
Location Resolving
|
Latitude and longitude of target
|
|
Ranefinder
|
Target distance measuring
|
|

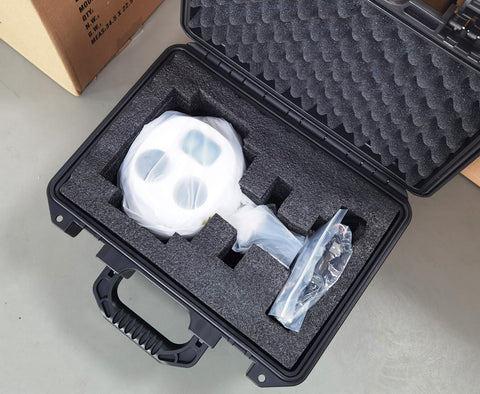

Packing Information
|
|
|
N.W.
|
1161g (Viewport version)
|
|
Product meas.
|
156*140.5*222mm/156*140.5*228mm
|
