GWD-A10T Professional 3 Axis 10x optical Zoom Drone Thermal Sensor AI Object Detection Tracking Gimbal Camera For UAV
GWD-A10T Professional 3 Axis 10x optical Zoom Drone Thermal Sensor AI Object Detection Tracking Gimbal Camera For UAV
Regular price
$4,999.00
Regular price
$5,678.00
Sale price
$4,999.00
Unit price
per
Couldn't load pickup availability
A10T Professional 3 Axis 10x optical Zoom Drone Thermal Sensor AI Object Detection Tracking Gimbal Camera For UAV
Product Features

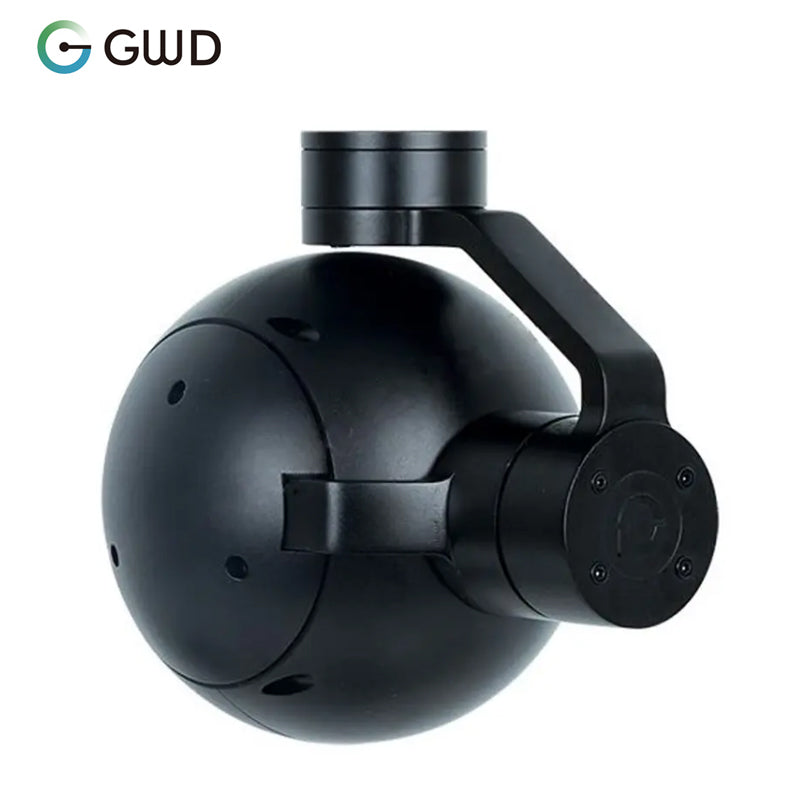

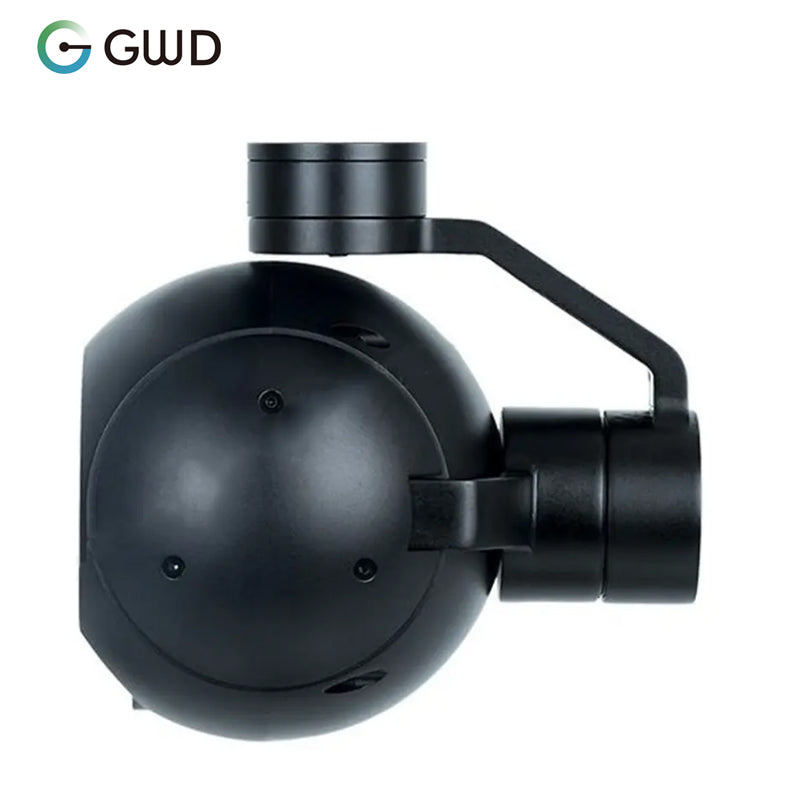

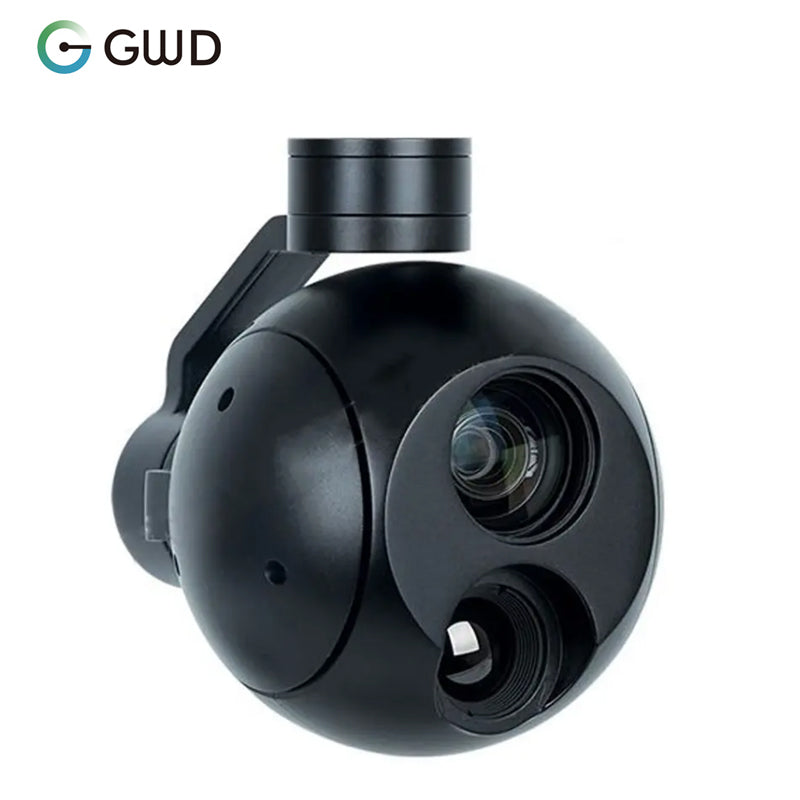

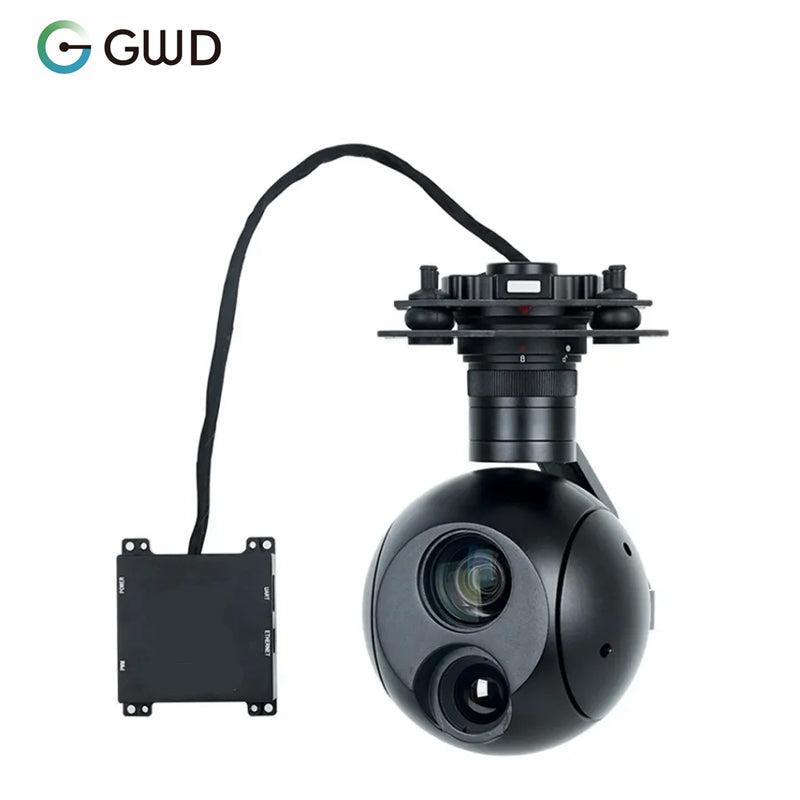

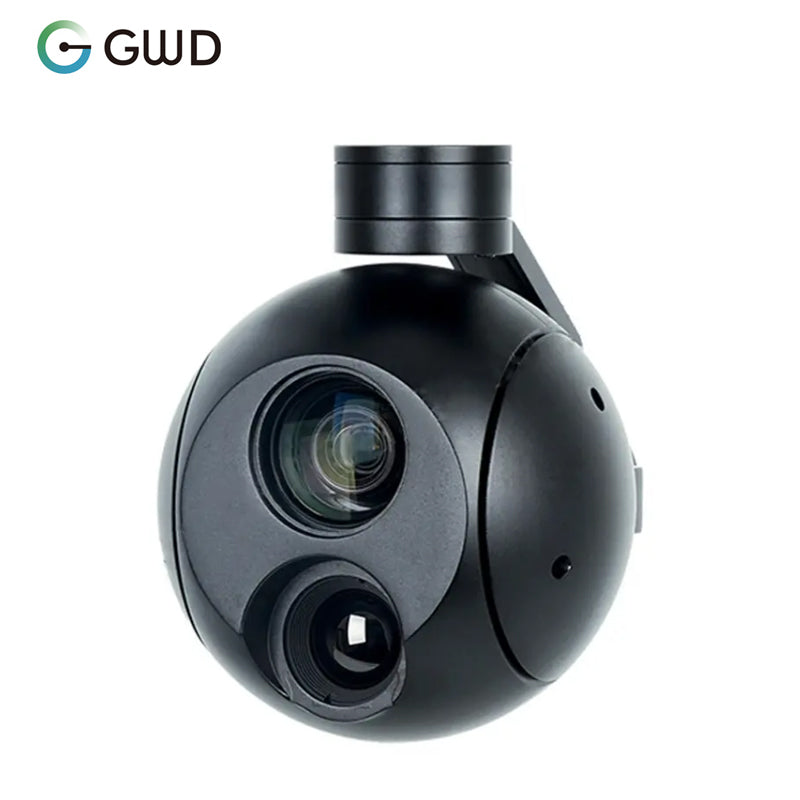

A10T is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom camera and a 19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of better metal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking, It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.
|
Gimbal spec
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 6S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
630~2000mA @ 12V
|
|
Idle current
|
630mA @ 12V
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI(1080P 30fps/60fps) / IP (1080p 25fps/30fps)
|
|
Local-storage
|
SD card (Up to 128G,class 10, FAT32 or ex FAT format)
|
|
Photo storage format
|
JPG(1920*1080)
|
|
Video storage format
|
MP4 (1080P/720P 25fps/30fps)
|
|
Control method
|
PWM / TTL / S.BUS/ TCP(IP output version)
|
|
Gimbal Spec
|
|
|
Angle scope of structure design
|
Pitch/Tilt: -45°～95°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
|
|
Angle scope of software design
|
Pitch/Tilt: -40°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw：±0.02°
|
|
One-key to center
|
√
|
|
EO Camera Spec
|
|
|
Imager Sensor
|
1/3" Panasonic CMOS Sensor
|
|
Total pixel
|
2.48M
|
|
Picture quality
|
Full HD 1080 (1920*1080)
|
|
Optical zoom
|
10x, f = 5.1mm ~ 51mm
|
|
Digital zoom
|
32x
|
|
Angle of View (D, H, V)
|
D: 68°(Wide end) ~ 6.7° (Tele end)
|
|
H: 54°(wide end) ~ 4.9°(tele end)
|
|
|
V: 31°(wide end) ~ 4.0°(tele end)
|
|
|
Sync system
|
Progressive Scan
|
|
Sync. System Internal
|
Internal
|
|
S/N ratio
|
more than 50dB
|
|
Min illumination
|
Color : 0.5 lux , BW : 0.1lux
Color DSS : 0.125 lux , BW DSS : 0.025 lux |
|
Gain Control (AGC)
|
Off / On
|
|
White balance
|
Auto / One Push / Manual / Indoor / Outdoor
|
|
Shutter speed
|
1/30(25) ~ 1/30,000 sec
|
|
Focus
|
Auto / One Push / Manual
|
|
Iris
|
0 ~ 20 steps
|
|
Exposure
|
Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
|
|
Defog
|
Yes
|
|
IR Thermal Imager Spec
|
|
|
Focus Length
|
19mm
|
|
Coating Film
|
DLC
|
|
Horizontal FOV
|
22.9°
|
|
Vertical FOV
|
18.4°
|
|
Diagonal FOV
|
29.0°
|
|
Detective Distance (Man: 1.8x0.5m)
|
792 meters
|
|
Recognize Distance (Man: 1.8x0.5m)
|
198 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
99 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
2428 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
607 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
303 meters
|
|
Working mode
|
Uncooled VOx long wave (8μm~14μm) thermal imager
|
|
Detector pixel
|
640*512
|
|
Pixel size
|
12μm
|
|
Focusing method
|
Athermal prime lens
|
|
NETD
|
≤50mK@F.0 @25℃
|
|
Color palette
|
White, iron red, pseudo color
|
|
Digital zoom
|
1x ~ 8x
|
|
Sync correct time
|
Yes
|
|
EO / IR Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
30Hz
|
|
Output delay of deviation pixel
|
<30ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
256*256 pixel
|
|
Tracking speed
|
＞32 pixel/frame
|
|
Object memory time
|
100 frames
|
|
EO Camera AI Performance
|
|
|
Targets type
|
Car and human
|
|
Simultaneous detection quantity
|
≥ 10 targets
|
|
Min contrast ratio
|
5%
|
|
Min target size
|
5×5 pixel
|
|
Car detection rate
|
≥85%
|
|
False alarm rate
|
≤10%
|
|
Packing Information
|
|
|
N.W.
|
539g(Viewport version)
|
|
Product meas.
|
117.2*92*154.1mm / 117.2*92*159.8mm(Viewport Version)
|
|
Accessories
|
1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion
|
|
Package meas.
|
300*250*200mm
|
