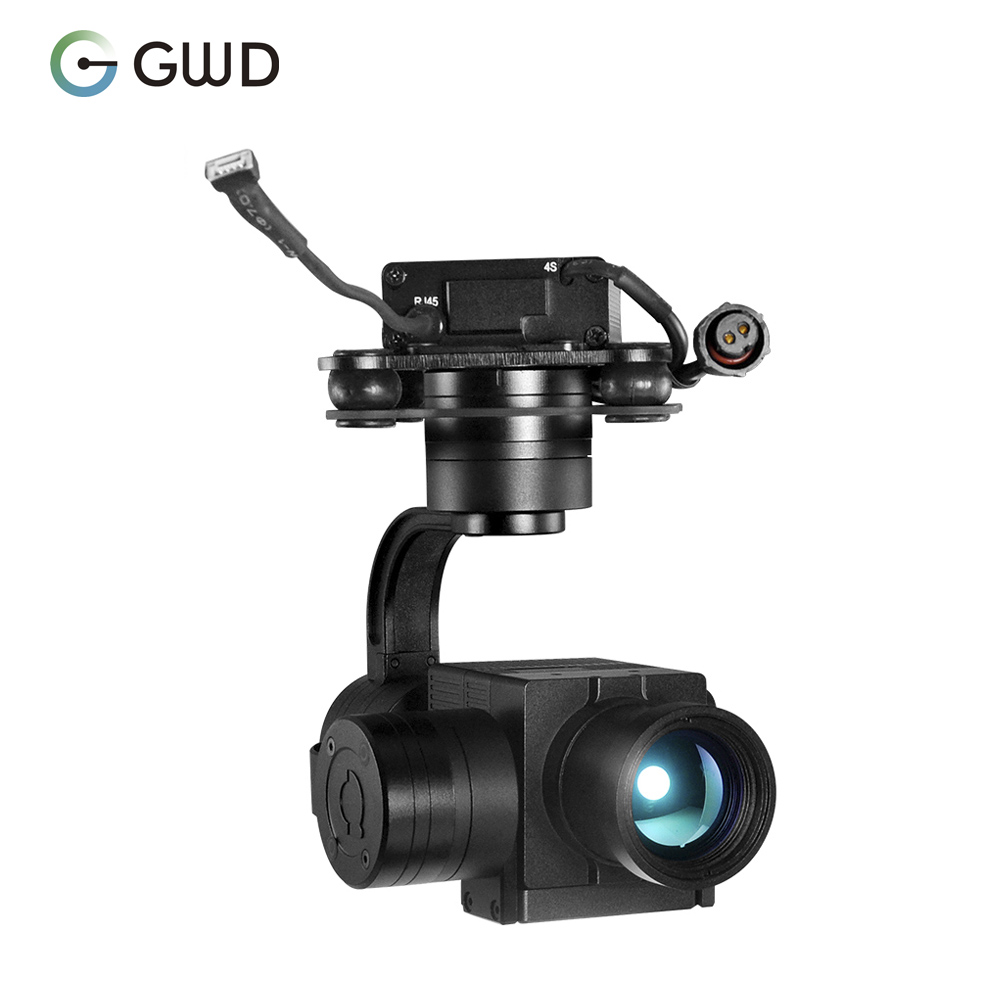

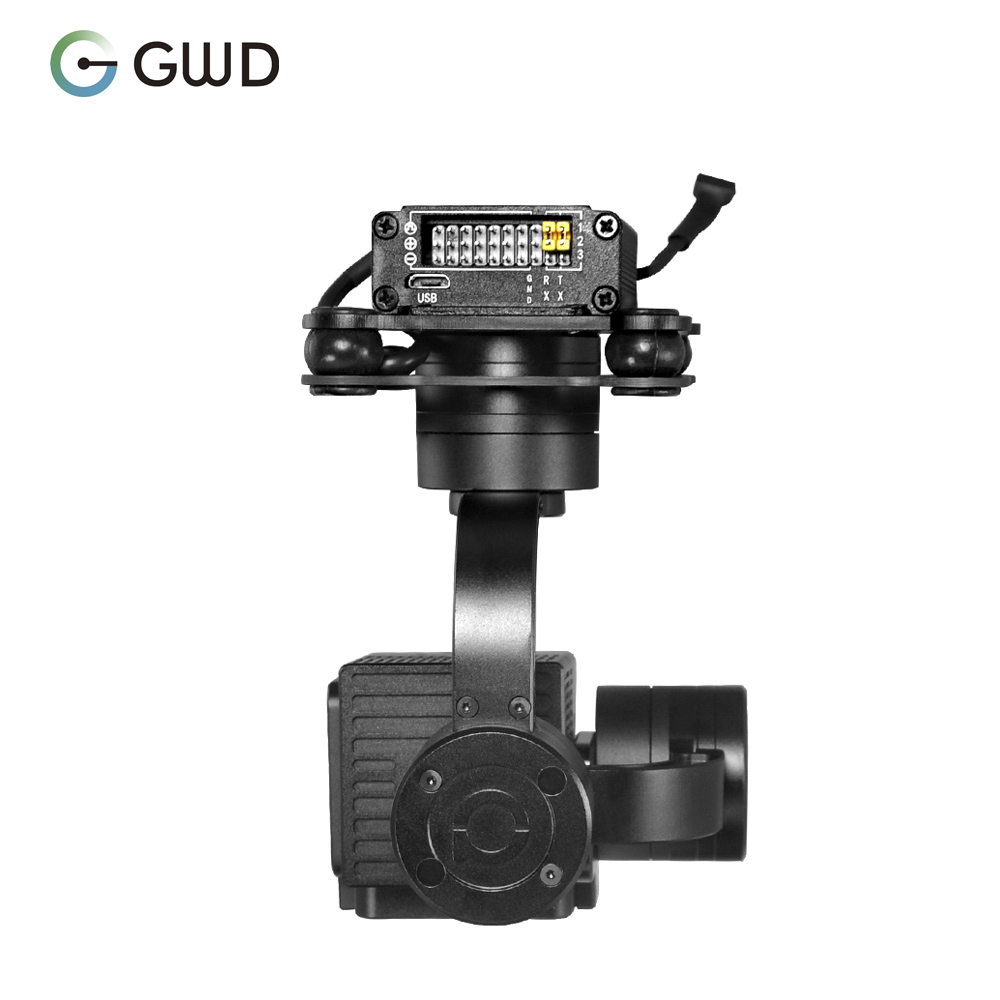

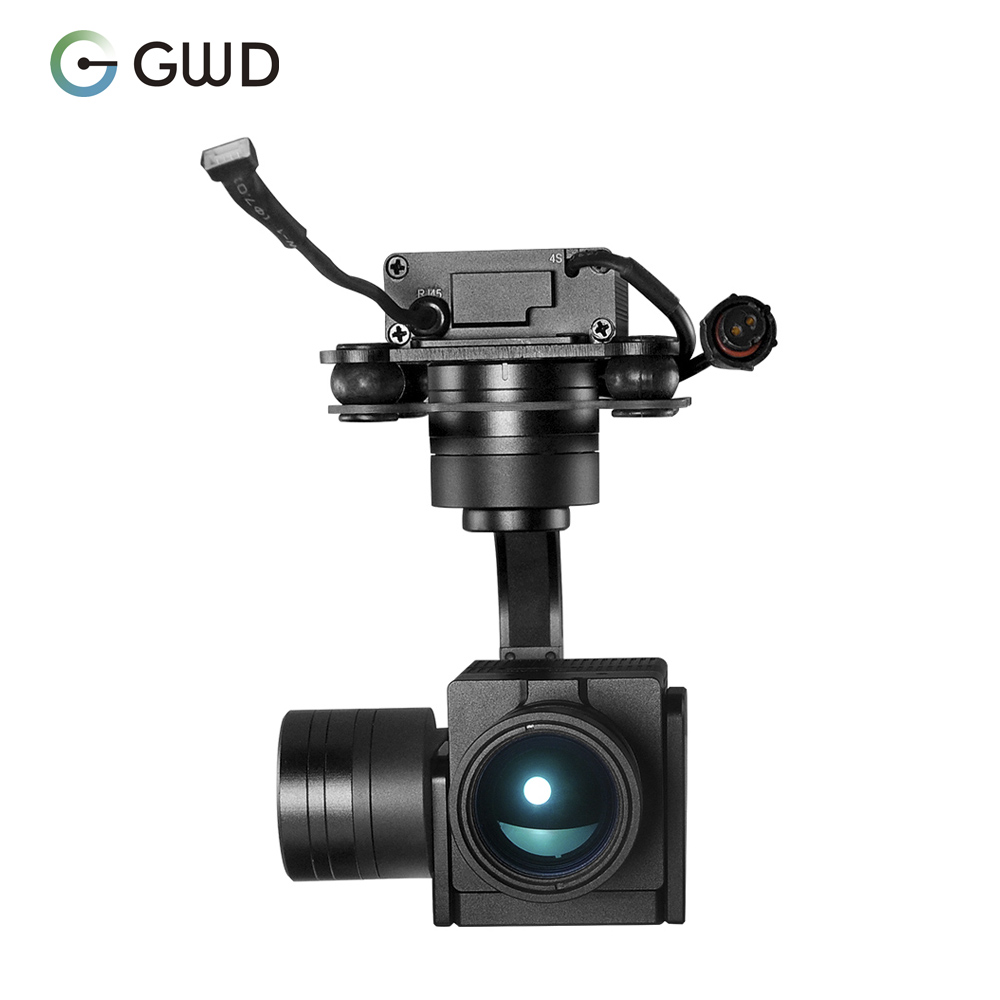

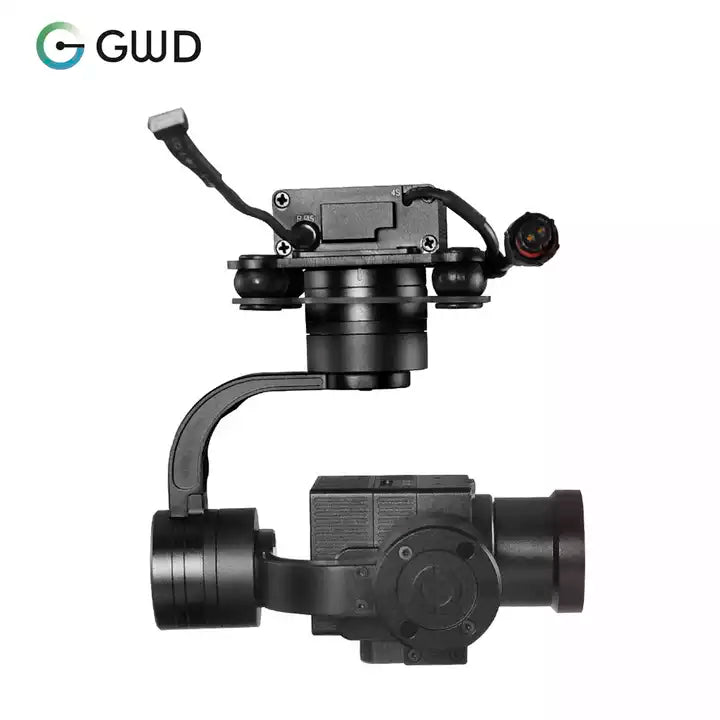

GWD-ZIR25T Custom UAV 25mm IR Single Thermal Imagining Sensor Gimbal Thermometry Tracking Night Vision Camera

GWD-ZIR25T Custom UAV 25mm IR Single Thermal Imagining Sensor Gimbal Thermometry Tracking Night Vision Camera

Regular price $8,199.00
Regular price Sale price $8,199.00
Sale Sold out
Usage
Quick Details:
Warranty: 6 Months
Customized support: OEM
Place of Origin: Guangdong, China
Brand Name: GWD
Model Number: GWD-ZIR25T
Product name:
Professional thermal imaging camera
Working voltage:
12v
Input voltage:
3S ~ 4S
Working environment temp:
-20℃ ~ +50℃
Output:
micro HDMI(HD output 1080P 60fps) / IP
Local-storage: SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method:
PWM / TTL / S.BUS / TCP
Use for:
For uav/drone camera
OEM/ODM:
Warmly Welcomed
Lead Time:
Quantity(pieces) 1 - 5 6 - 500 >500
Est. Time(days) 15 35 To be negotiated
Products Description
Custom UAV 25mm IR Single Thermal Imagining Sensor Gimbal Thermometry Tracking Night Vision Camera With Black Body

Powerful 25mm Thermal Imager

Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 25mm lens thermal image sensor, ZIR25T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Hardware Parameter
Working voltage
12V
Input voltage
3S ~ 4S
Dynamic current
500mA @ 12V
Idle current
400mA @ 12V
Power consumption
≤ 3.85W
Working environment temp.
-20℃ ~ +50℃
Output
micro HDMI(HD output 1080P 60fps) / IP
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
PWM / TTL / S.BUS / TCP
Gimbal Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±145°/360°*N (IP output version)
Vibration angle
Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center
Thermal Imager Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±145°/360°*N (IP output version)
Vibration angle
Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center
Recognize Distance (Man: 1.8x0.5m)
140 meters
Verified Distance (Man: 1.8x0.5m)
70 meters
Detective Distance (Car: 4.2x1.8m)
1714 meters
Recognize Distance (Car: 4.2x1.8m)
428 meters
Verified Distance (Car: 4.2x1.8m)
214 meters
Working mode
Uncooled long wave (8μm~14μm) thermal imager
Photo storage format
JPG(704*576)
Video storage format
AVI (704*576 25fps)
Detector pixel
640*480
Pixel size
17μm
Focusing method
Prime lens
NETD
≤60mK (@30℃)
Image enhancement
Digital image details enhancement technology, 2 enhancement mode
Color palette
Outline-drawning, white hot, black red, green blue yellow red,ect. 12 color palette
Auto Non-uniform correction
Digital thermal image correction technology
Digital zoom
1x ~ 4x
Sync correct time
Yes
Thermometry type
Optional: max temp, min temp, FOV center temp, average temp
Temperature warning
Optional: overheat warning
Thermal Object Tracking
Update rate of deviation pixel
25Hz
Output delay of deviation pixel
<3ms
Minimum object size
32*32 pixel
Maximum object size
128*128 pixel
Tracking speed
±48 ~ ±192 pixel/frame
Object memory time
100 frames (4s)
Packing Information
N.W.
475g
Product meas.
80*114*123mm
Accessories
1pc gimbal device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with
foam cushion
G.W.
980g
Package meas.
152*121*167mm
