GWD

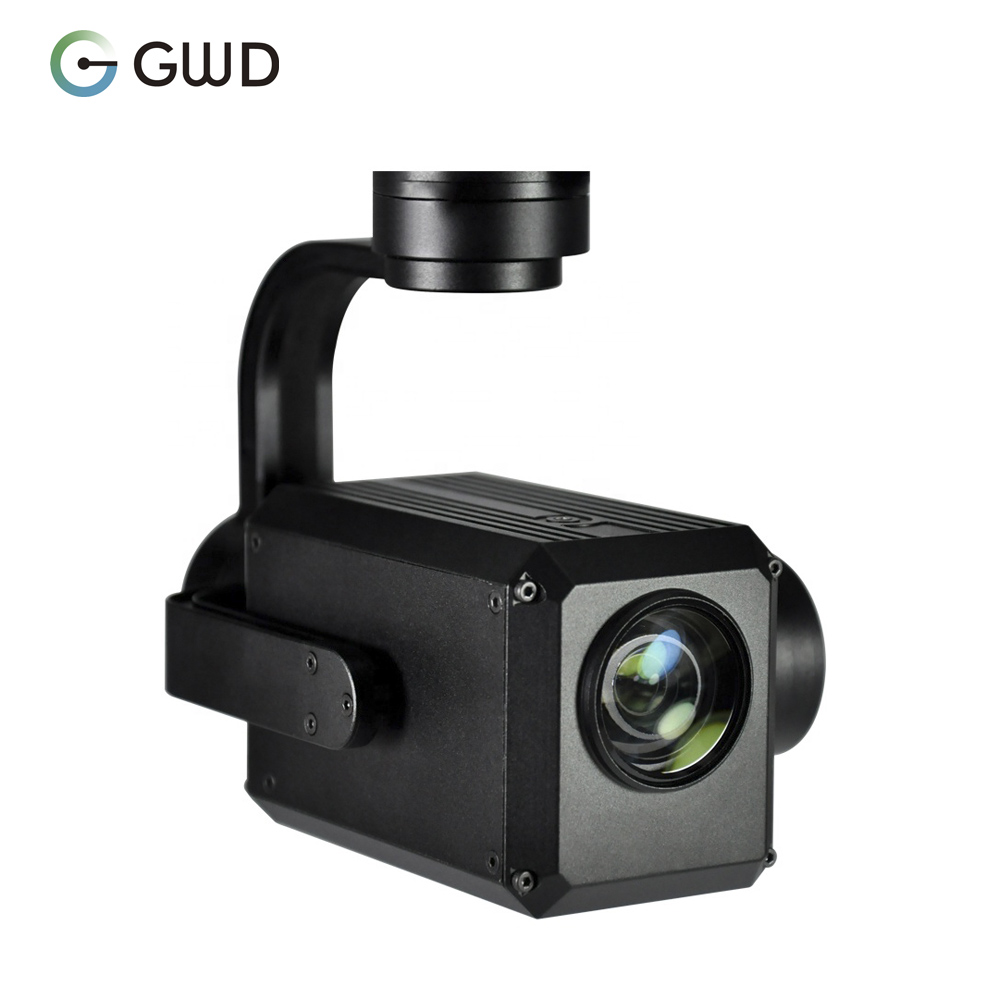

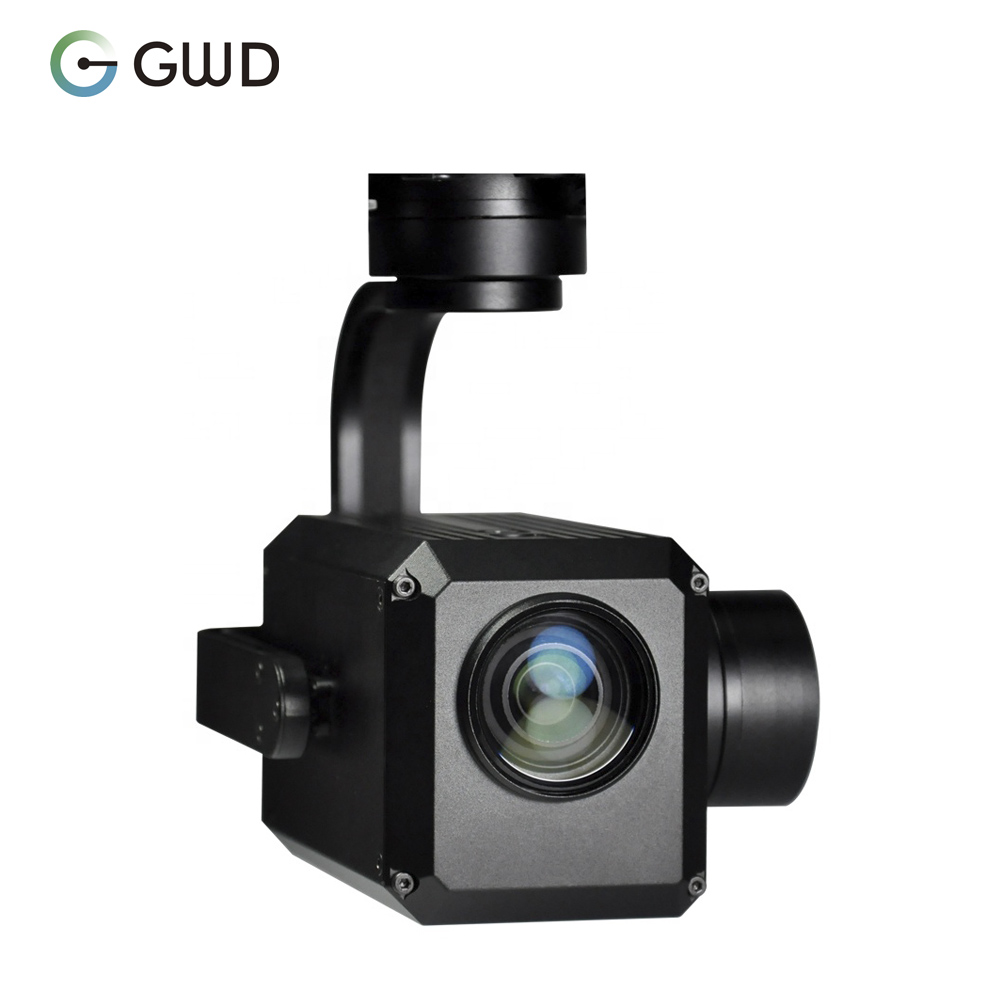

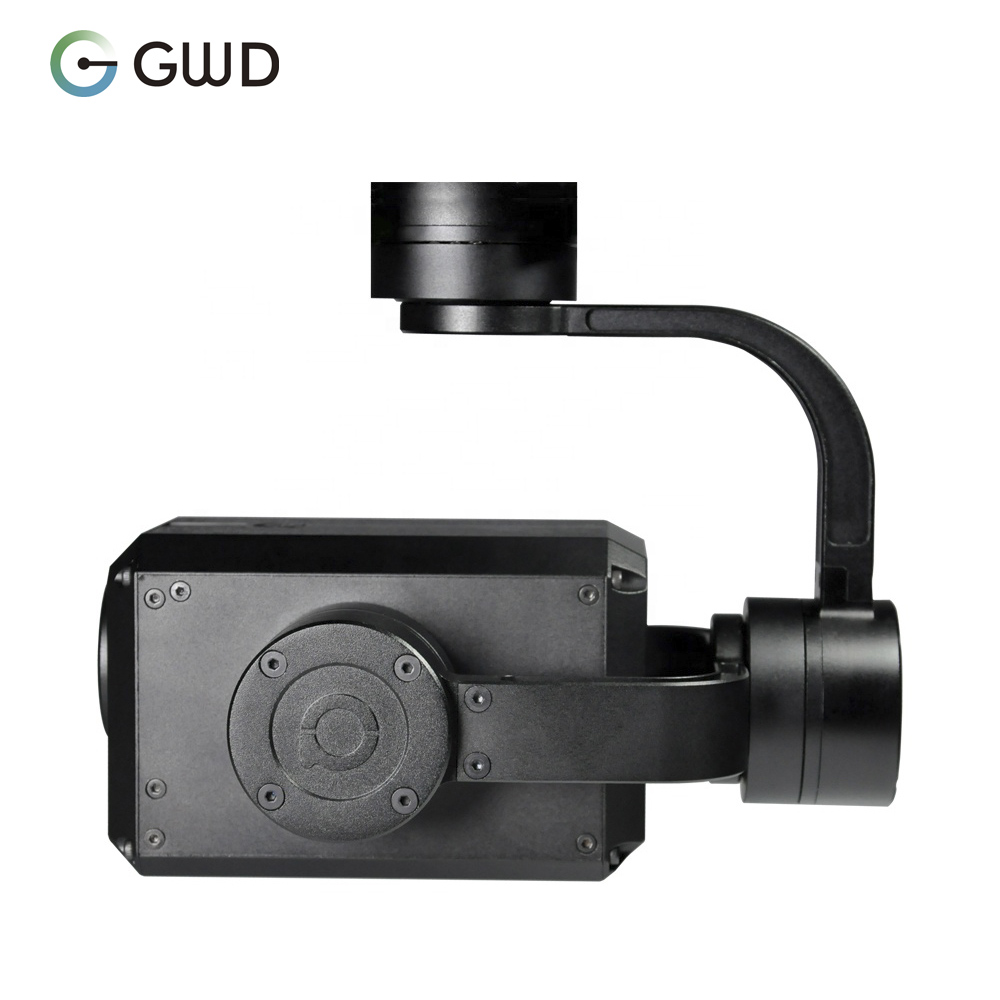

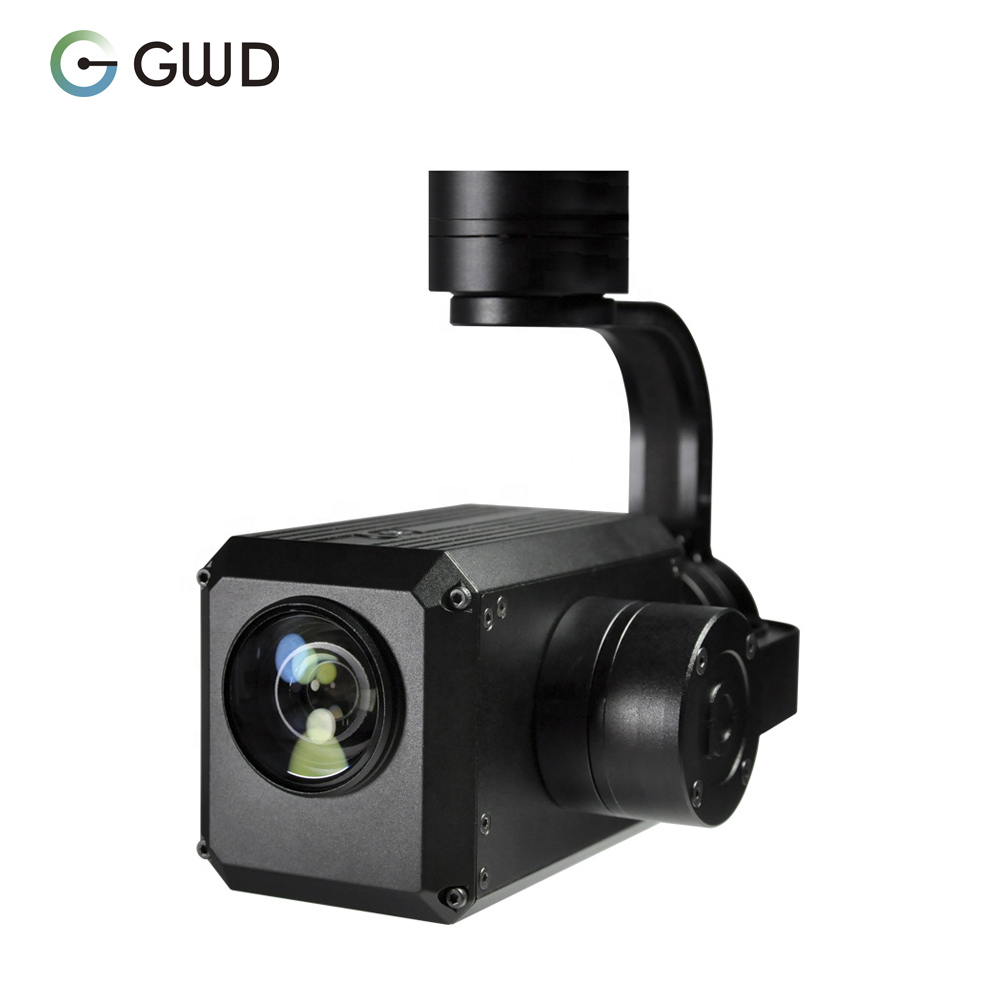

Drone Accessories & Parts GWD Z40K DJI 3 Axis 4K Video HD Visual Inspection DJI Drones Camera for DJI M200 210 For Drone

Drone Accessories & Parts GWD Z40K DJI 3 Axis 4K Video HD Visual Inspection DJI Drones Camera for DJI M200 210 For Drone

Regular price $5,599.00
Regular price Sale price $5,599.00
Sale Sold out
Quick Details:
Place of Origin: Guangdong, China
Brand Name: GWD
Model Number: GWD-Z40K
Type:
Camera
Product name:
Professional drone camera
Working voltage:
12v
Input voltage:
3S ~ 6S
Working environment temp:
-20℃ ~ +60℃
Output:
micro HDMI
Local-storage:
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method:
PWM / TTL / SBUS
Use for:
For uav / drone camera
OEM/ODM:
Warmly Welcomed
Lead Time:
Quantity(pieces) 1 - 5 6 - 500 >500
Est. Time(days) 15 35 To be negotiated
Products Description

Drone Accessories & Parts GWD Z40K DJI 3 Axis 4K Video HD Visual Inspection DJI Drones Camera for DJI M200 210 For Drone

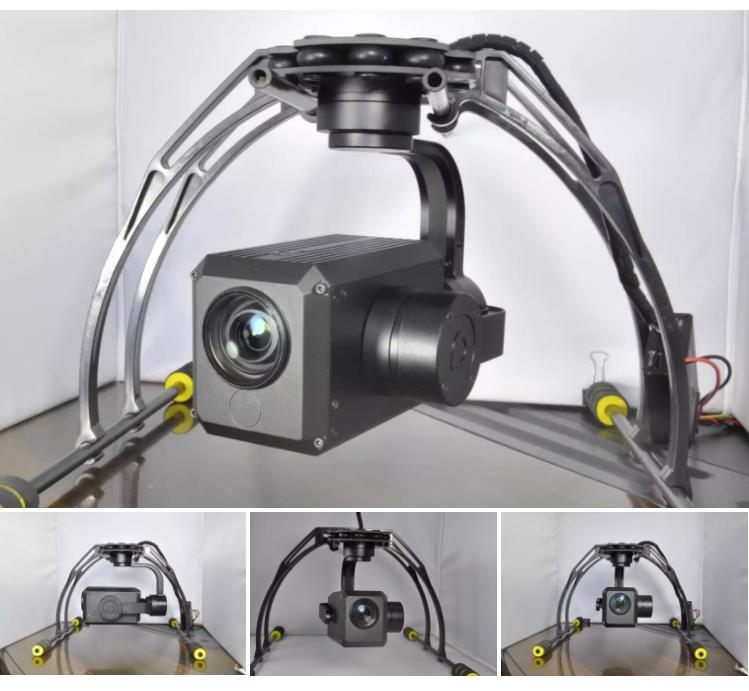

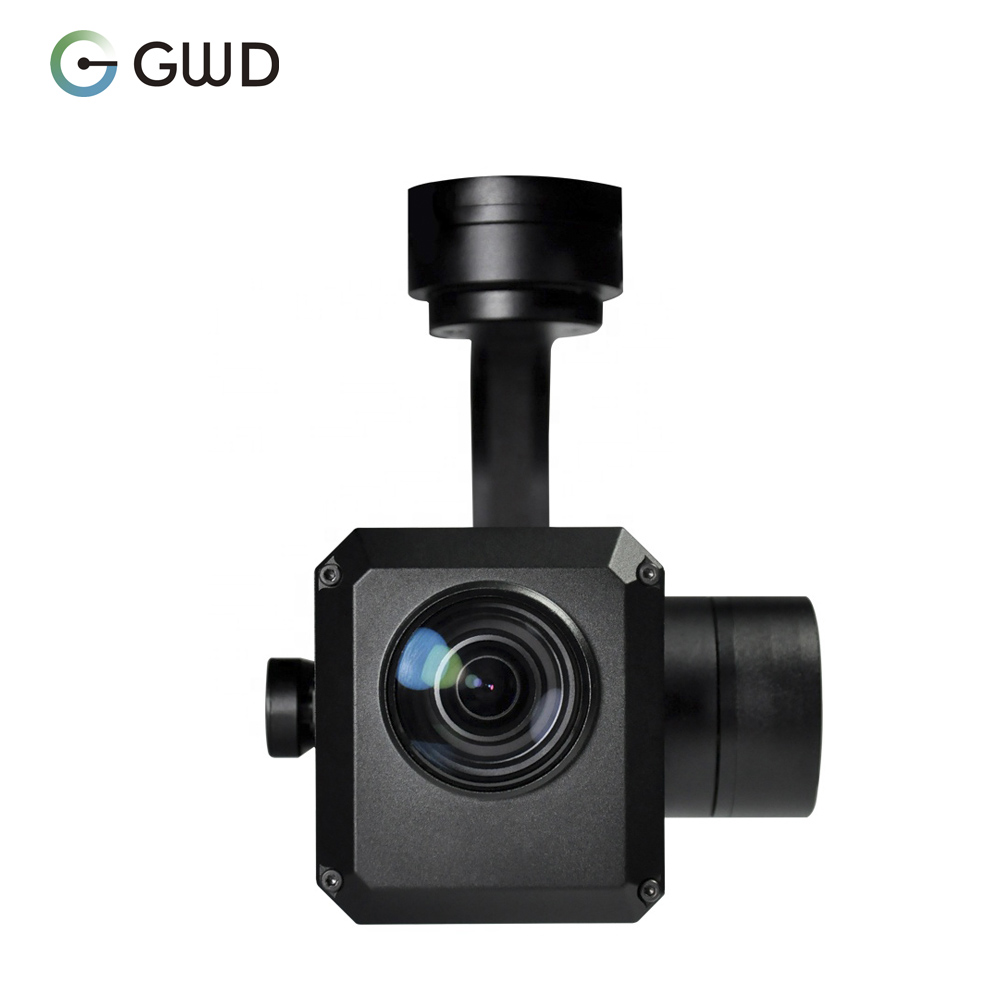

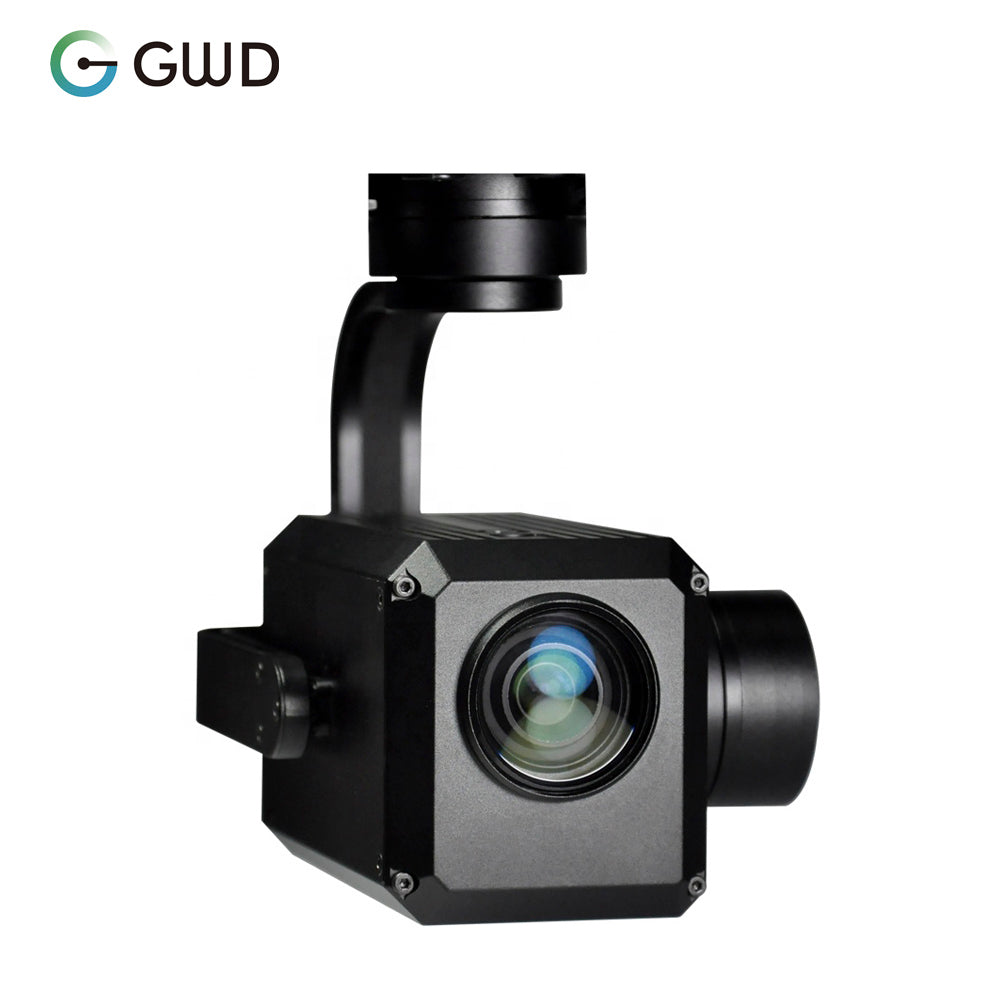

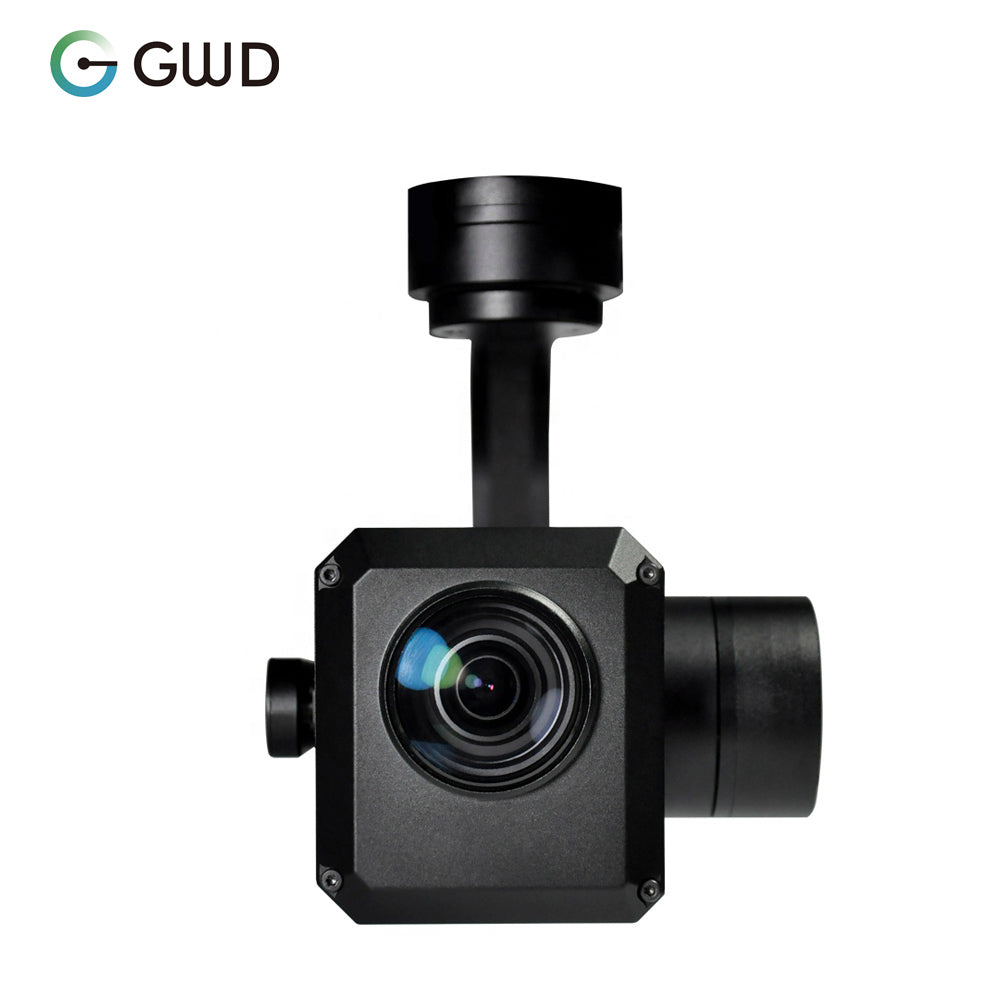

Z40K is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power

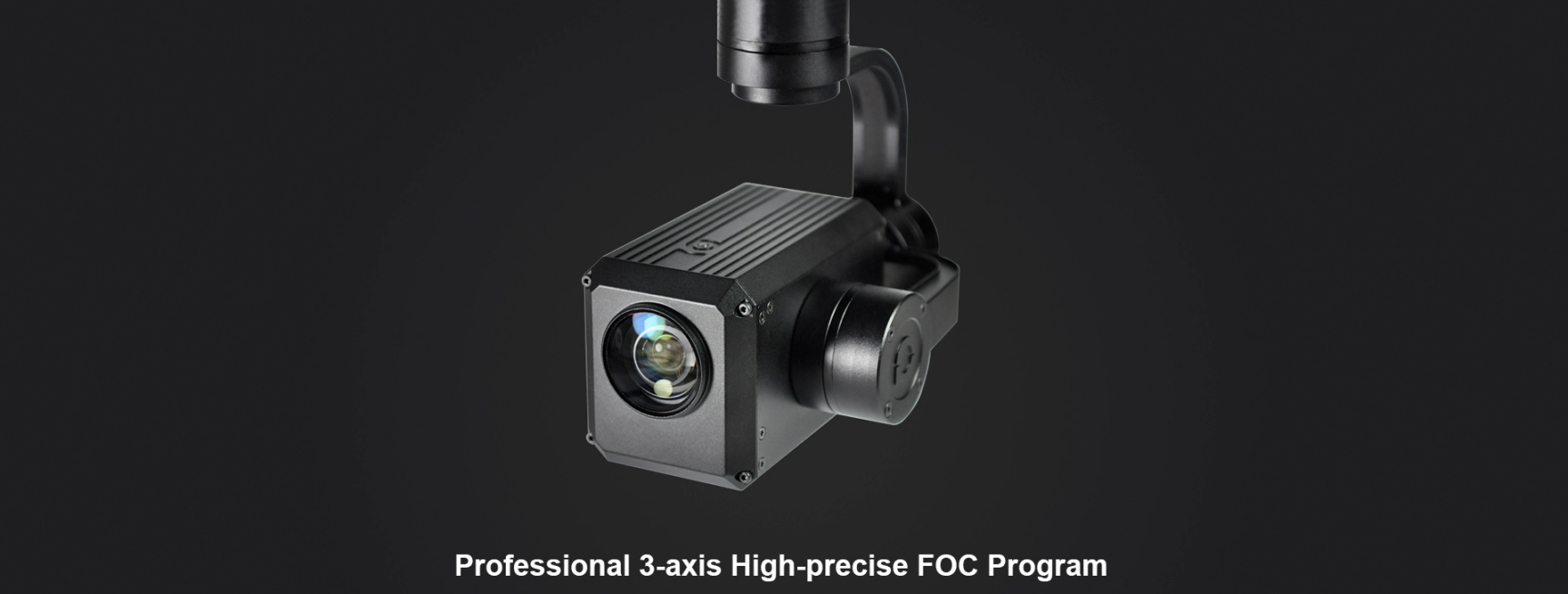

consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor.

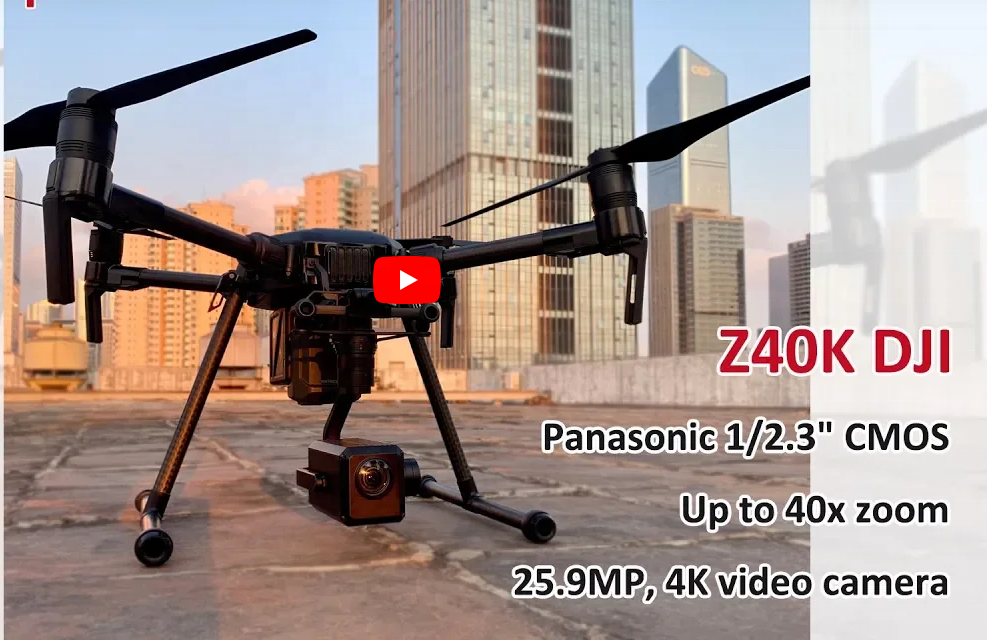

With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 25 times optical zoom. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, Z40K is engineered for inspection especially power and utility industry.


The speed of Z40K gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end,which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly.

HARDWARE PARAMETER
Working voltage
12V
Input voltage
3S ~ 6S
Output voltage
5V (connect with PWM)
Dynamic current
750mA @ 12V
Idle current
600mA @ 12V
Working environment temp.
-20℃ ~ +60℃
Output
micro HDMI(HD output 1080P 50/60fps) / IP(720P/1080P 25/30fps)
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
PWM / TTL / SBUS
GIMBAL SPECIFICATIONS
Angle scope of structure design
Pitch/Tilt: -120°~120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design
Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.02°
CAMERA SPECIFICATIONS
Imager Sensor
Panasonic 1/2.3inch CMOS
Lens
F1.8~F3.6(f=4.08~81.6mm)
Zoom
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
Total pixel
25.9MP
Record effective pixel
4k:8.29MP / FHD:6.10MP(16:9)
Picture effective pixel
25.9MP(16:9) 6784*3816
Optical Image Stabilization
5 axis Optical Image Stabilization
Video storage format
MPEG-4 (4k:3840*2160 25/30fps FHD:1080P 50/60fps)
Record shutter speed(Manual)
1/30 ~ 1/8000
Photo storage format
JPG(4K:20.4M FHD:14M)
Picture shutter speed(Manual)
1/2 ~ 1/2000
Dynamic range
65dB
Min object distance
1.5M
Viewing angle
Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
Sync system
Progressive scanning
Local video
1080P 30fps local TF card
HD output
1080P 50/60fps HDMI1.4
S/N ratio
38dB
Min illumination
Color 0.05lux@F1.6
Backlight compensation
Backlight compensation/strong light inhibition
Gain
Auto
White balance
Auto/Manual
Control system
UART/IR/PWM
Communication protocol
PELCO-D, Hitachi protocol or VISCA
Focus
Auto/Manual/One-time automatic focus
Focus speed
2s
Lens initialization
Built-in
User presetting bit
20 sets
Image rotation
180°, Horizontal/Vertical mirror image
Facial recognition
Packing Information
N.W.
550g

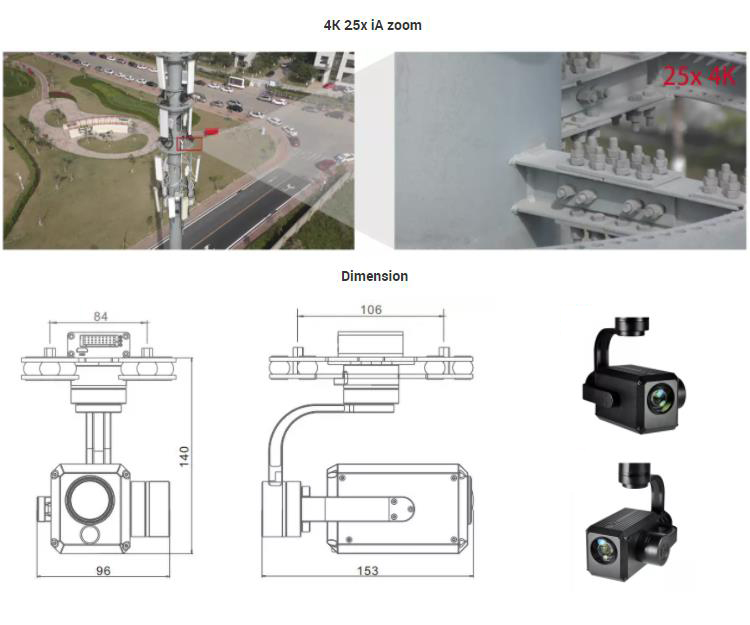

Product meas.
95.3*153.2*141.4mm
Accessories
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W.
2812g
Package meas.
360*300*250mm
