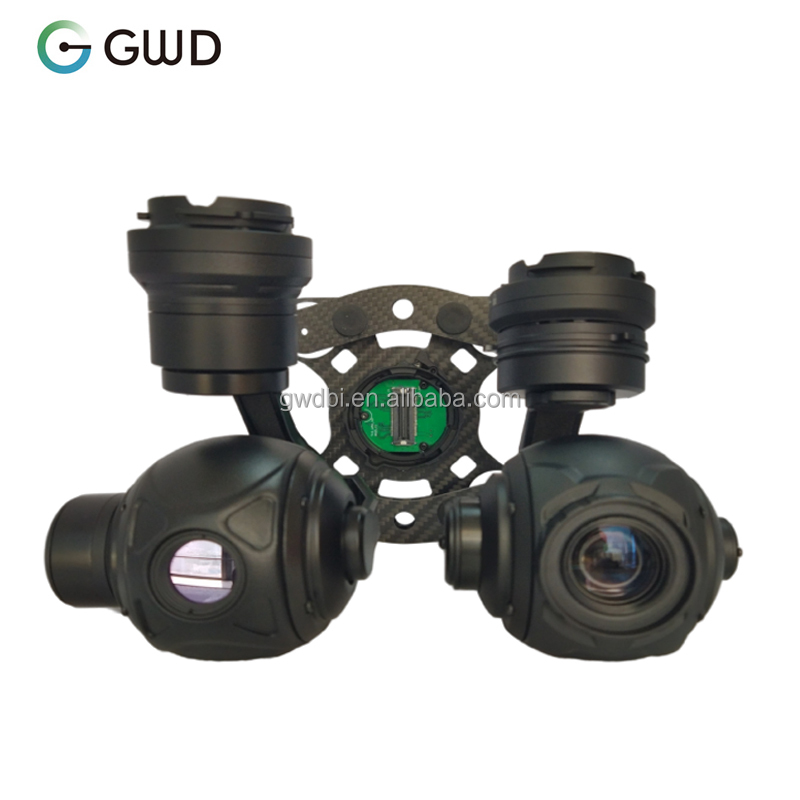

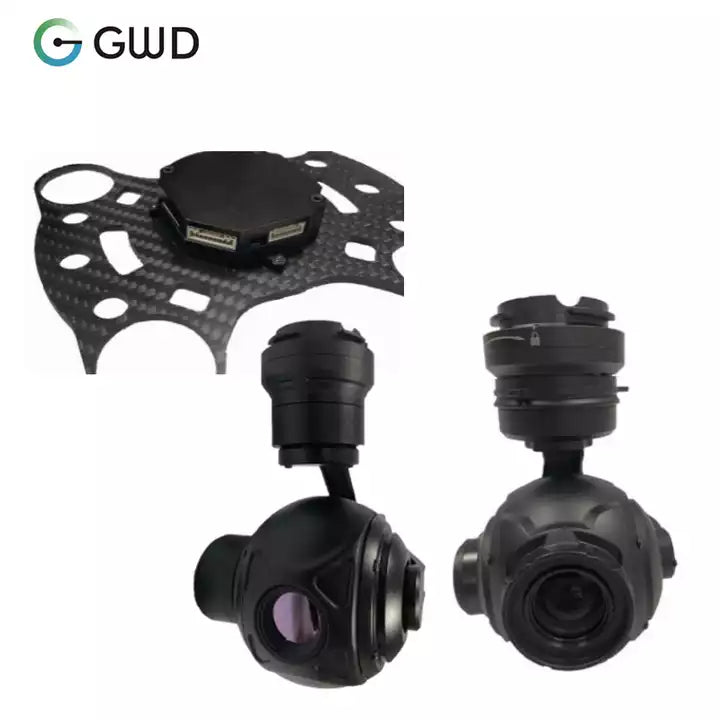

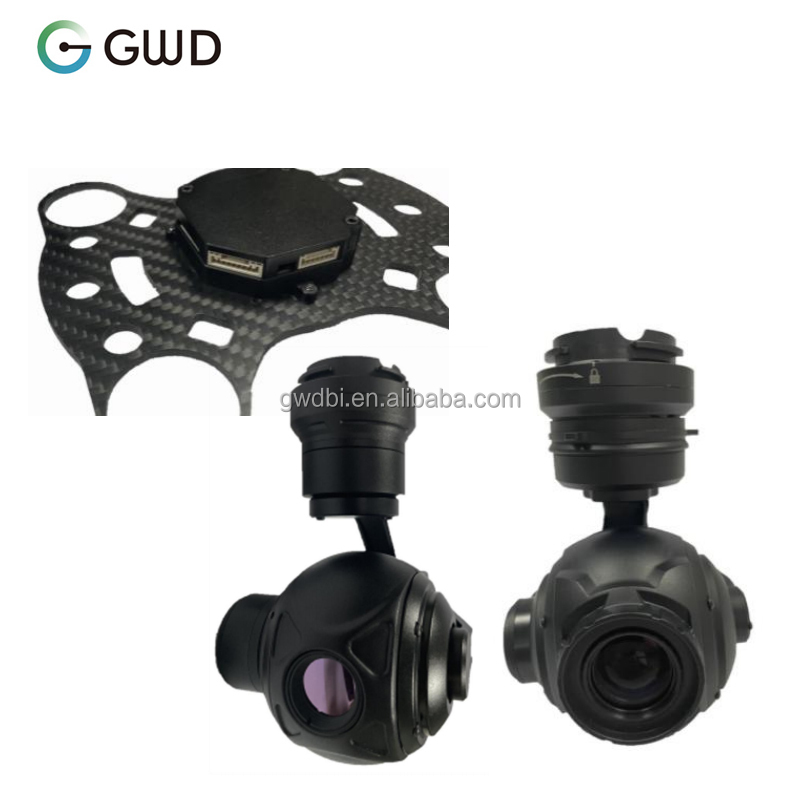

GWD-KIP10-G6 Exchangable 10x Optical Zoom Camera & 640*512 IR Single Infrared Thermal Sensor Camera Quick Release System Stabilizer
GWD-KIP10-G6 Exchangable 10x Optical Zoom Camera & 640*512 IR Single Infrared Thermal Sensor Camera Quick Release System Stabilizer
Regular price
$7,699.00
Regular price
$8,999.00
Sale price
$7,699.00
Unit price
per
Couldn't load pickup availability
Quick Details:
Lead Time:
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: |
GWD-KIP10-G6 |
| Warranty: |
1 Year |
| Special Features: |
Exchangable |
| Sensor: | CMOS |
| Style: | PTZ camera |
| Function: |
Thermal image |
| Video Compression Format: | H.265 |
| Data Storage Options: | SD Card |
| Application: | Outdoor |
| Customized support: | Online technical support, OEM, ODM |
| Product name: | Drone 10x IP Zoom Gimbal Camera |
| Resolution: |
1080P |
| Zoom: | 30x Optical |
| Use for: | For uav / drone camera |
| OEM/ODM: | Warmly Welcomed |
| Quantity(pieces) | 1 - 5 | 6 - 500 | >500 |
| Est. Time(days) | 15 | 35 | To be negotiated |
Products Description
Exchangable 10x Optical Zoom Camera & 640*512 IR Single Infrared Thermal Sensor Camera Quick Release System Stabilizer
|
Product Number
|
GWD-KIP10-G6
|
|
|
Product Name
|
Exchangable 10x Optical Zoom Camera & 640*512 IR Single Infrared Thermal Sensor Camera Quick Release
|
|
|
Voltage
|
3S(DC12V) Or 6S
|
|
|
Quick Release top
|
Weight
|
88g
|
|
External interface
|
Network, UART, power supply
|
|
|
Visible Light Pod Camera
|
CMOS Size
|
1/3 inch 4 megapixel CMOS Sensor
|
|
Optical zoom
|
10x HD optical zoom lens, F =4.9±10%~49±10%
|
|
|
Video output
|
Network output RTSP 1080 bit stream and 480P bit stream,
local -TF1080P storage |
|
|
Angle of View (FOV)
|
D: Wide 66.6 ° plus or minus 5% Tele 7.2 ° plus or minus 5%
H: Wide 53.2 ° plus or minus 5% Tele 5.3 ° plus or minus 5%
V: Wide 39.8 ° plus or minus 5% Tele 4.2 ° plus or minus 5%
|
|
|
Working mode
|
quick disassembly,
three axis increase stability |
|
|
Supported mode
|
RTSP:1080P 30fps
|
|
|
Weight
|
320 g
|
|
|
Thermal Imaging Pod Camera
|
Resolution
|
640 x 512 pixels
|
|
Pixel spacing
|
12μm
|
|
|
Type
|
uncooled focal plane microbolometer
|
|
|
Wavelength range
|
8 to 14μm
|
|
|
Thermal sensitivity (NETD)
|
≤50mk@F1.0 Contrast, false color: adjustable, a variety of false color modes
|
|
|
Field of View
|
13mm lens
|
|
|
Angle
|
32.9°x26.6°
|
|
|
Measuring function (optional)
|
center point, maximum temperature and minimum temperature display function; The global temperature
|
|
|
Working mode
|
quick disassembly, three axis increase stability
|
|
|
Weight
|
360g
|
|
|
Pitch Angle Action Range
|
90~+135° jitter ±0.02°
|
|
|
Heading Angle Action Range
|
limited bit, 350° rotation, jitter ±0.03°
|
|
|
Cradle Head Mode
|
Support one key back to center, lock/follow mode
|
|
|
Control Mode
|
speed adaptive control, network or serial port external control
|
|
|
Working Environment
|
-10℃ to +50℃ / 20% to 80% RH
|
|
|
Storage Environment
|
-20℃ to +60℃ / 20% to 95% RH
|
|
|
Main Application
|
UAV aerial photography
|
|
