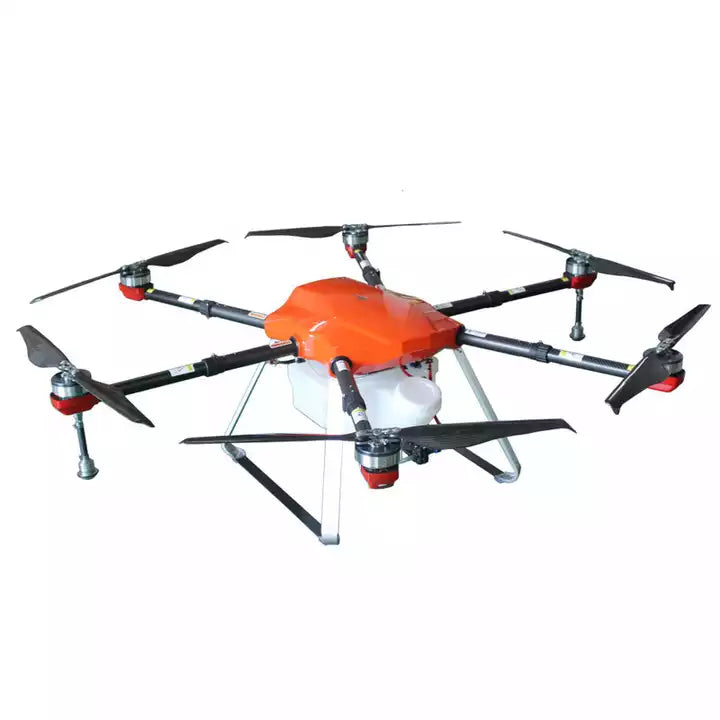

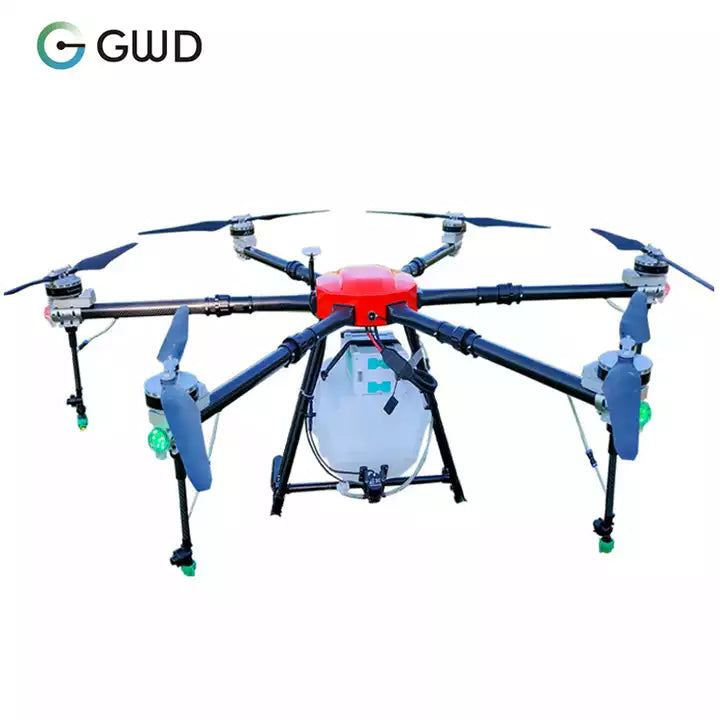

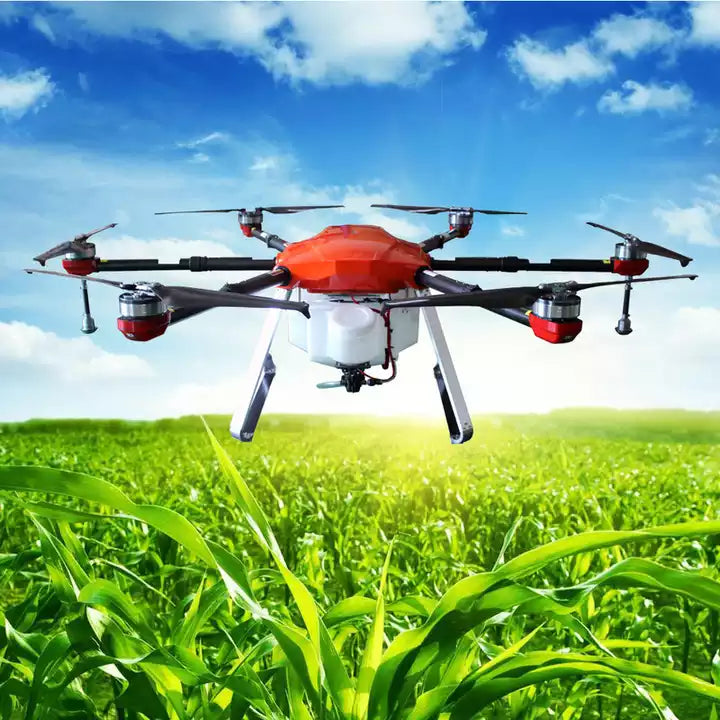

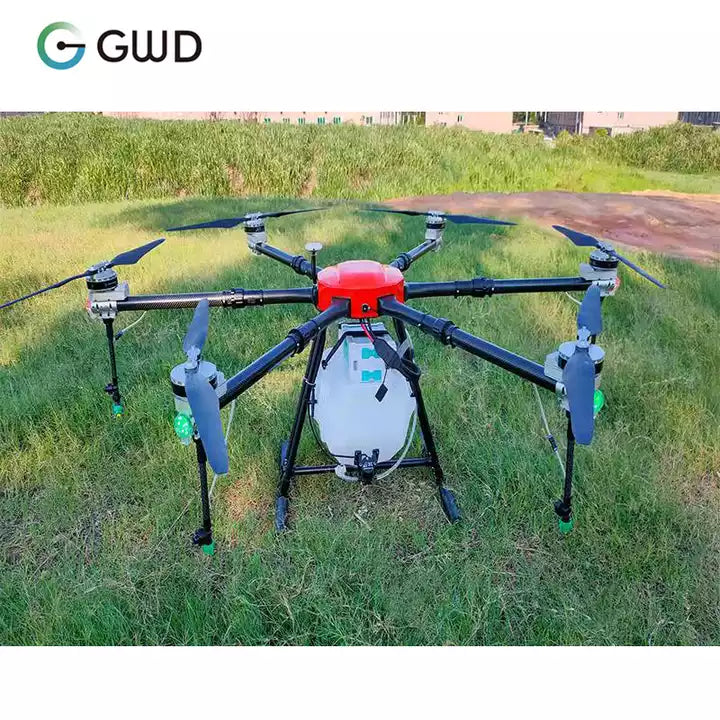

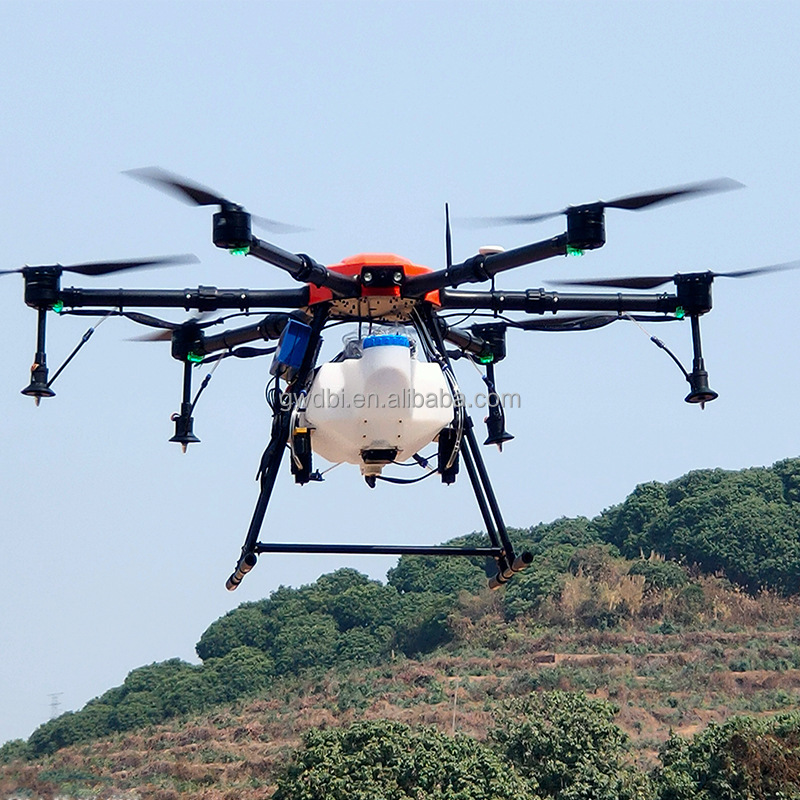

GWD-620S Farming High Load Multi Axis Remote Control 20L Multi Rotor Agricultural Big Drone 20kg Payload Agriculture Sprayer
GWD-620S Farming High Load Multi Axis Remote Control 20L Multi Rotor Agricultural Big Drone 20kg Payload Agriculture Sprayer
常规价格
$4,957.00
常规价格
促销价
$4,957.00
单价
/
单价
无法加载取货服务可用情况
Lead Time:
Quantity(pieces) | 1 - 10 | 11 - 200 | >200 |
Est. Time(days) | 15 | 35 | To be negotiated |
Products Description
Model Number
|
GWD-620S
|
Name
|
Agricultural Drone
|
Diagonal Wheelbase (mm)
|
1700mm
|

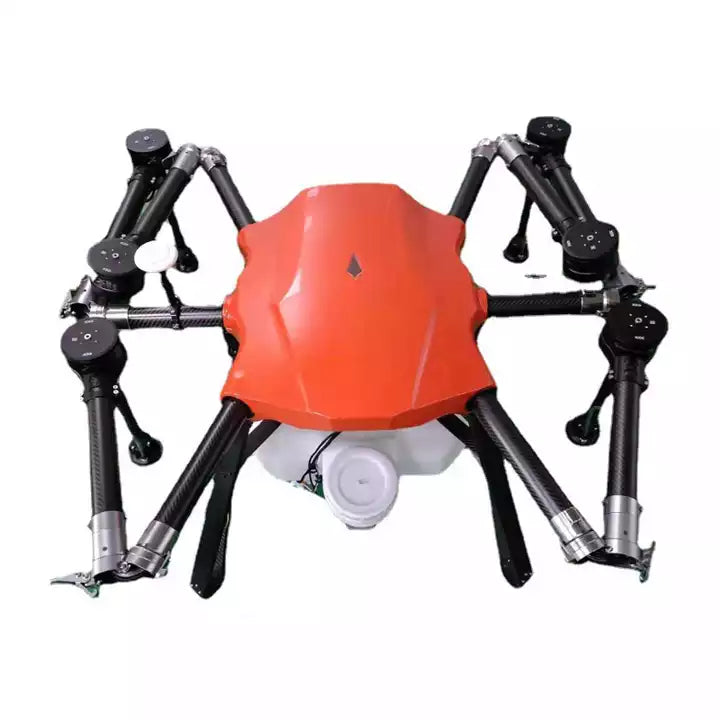

Folded Size (mm)
|
870*870*750mm
|
Spreaded Size
|
2350*2350*750mm
|
Operation Power
|
44.4V(12S)
|
Weight
|
20KG , Battery:6.3KG
|
Loading
|
20KG
|
Flight Speed
|
3 - 8 M/S
|
Spray Width
|
3 - 6 M/S
|
Max. Takeoff Weight
|
48KG
|
Flight Control systems
|
V7-AG
|
Dynamic System
|
X8
|
Spraying System
|
Pressure Spray
|
Water Pump Pressure
|
0.8mPa
|
Spraying Flow
|
1.5 - 3 KG/Min (Max. 4KG/Min)
|
Flight Time
|
Empty Tank:20-25Min , Full Tank:7-10Min
|
Operational
|
2-3 Acres/Min
|
Power Battery
|
14S 20000mah
|
Charging Time
|
0.5-1hour
|
Recharge Cycles
|
300-500 times
|
Daily efficiency(6hours)
|
300-900acres
|
Packing Box
|
Flight Case 117*102* 91CM
|
Farming High Load Multi Axis Remote Control 20L Multi Rotor Agricultural Big Drone Agriculture Sprayer





Functional Features :
a. Android ground station, easy to use / PC ground station, full voice broadcast.
b. Router Setting support, Fully Auto Flight operation with A,B Point operation.
c. One Button take-off and landing, More safety and time saving.
d. Continue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
e. Liquid Detection, Break Point record setting.
f. Battery Detection, Low battery return and Record point setting available.
g. Height Control Radar, Stable Altitude setting, Supporting Imitative Earth function.
h. Flying Layout setting available.
i. Vibration Protection, Lost Connect protective, Drug Cut protection.
j. Motor Sequence Detection and Direction detection Function.
k. Dual Pump Mode.
l. Cam Recorder, Real-time transmission available.
m. Ascent or Descent according to Terrain Imitative Earth.
n. Obstacle avoidance Function, Surrounding Obstacles detection.
o. Seed Sowing function, Additional seed Spreader, or etc.
p. RTK Precise Positioning.
b. Router Setting support, Fully Auto Flight operation with A,B Point operation.
c. One Button take-off and landing, More safety and time saving.
d. Continue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
e. Liquid Detection, Break Point record setting.
f. Battery Detection, Low battery return and Record point setting available.
g. Height Control Radar, Stable Altitude setting, Supporting Imitative Earth function.
h. Flying Layout setting available.
i. Vibration Protection, Lost Connect protective, Drug Cut protection.
j. Motor Sequence Detection and Direction detection Function.
k. Dual Pump Mode.
l. Cam Recorder, Real-time transmission available.
m. Ascent or Descent according to Terrain Imitative Earth.
n. Obstacle avoidance Function, Surrounding Obstacles detection.
o. Seed Sowing function, Additional seed Spreader, or etc.
p. RTK Precise Positioning.
