30X Optical Zoom IR Payload 3 Axis Stabilized Object GPS Coordinate Resolving LRF Gimbal Camera For Drone
A30TR

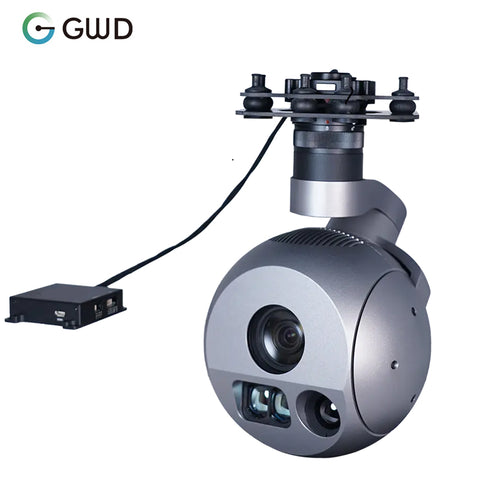

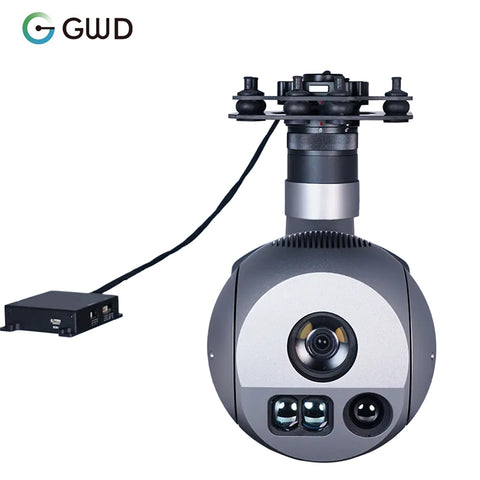

A30TR is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera, a 640x512 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 19mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, this information will display on screen automatically.
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 6S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
750mA @ 12V
|
|
Idle current
|
550mA @ 12V
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps)
|
|
Local-storage
|
SD card (Up to 128G,class 10, FAT32 or ex FAT format)
|
|
Control method
|
PWM / TTL / S.BUS/ TCP (IP output version)
|
|
Gimbal Spec
|
|
|
Angle scope of structure design
|
Pitch/Tilt: -100°～120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
|
|
Angle scope of software design
|
Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw：±0.02°
|
|
One-key to center
|
√
|
|
Camera Spec
|
|
|
Imager Sensor
|
SONY 1/2.8" "Exmor R" CMOS
|
|
Picture quality
|
Full HD 1080 (1920*1080)
|
|
Effective pixel
|
2.13MP
|
|
Photo storage format
|
JPG(1920*1080)
|
|
Video storage format
|
MP4 (1080P/720P 25fps/30fps)
|
|
Lens optical zoom
|
30x, F=4.3~129mm
|
|
Digital zoom
|
12x (360x with optical zoom)
|
|
Min object distance
|
10mm(wide end) to 1200mm(tele end). Default 300mm
|
|
Horizontal viewing angle
|
1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
|
|
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
|
|
|
SD: 47.8°(wide end) ~ 1.7°(tele end)
|
|
|
Sync system
|
Internal
|
|
S/N ratio
|
more than 50dB
|
|
Min illumination
|
Color 0.01lux@F1.6
|
|
Exposure control
|
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
|
|
Gain
|
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
|
White balance
|
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto) |
|
Shutter speed
|
1/1s to 1/10,000s, 22 steps
|
|
Backlight compensation
|
Yes
|
|
Aperture control
|
16 steps
|
|
Defog
|
Yes
|
|
OSD
|
Yes
|
|
Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
5ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|
Packing Information
|
|
|
N.W.
|
1100g
|
|
Product meas.
|
121.5*166.5*130mm
|
|
Accessories
|
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
|
|
G.W.
|
3058g
|
|
Package meas.
|
360*300*250mm
|
