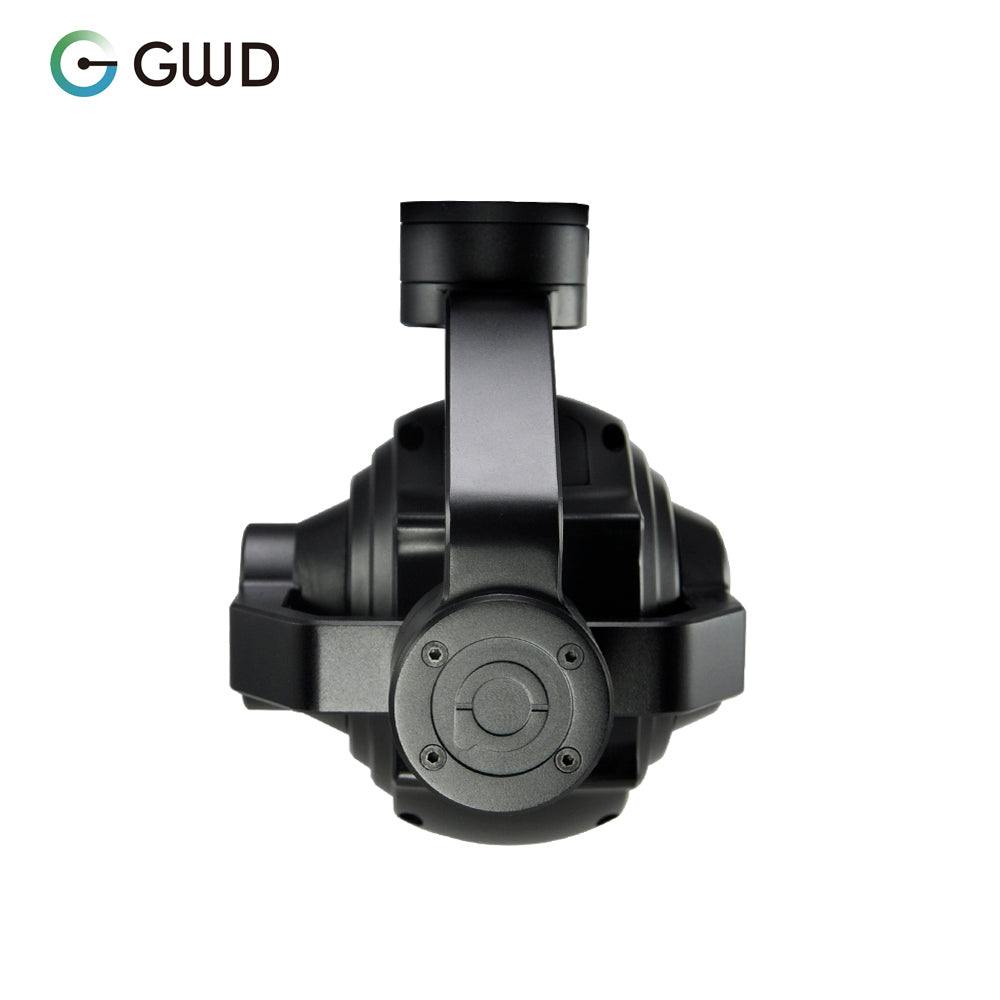

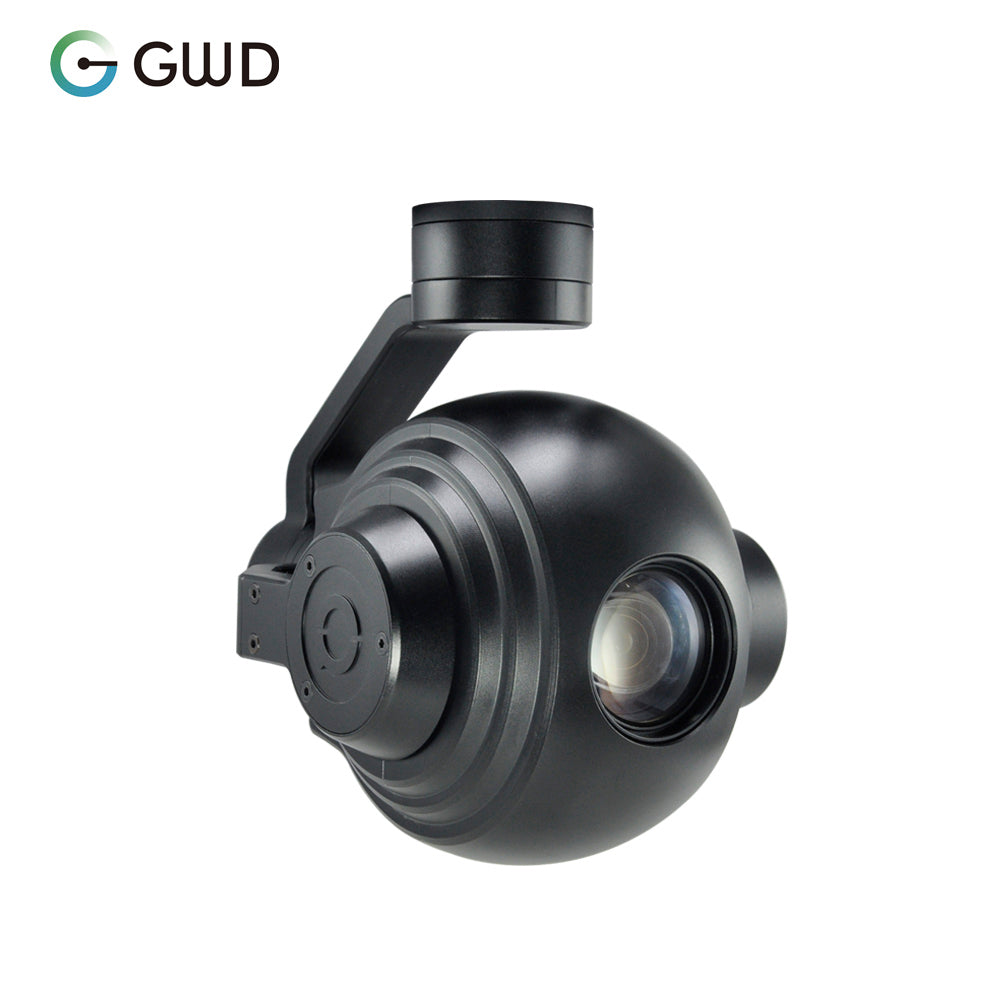

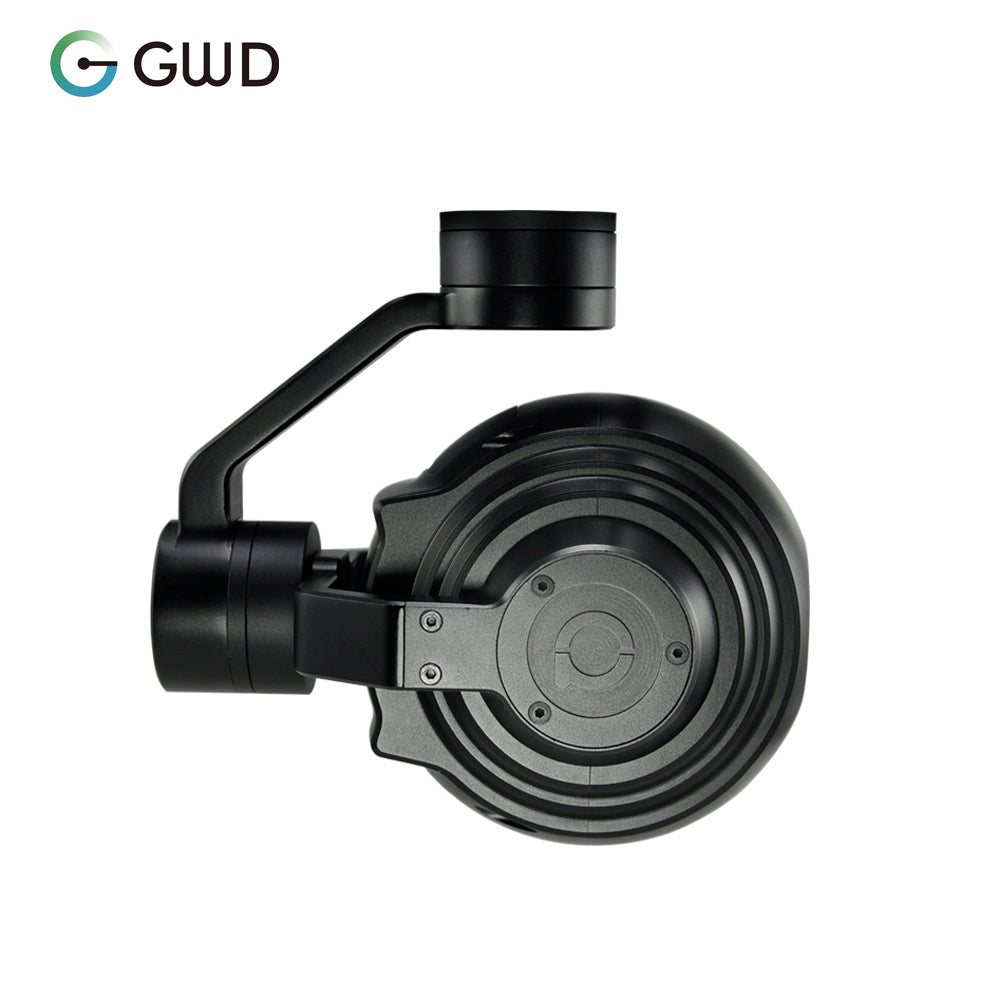

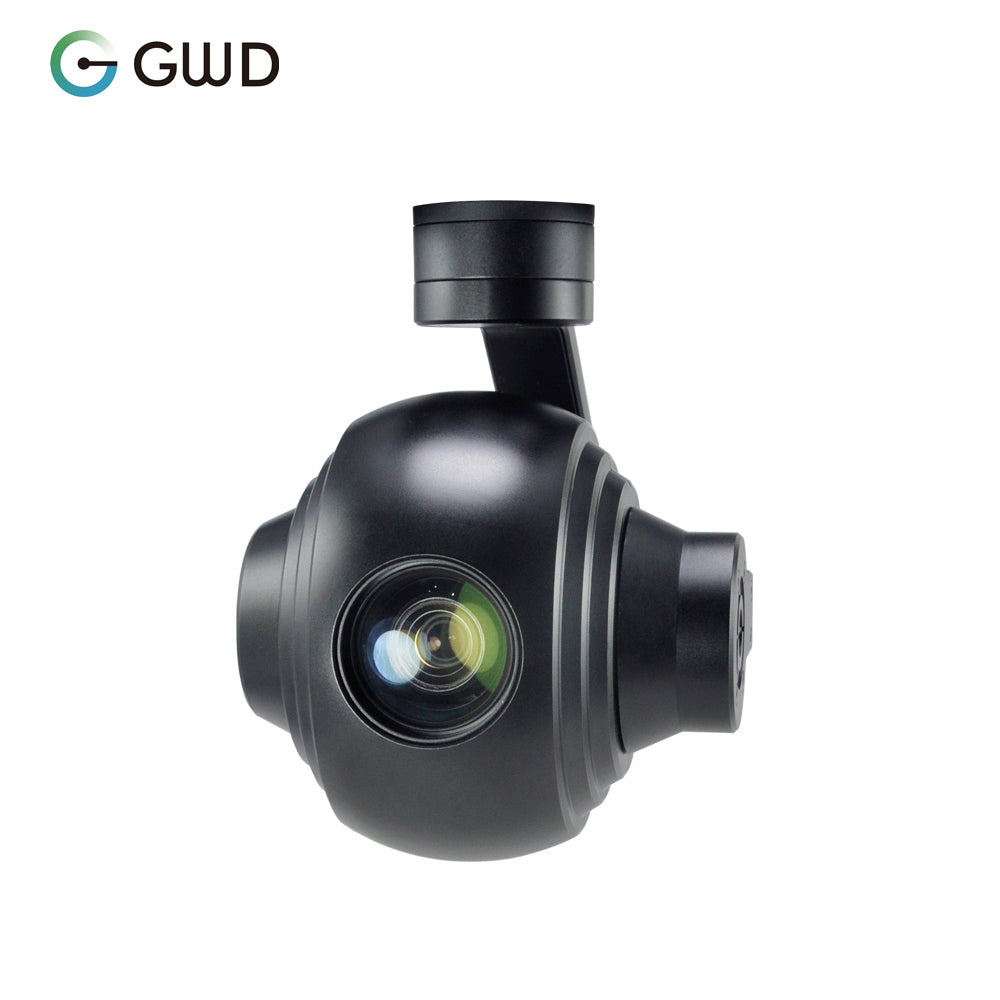

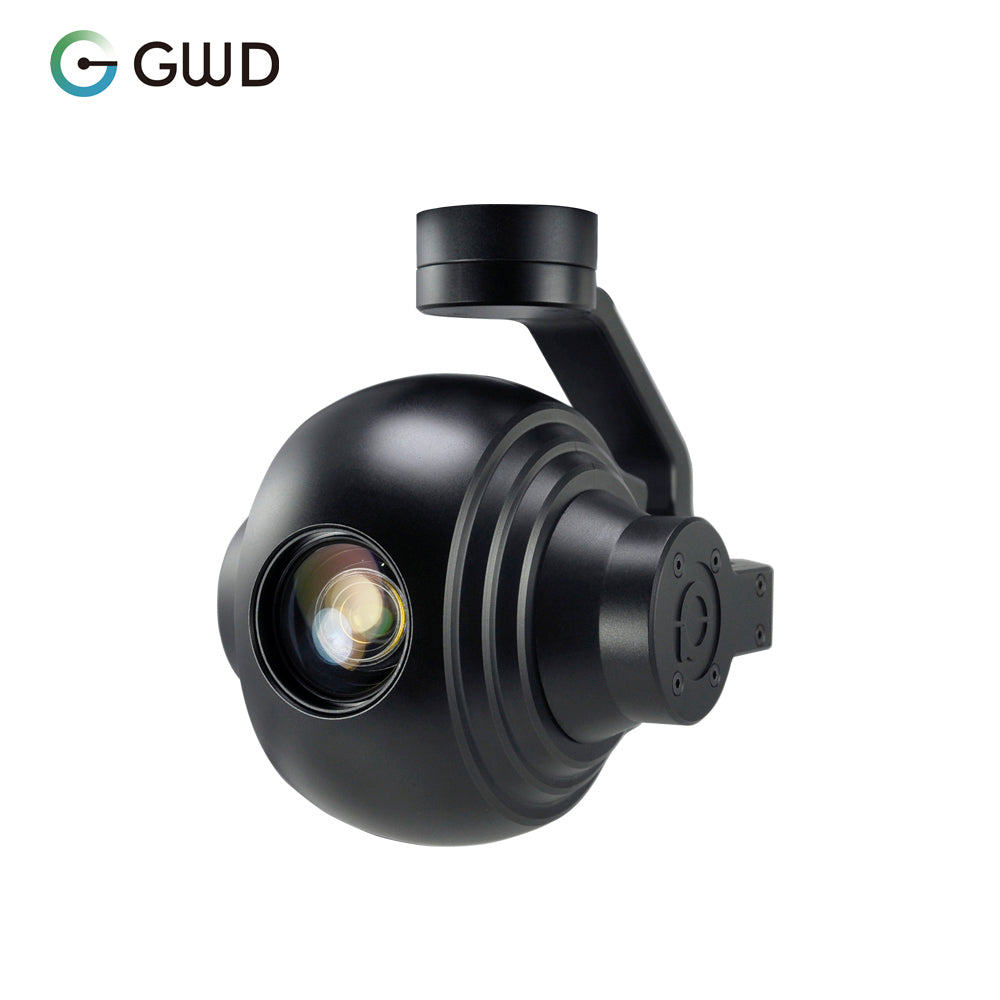

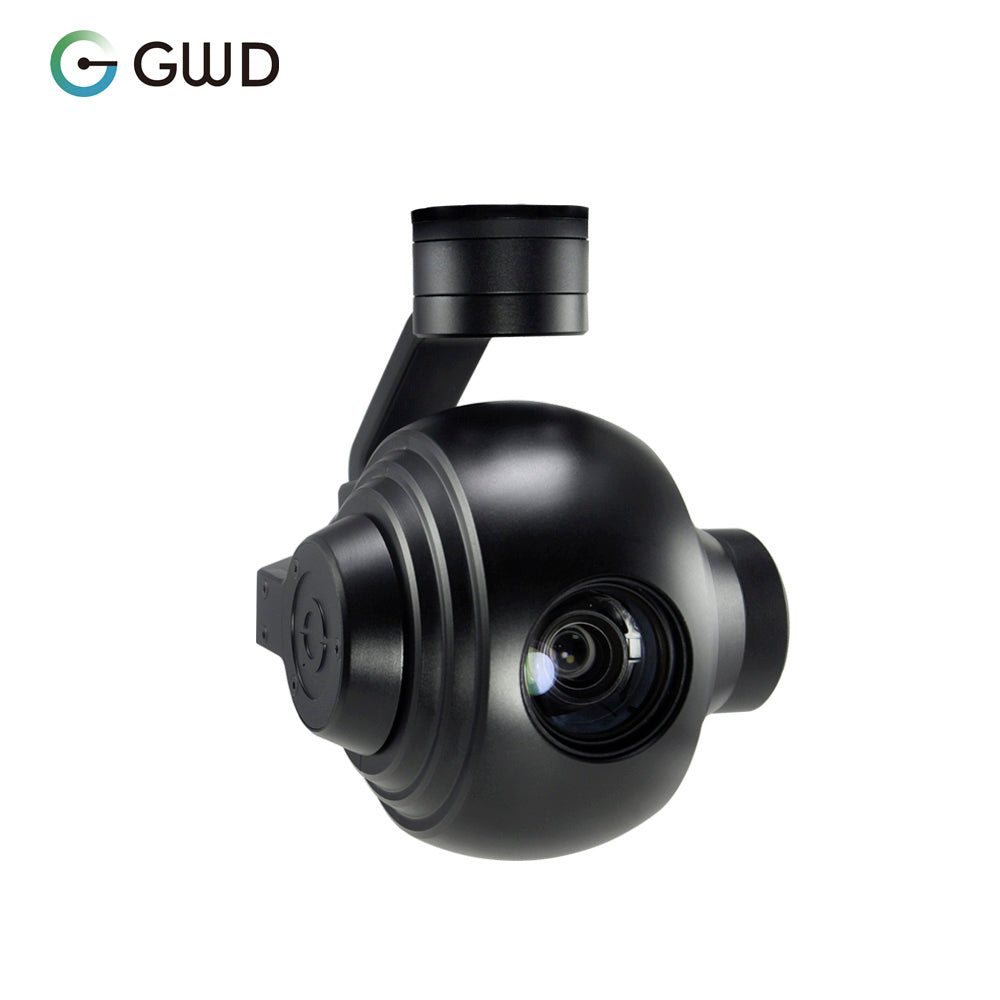

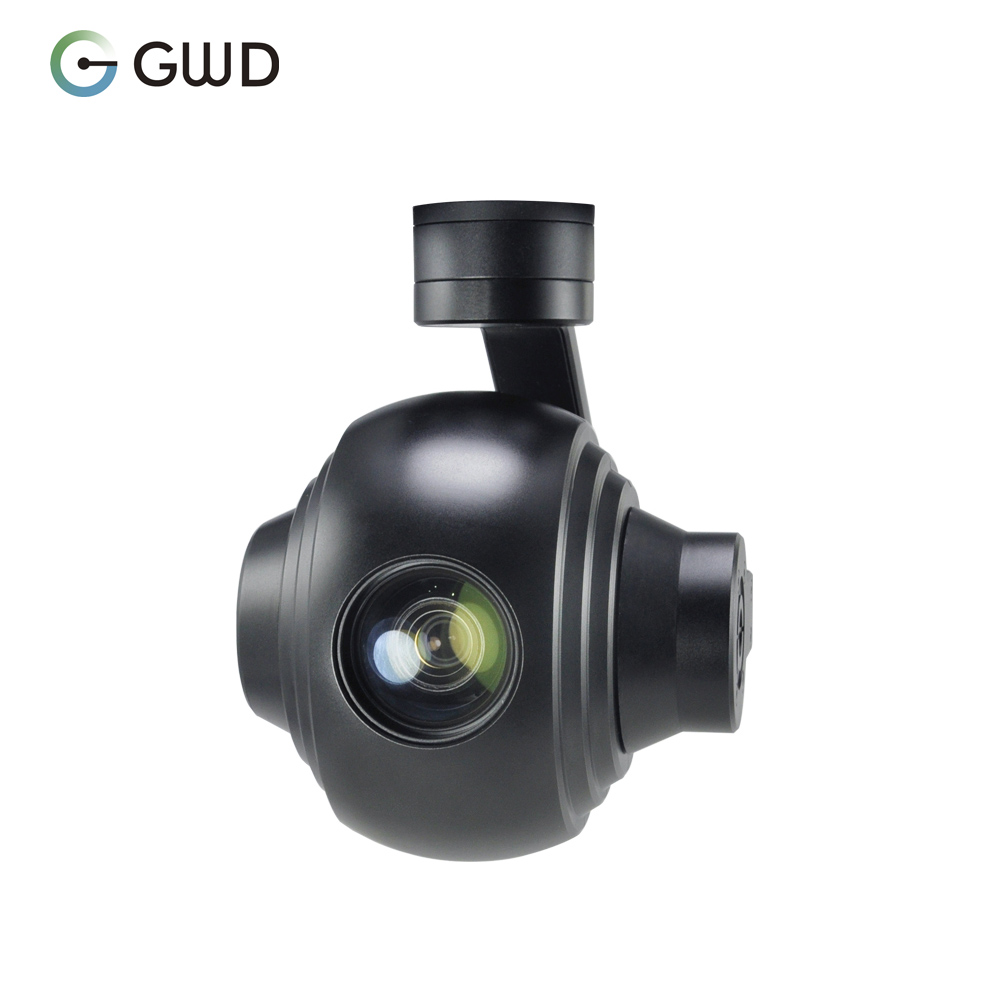

GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera
GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera
GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera
GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera
GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera
GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera

GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera

Regular price$2,799.00
/

  • Free worldwide shipping
  • In stock, ready to ship
  • Inventory on the way
Quick Details
Place of Origin: Guangdong, China
Brand Name: GWD
Model Number: GWD-Q10T
Warranty: 1 Year
Special Features: Human Motion Tracking, Motion Detection
Sensor: CMOS
Style: Mini camera
Function: RESET, Wide Angle
Video Compression Format: H.264
Data Storage Options: Micro SD card, SD Card
Application: Outdoor, Indoor
Customized support: Online technical support, Customized logo, Software reengineering, OEM, ODM
Product name: Professional drone tracking camera
Working voltage: 12v
Input voltage: 3S ~ 4S
Working environment temp: -20℃ ~ +50℃
Output: micro HDMI(HD output 1080P 60fps) / IP
Local-storage: SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method: PWM / TTL / S.BUS
Use for: For uav / drone camera
OEM/ODM: Warmly Welcomed
Lead time:
Quantity(pieces) 1 - 5 6 - 500 >500
Est. time (days) 15 35 To be negotiated
Products Description
GWD-Q10T Ethernet Output TCP Control 1080p High Range Sports UAV Zoom Gimbal Camera 3 Axis Drone Object Auto Tracking Camera

Product Features
1)Object tracking and Geo tagging 2)Metal casing - high anti-interference, cooling easily 3) Open source autopilot compatible - Pixhawk & PX4 4)TCP control software "Viewlink" with Ethernet output

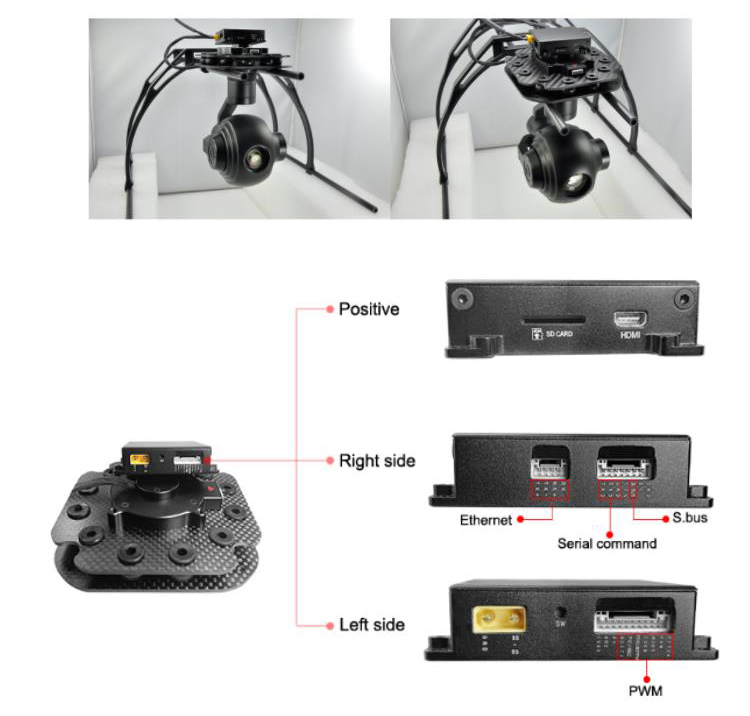

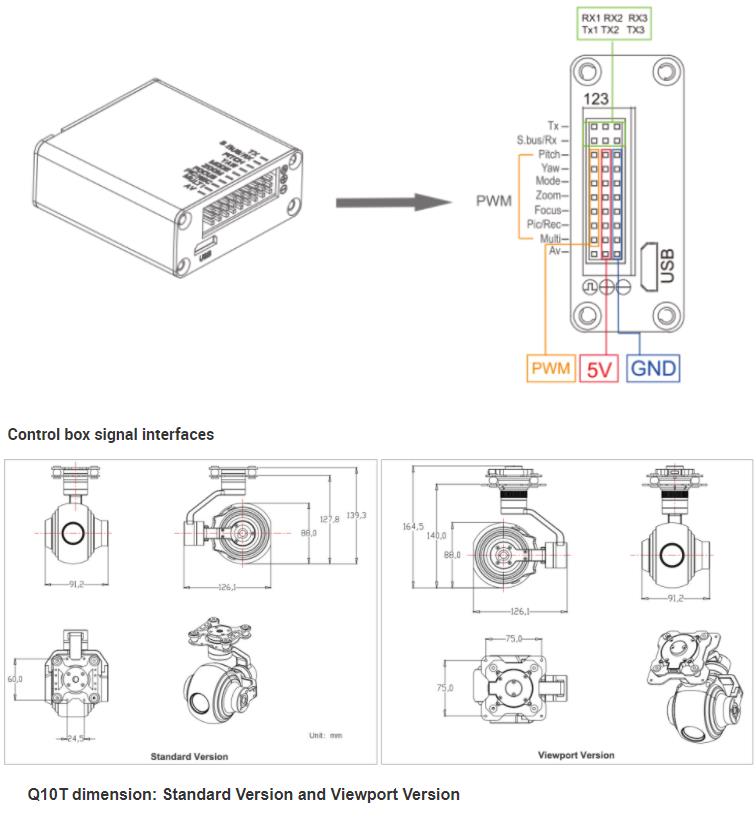

GWD-Q10T is compatible with quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Hardware Parameter
Working voltage
12V
Input voltage
3S ~ 4S
Output voltage
5V (connect with PWM)
Dynamic current
320mA @ 12V
Idle current
240mA @ 12V
Power consumption
≤ 3.85W
Working environment temp.
-20℃ ~ +50℃
Output
micro HDMI(HD output 1080P 60fps/30fps) / IP
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
PWM / TTL /SBUS / TCP
Gimbal Spec
Pitch/Tilt
±90°
Roll
±45°
Yaw/Pan
±300°
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center
Camera Spec
Imager Sensor
1/3inch CMOS
Total pixel
2.13MP
Picture quality
Full HD 1080 (1920*1080)
Dynamic range
65dB
Lens
5MP
Optical zoom
10x, F=4.9~49mm
Min object distance
1.5M
Viewing angle
Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
Sync system
Progressive scanning
Local video
1080P 30fps local TF card
HD output
1080P/720/480P 60fps HDMI1.4
AV output
Standard CVBS 1Vp-p
S/N ratio
38dB
Min illumination
Color 0.05lux@F1.6
Backlight compensation
Backlight compensation/strong light inhibition
Gain
Auto
White balance
Auto/Manual
Shutter speed
Auto
Control system
UART/IR/PWM
Communication protocol
PELCO-D, Hitachi protocol or VISCA
Focus
Auto/Manual/One-time automatic focus
Focus speed
2s
Lens initialization
Built-in
User presetting bit
20 sets
Image rotation
180°, Horizontal/Vertical mirror image
OSD
Yes
Camera Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<15ms
Minimum object contrast
5%
SNR
4
Minimum object size
16*16 pixel
Maximum object size
160*160 pixel
Tracking speed
±32 pixel/frame
Object memory time
4s
The mean square root values of pulse noise in the object position
< 0.5 pixel
Packing Information
N.W.
550g
Product meas.
140*91.2*126.1mm
Accessories
1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion
G.W.
850g
Package meas.
152*121*167mm
