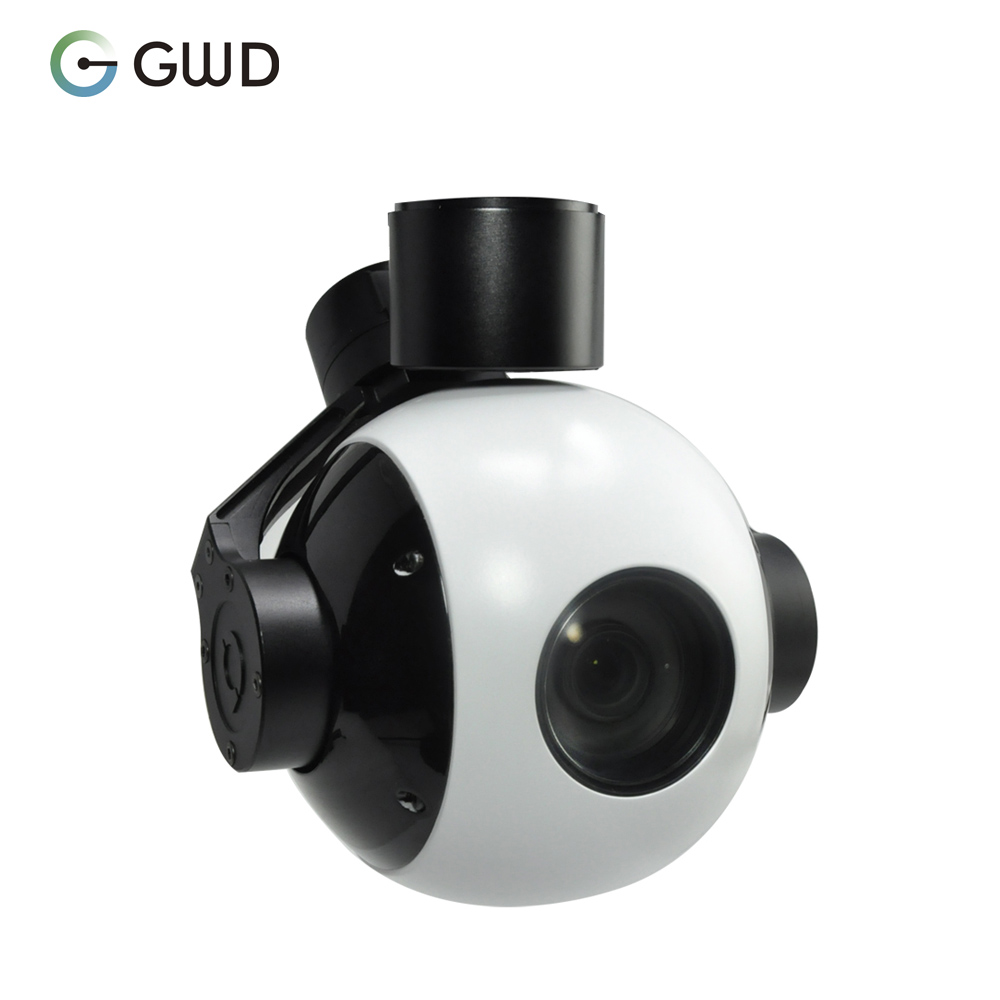

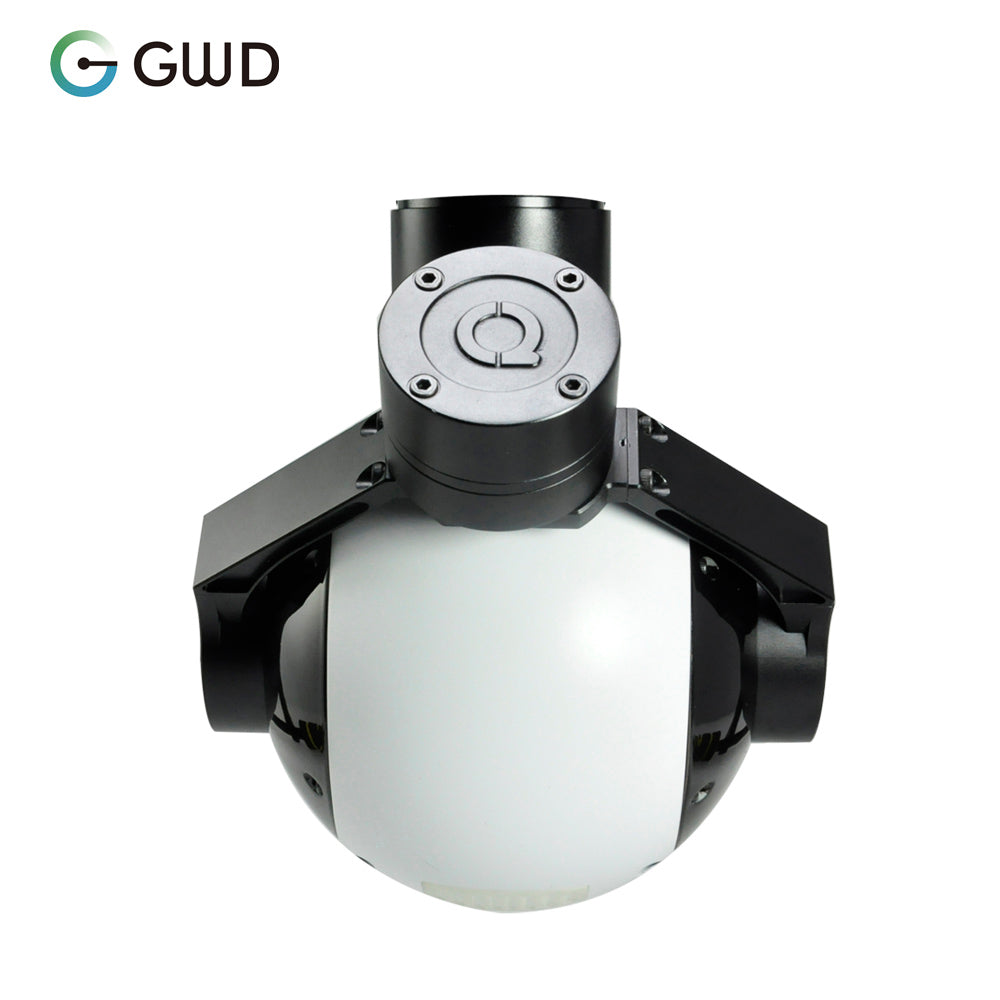

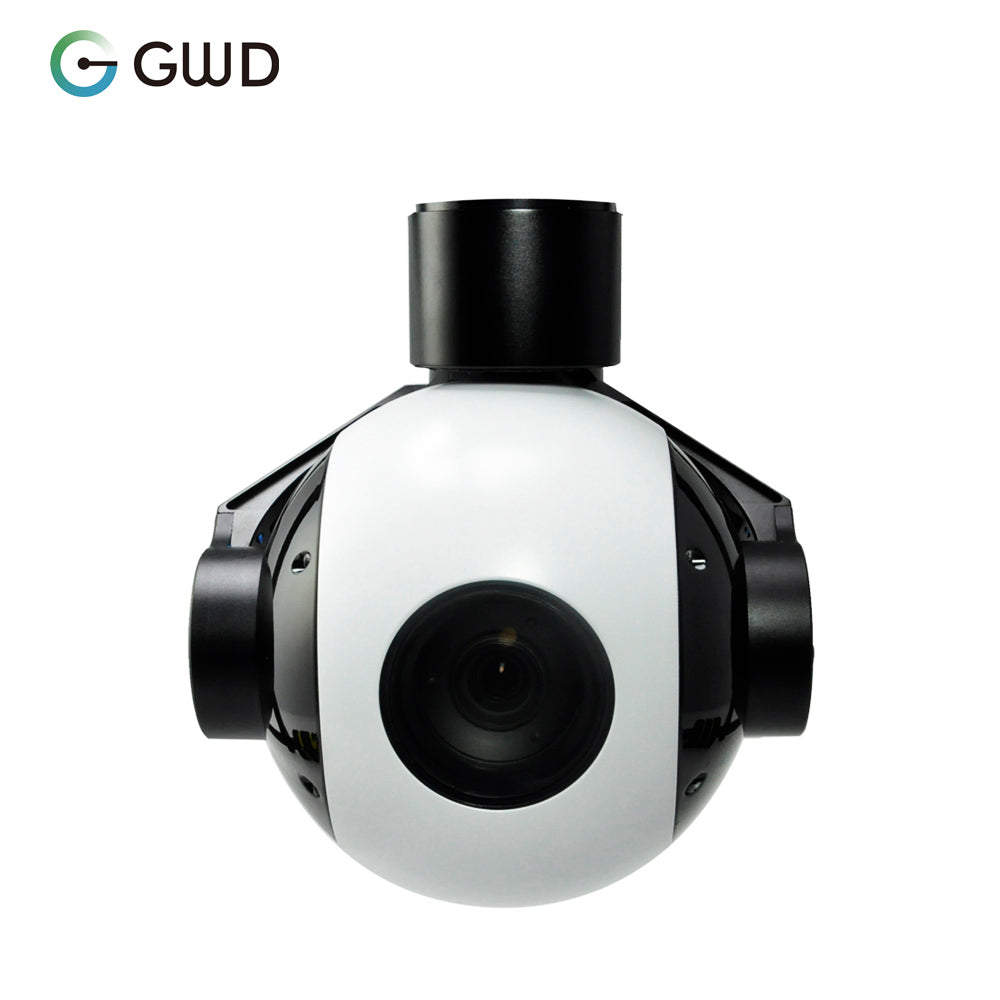

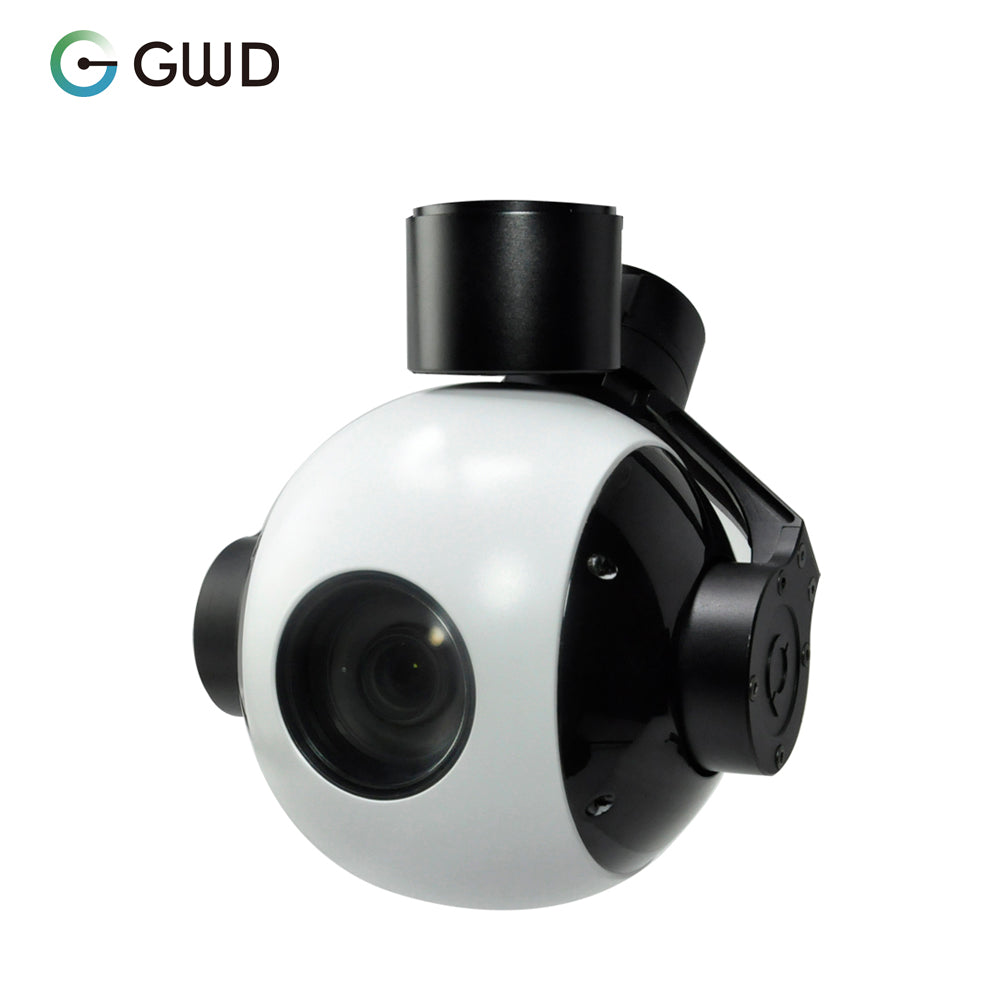

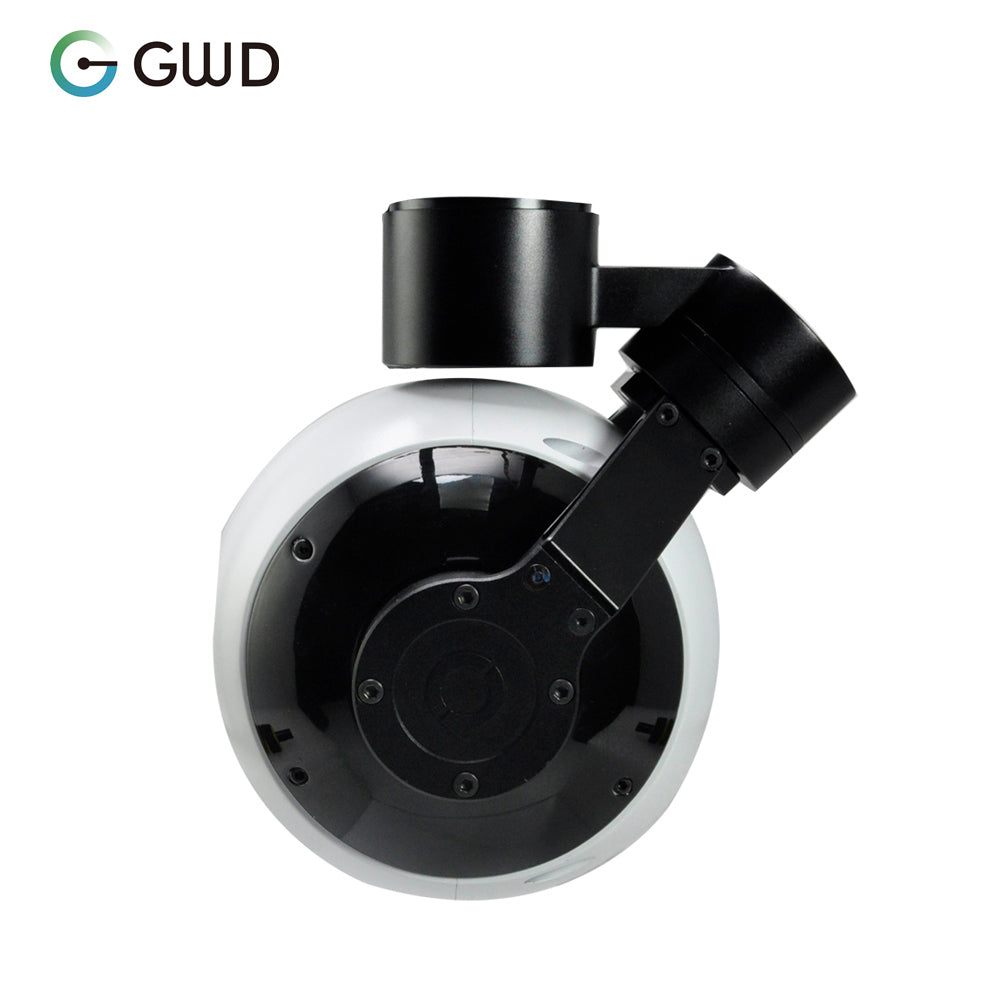

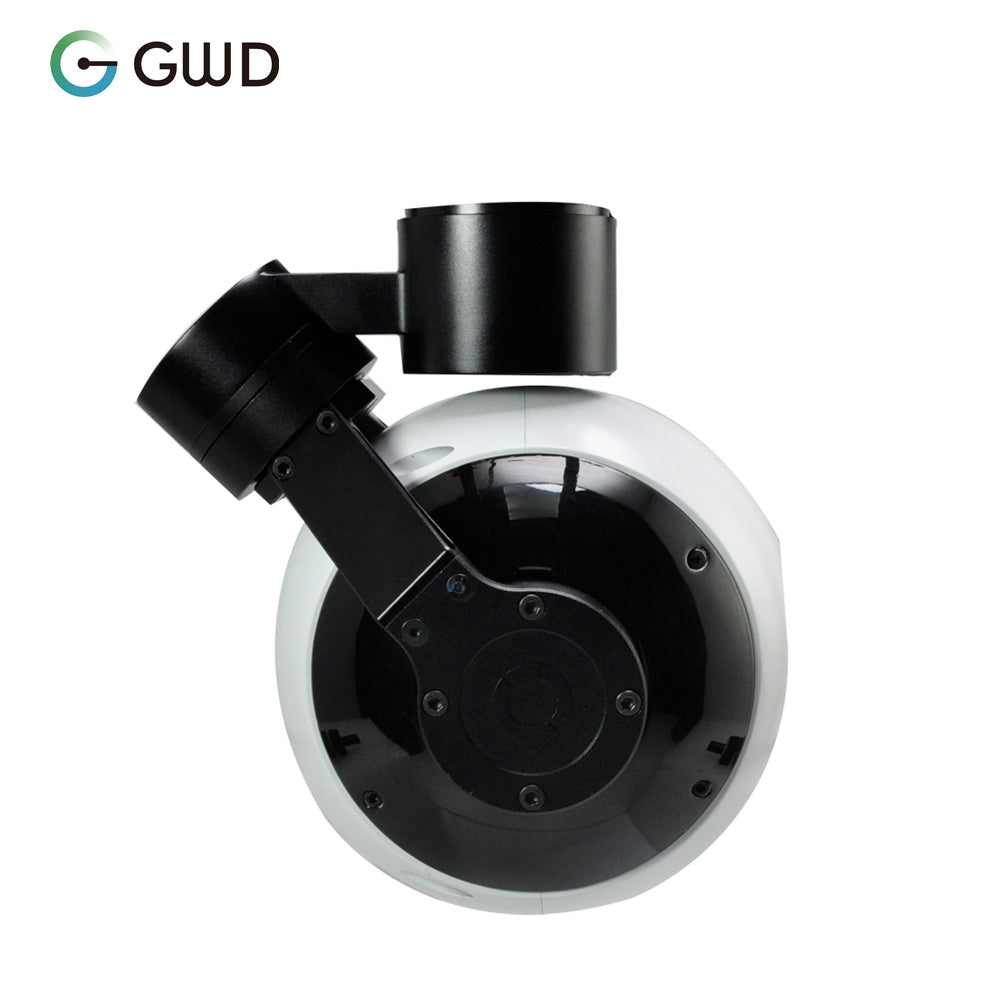

GWD-Q30T Pro 30X Optical 3-axis Gimbal Zoom Surveillance Camera with for Surveillance Or Rescue
GWD-Q30T Pro 30X Optical 3-axis Gimbal Zoom Surveillance Camera with for Surveillance Or Rescue
Regular price
$4,999.00
Regular price
Sale price
$4,999.00
Unit price
per
Couldn't load pickup availability
Quick Details
Lead time:
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: | GWD-Q30T Pro |
| Warranty: | 1 Year |
| Special Features: | Human Motion Tracking, Motion Detection |
| Sensor: | CMOS |
| Style: | Mini camera |
| Function: | RESET, Wide Angle |
| Video Compression Format: | H.264 |
| Data Storage Options: | Micro SD card, SD Card |
| Application: | Outdoor, Indoor |
| Customized support: | Online technical support, Customized logo, Software reengineering, OEM, ODM |
| Product name: | Professional drone tracking camera |
| Pitch/Tilt: | -45°~90° |
| Roll: | ±27° |
| Yaw/Pan: | ±290° / ±360°*N (IP / SDI output version) |
| Output delay of deviation pixel: | <15ms |
| Use for: | For uav / drone camera |
| OEM/ODM: | Warmly Welcomed |
| Quantity(pieces) | 1 - 5 | 6 - 500 | >500 |
| Est. time (days) | 15 | 35 | To be negotiated |
Products Description
GWD-Q30T Pro 30X Optical 3-axis Gimbal Zoom Surveillance Camera with for Surveillance Or Rescue Applicable To Drones
Product Features
Stabilizing the GWD-Q30 pro is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02°powered by a dedicated processor. Q30 pro uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 300°rotation remains possible through gimbal rotation.
Stable, smooth footage image can be captured even when flying at high speed flight.The camera has 2.13 Mega effective pixesl supports 30x optical autofocus, and possess HD 1080p video,fast auto-focus speed ,small size,designed for UAV aerial photography.
Stable, smooth footage image can be captured even when flying at high speed flight.The camera has 2.13 Mega effective pixesl supports 30x optical autofocus, and possess HD 1080p video,fast auto-focus speed ,small size,designed for UAV aerial photography.
|
Gimbal spec
|
|
|
Pitch/Tilt
|
-45°～90°
|
|
Roll
|
±27°
|
|
Yaw/Pan
|
±290° / ±360°*N (IP / SDI output version)
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw:±0.02°
|
|
Camera spec
|
|
|
Imager Sensor
|
1/3inch CMOS
|
|
Total pixel
|
2.13MP
|
|
Optical zoom
|
30x, F=4.7~129mm
|
|
Min object distance
|
1.5M
|
|
Viewing angle
|
Horizontal: 54.8°(Wide end) ~ 3.4°(Tele end)
Vertical: 41°(wide end) ~ 2.5°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
|
|
Focus speed
|
2s
|
|
Camera Object Tracking (Optional)
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<15ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Object size range
|
16*16 pixel ~ 160*160 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
4s
|
|
Packing Information
|
|
|
Packing
|
1 unit/ Plastic box with foam protection
|
|
G.W.
|
3058g
|
|
Package Size
|
360*300*250mm
|
