GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone
GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone
GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone
GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone
GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone

GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone

Regular price$5,599.00
/

  • Free worldwide shipping
  • In stock, ready to ship
  • Inventory on the way
Quick Details
Place of Origin: Guangdong, China
Brand Name: GWD
Model Number: GWD-U30T
Warranty: 1 Year
Special Features: Human Motion Tracking, Motion Detection
Sensor: CMOS
Style: Mini camera
Function: RESET, Wide Angle
Video Compression Format: H.264
Data Storage Options: Micro SD card, SD Card
Application: Outdoor, Indoor
Customized support: Online technical support, Customized logo, Software reengineering, OEM, ODM
Product name: Professional drone tracking camera
Working voltage: 12v
Input voltage: 4S ~ 6S
Working environment temp: -20℃ ~ +80℃
Output: micro HDMI(HD output 1080P 60fps)
Local-storage: SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method: PWM / TTL / S.BUS
Use for: For uav / drone camera
OEM/ODM: Warmly Welcomed
Lead time:
Quantity(pieces) 1 - 5 6 - 500 >500
Est. time (days) 15 35 To be negotiated
Products Description

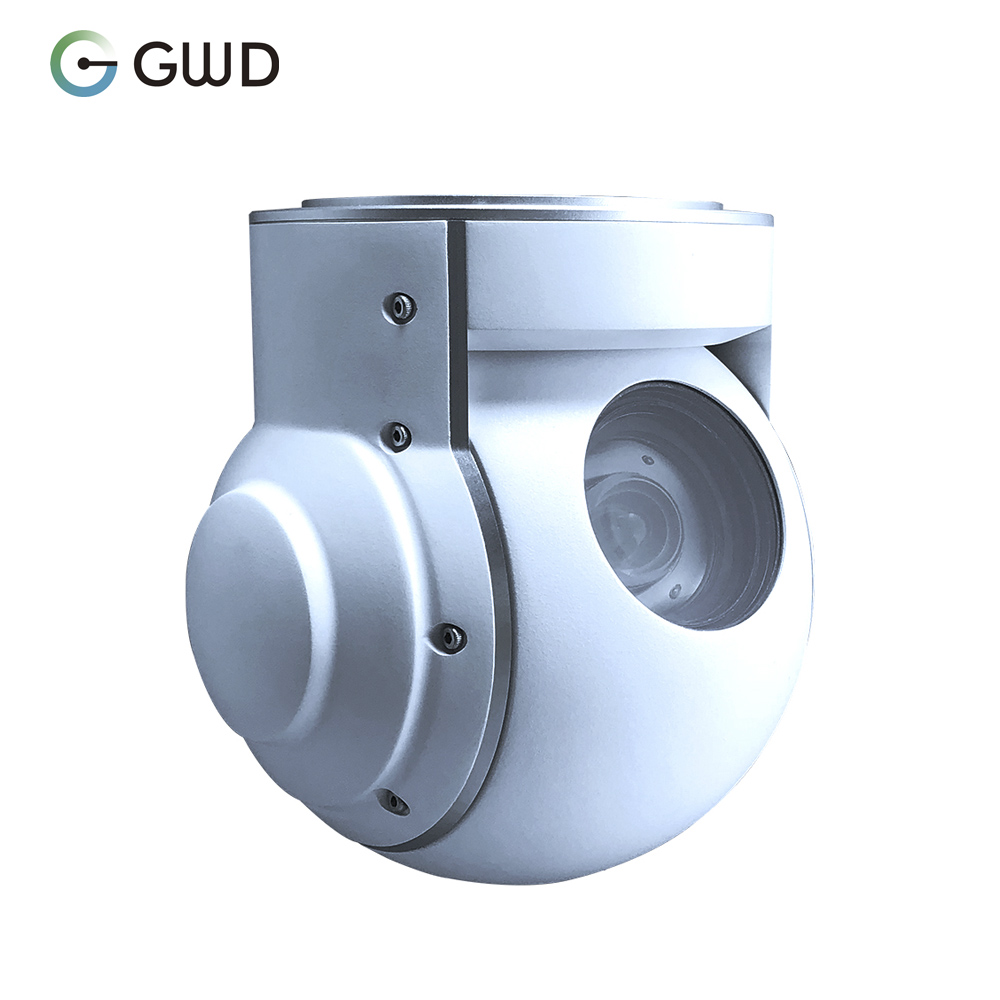

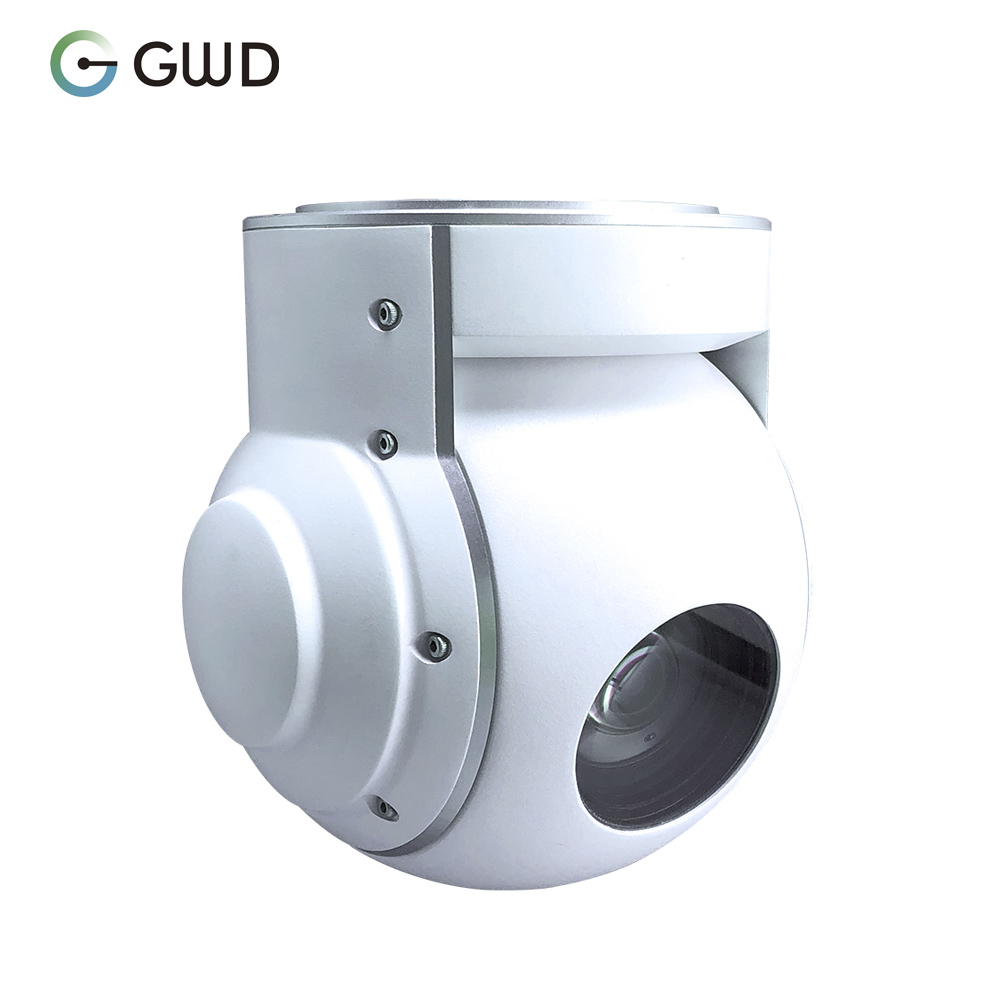

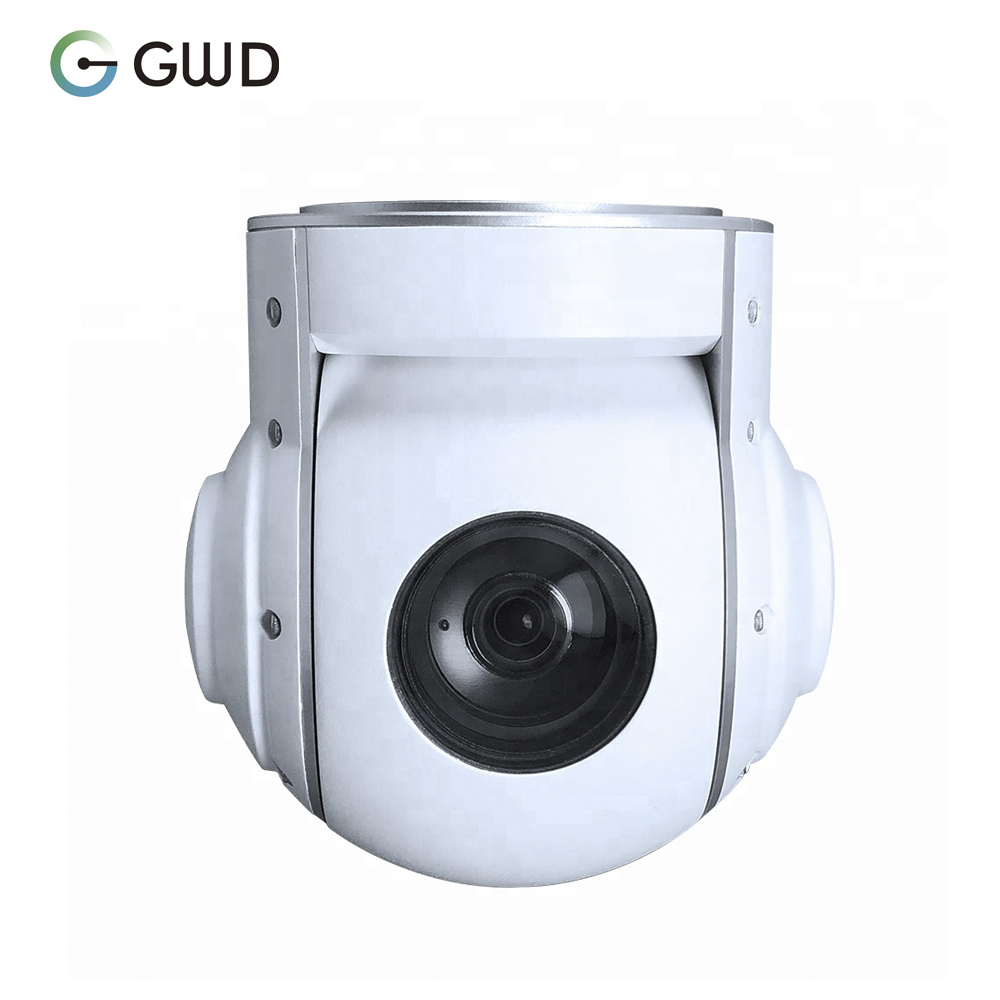

GWD-U30T 30x Optical Zoom Object Tracking Gimbal Stabilizer Camera For Drone

GWD-U30T is a pinpoint-precision professional 2-axis gimbal which features high stability, small size, light weight and low power consumption. The 2-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor.

U30T supports PWM, S.BUS and serial command control, suitable for close range remote control or remote data command control.


The speed of GWD-U30T gimbal is adjustable, Low speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.

HARDWARE PARAMETER
Working Voltage
12V
Input Voltage
4S ~ 6S
Output Voltage
5V (connect with PWM)
Working Environment Temperature
-20℃ ~ +80℃
Output
micro HDMI(HD output 1080P 60fps)
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control Method
PWM / TTL / S.BUS
GIMBAL SPECIFICATIONS
Pitch/ Tilt
±90°
Roll
Not support
Yaw/ Pan
±150°
Vibration Angle
Picth/Roll: ±0.02°, Yaw:±0.03°
One-key to Center
CAMERA SPECIFICATIONS
Imager Sensor
SONY 1/2.8-type Exmor R CMOS
Picture Quality
Full HD 1080 (1920*1080)
Lens Optical zoom
30x, F=4.3~129mm
Digital zoom
12x (360x with optical zoom)
Min illumination
Color 0.01lux[at]F1.6
CAMERA OBJECT TRACKING
Update Rate of Deviation Pixel
50Hz
Minimum Object Size
16*16 pixel
Maximum Object Size
160*160 pixel
Tracking Speed
±32 pixel/frame
Packing Information
Packing
1 Unit/ High quality plastic box with foam protection
G.W.
2914g
Package Size
360*300*250mm
