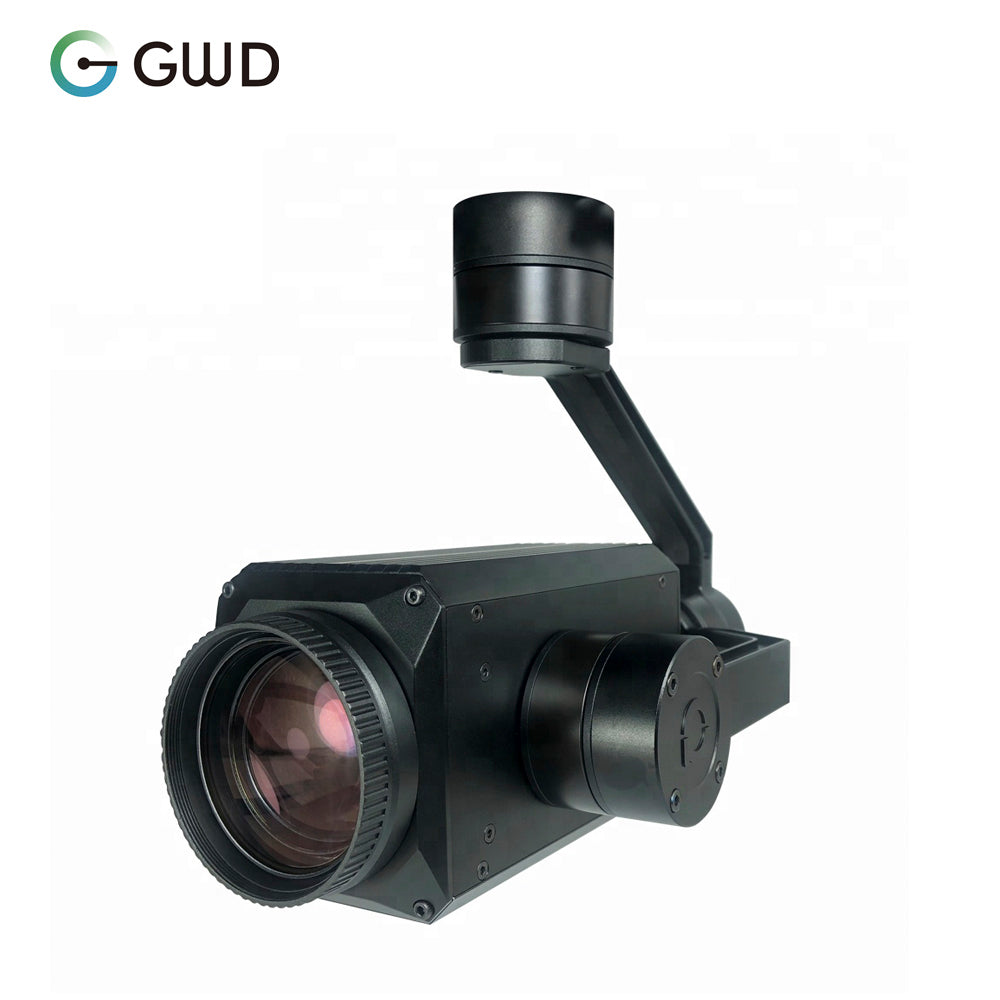

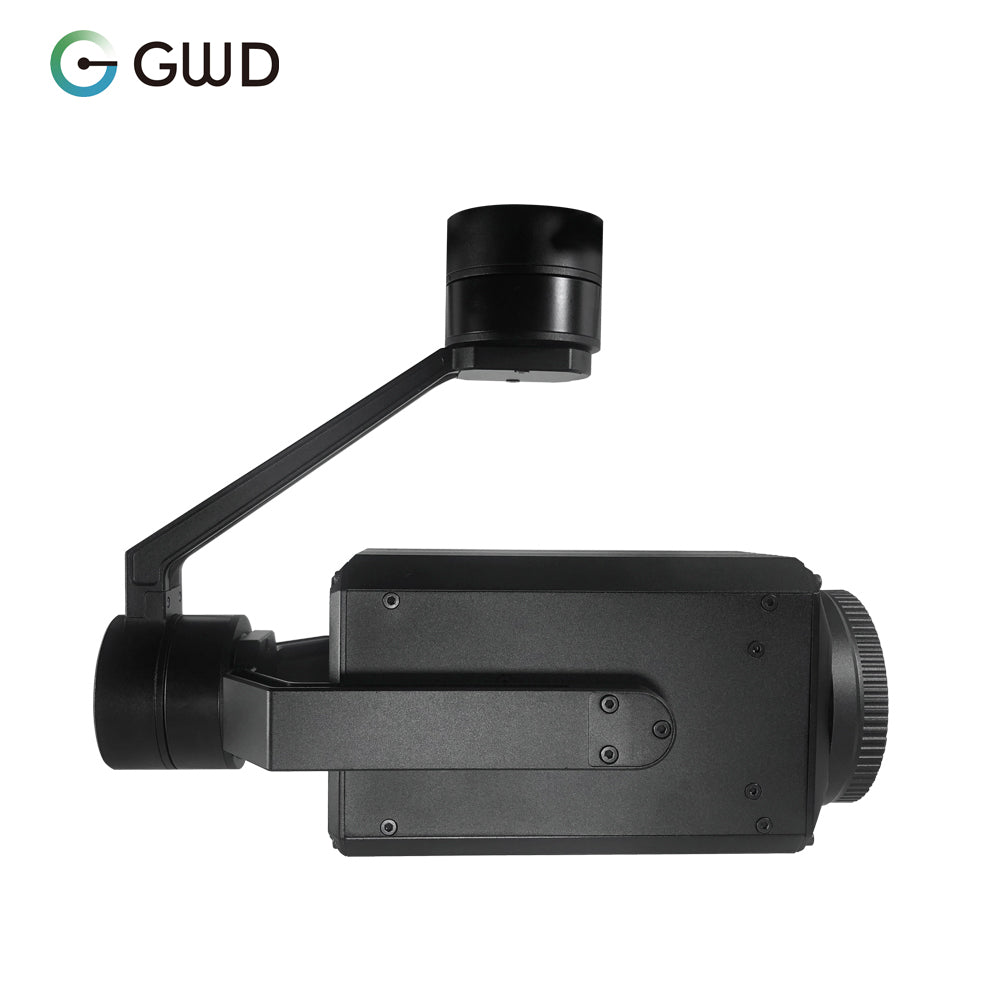

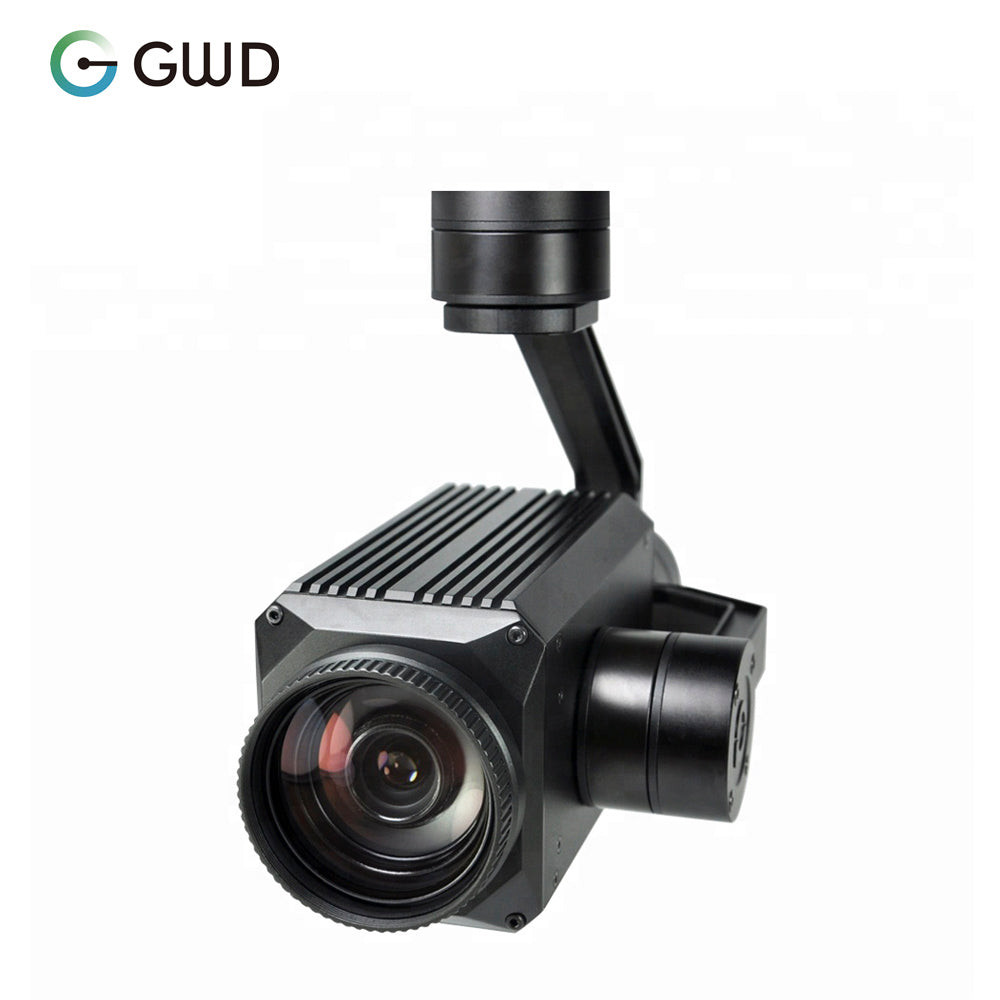

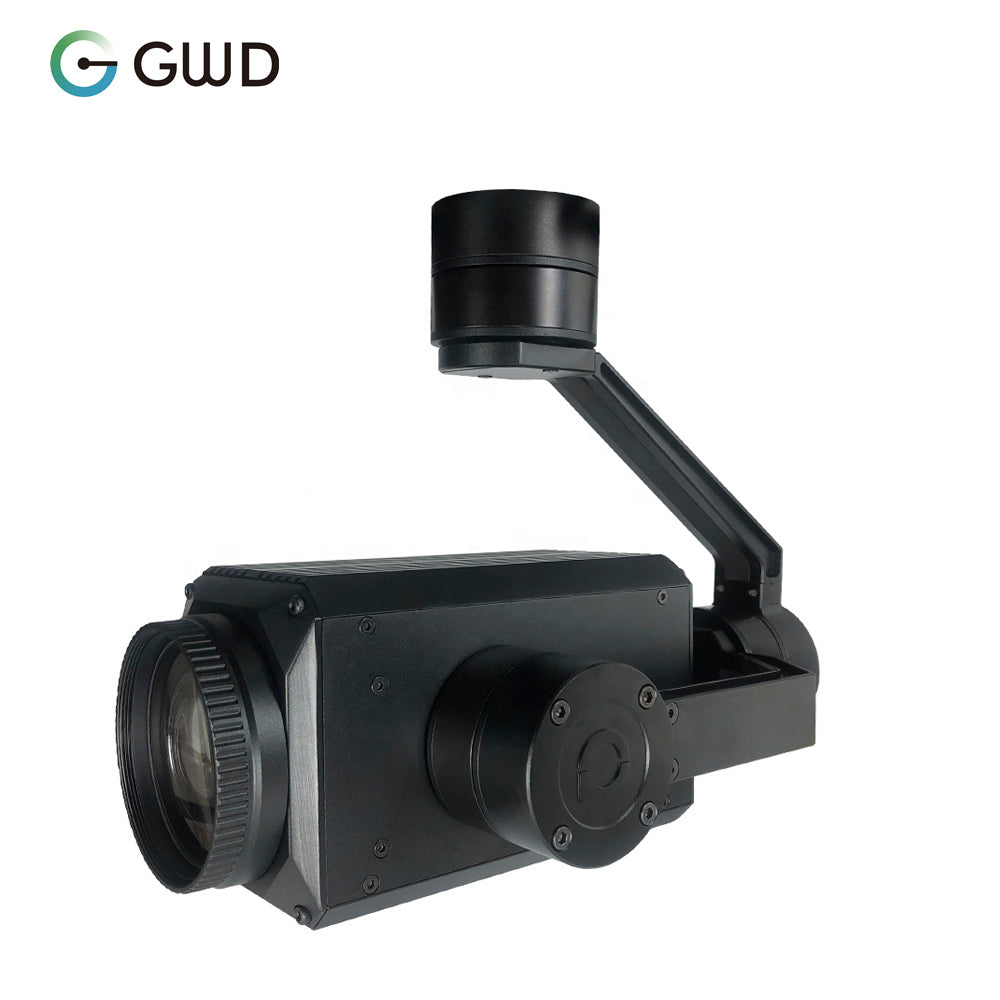

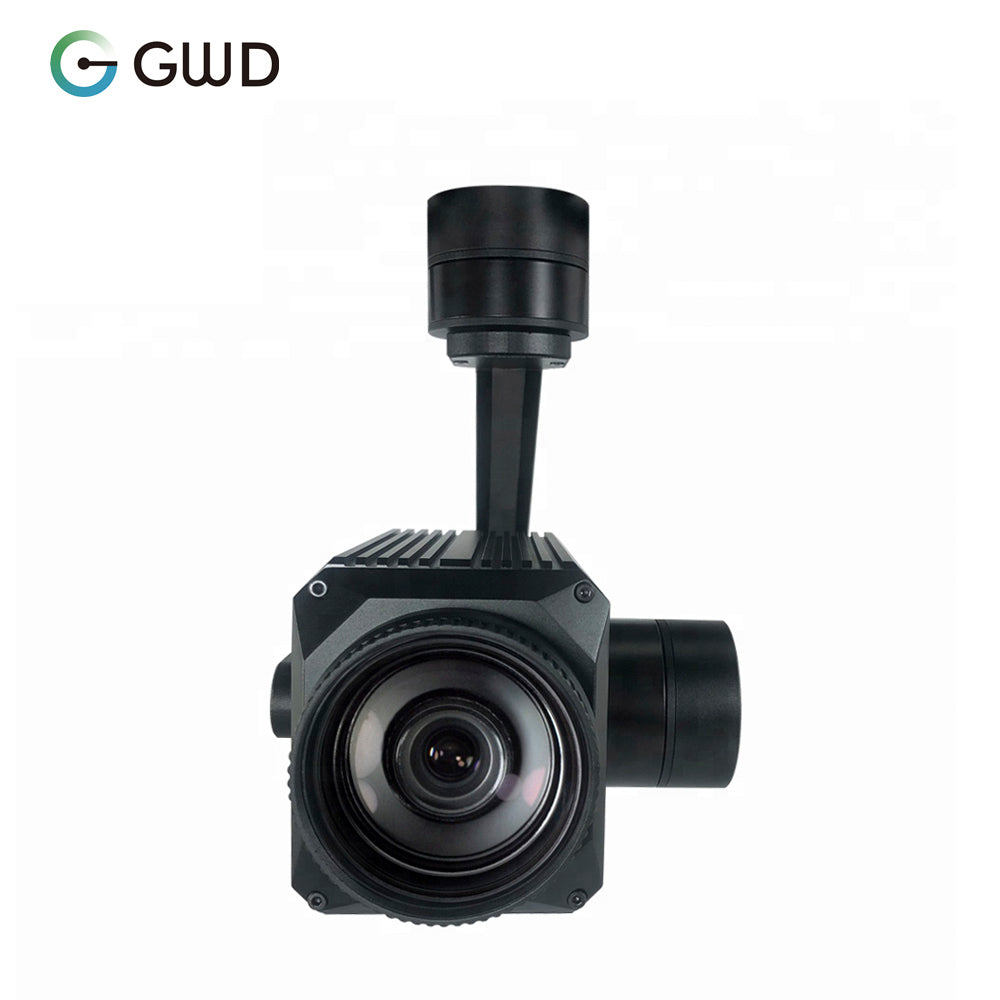

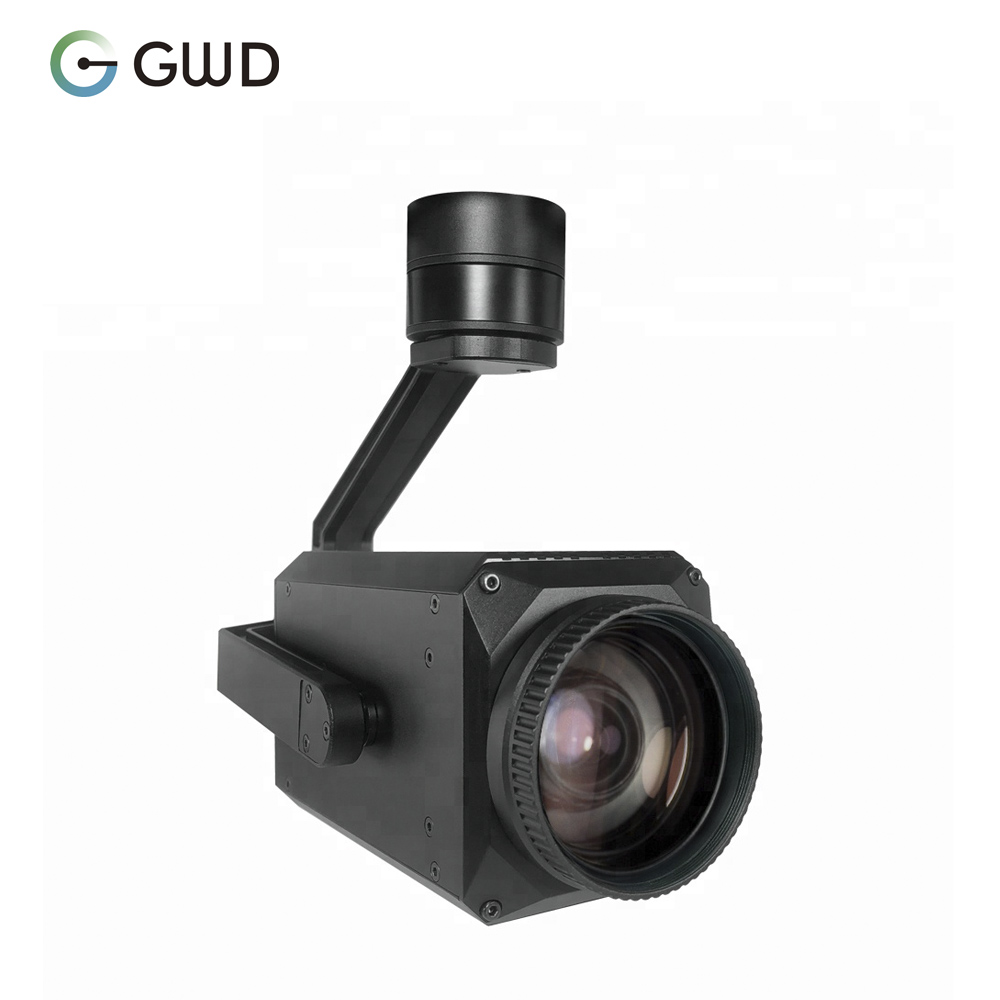

GWD-Z36T Cube 36x Optical Zoom Starlight Object Auto Tracking Stabilizer 3 Axis Flight Sports Drone Gimbal Camera For UAV

GWD-Z36T Cube 36x Optical Zoom Starlight Object Auto Tracking Stabilizer 3 Axis Flight Sports Drone Gimbal Camera For UAV

Regular price $5,199.00
Regular price Sale price $5,199.00
Sale Sold out
Quick Details
Place of Origin: Guangdong, China
Brand Name: GWD
Model Number: GWD-Z36T
Warranty: 1 Year
Special Features: Human Motion Tracking, Motion Detection
Sensor: CMOS
Style: Mini camera
Function: RESET, Wide Angle
Video Compression Format: H.264
Data Storage Options: Micro SD card, SD Card
Application: Outdoor, Indoor
Customized support: Online technical support, Customized logo, Software reengineering, OEM, ODM
Product name: Professional drone tracking camera
Working voltage: 12v
Input voltage: 4S ~ 6S
Working environment temp: -10℃ ~ +60℃
Output: micro HDMI(HD output 1080P 60fps)
Local-storage: SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method: PWM / TTL / S.BUS

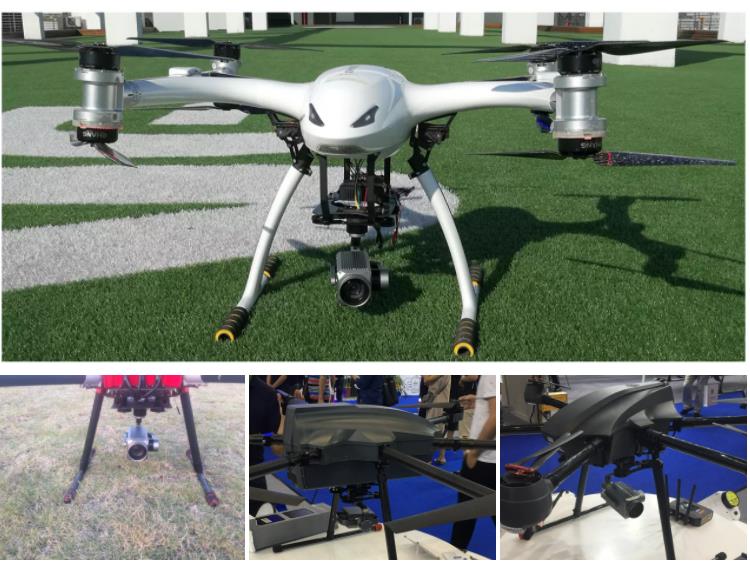

Use for: For uav / drone camera
OEM/ODM: Warmly Welcomed
Lead time:
Quantity(pieces) 1 - 5 6 - 500 >500
Est. time (days) 15 35 To be negotiated
Products Description

GWD-Z36T Cube 36x Optical Zoom Starlight Object Auto Tracking Stabilizer 3 Axis Flight Sports Drone Gimbal Camera For UAV

Product Features
Stabilizing the Z36T cube is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings - as is common with many gimbals - the Z36T cube uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability.
Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

The speed of Z36Tcube gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.
Hardware Parameter
Working voltage
12V
Input voltage
4S ~ 6S
Output voltage
5V (connect with PWM)
Dynamic current
550mA @ 12V
Idle current
450mA @ 12V
Power consumption
≤ 6.6W
Working environment temp.
-10℃ ~ +60℃
Output
micro HDMI(HD output 1080P 60fps)
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
PWM / TTL / S.BUS
Gimbal Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±170° / ±360°*N (IP output)
Vibration angle
Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center
Camera Spec
Imager Sensor
1/1.9" CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.38MP
Lens optical zoom
36x, F=5.8~210mm
Digital zoom
12x (360x with optical zoom)
Min object distance
8.5mm(wide end) to 1200mm(tele end). Default 300mm
Field of View
H: Wide 60.00°, Tele 3.70° ± 5%
V: Wide 34.58°, Tele 1.99° ± 5%
Sync system
Progressive scanning
S/N ratio
more than 52dB
Min illumination
Color 0.005lux@F1.5, Black&white 0.0005lux@F1.5, Starlight level
Gain
Auto
White balance
Multi modes
Shutter speed
1/1s to 1/10,000s, 22 steps
Backlight compensation
Yes
Aperture control
16 steps
Defog
Yes
OSD
Yes
Defog
Yes
OSD
Yes
Camera Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<10ms
Minimum object contrast
5%
SNR
4
Minimum object size
32*32 pixel
Maximum object size
128*128 pixel
Tracking speed
±48 ~ ±192 pixel/frame
Object memory time
100 frames (4s)
The mean square root values of pulse noise in the object position
< 0.5 pixel
Packing Information
N.W.
945g

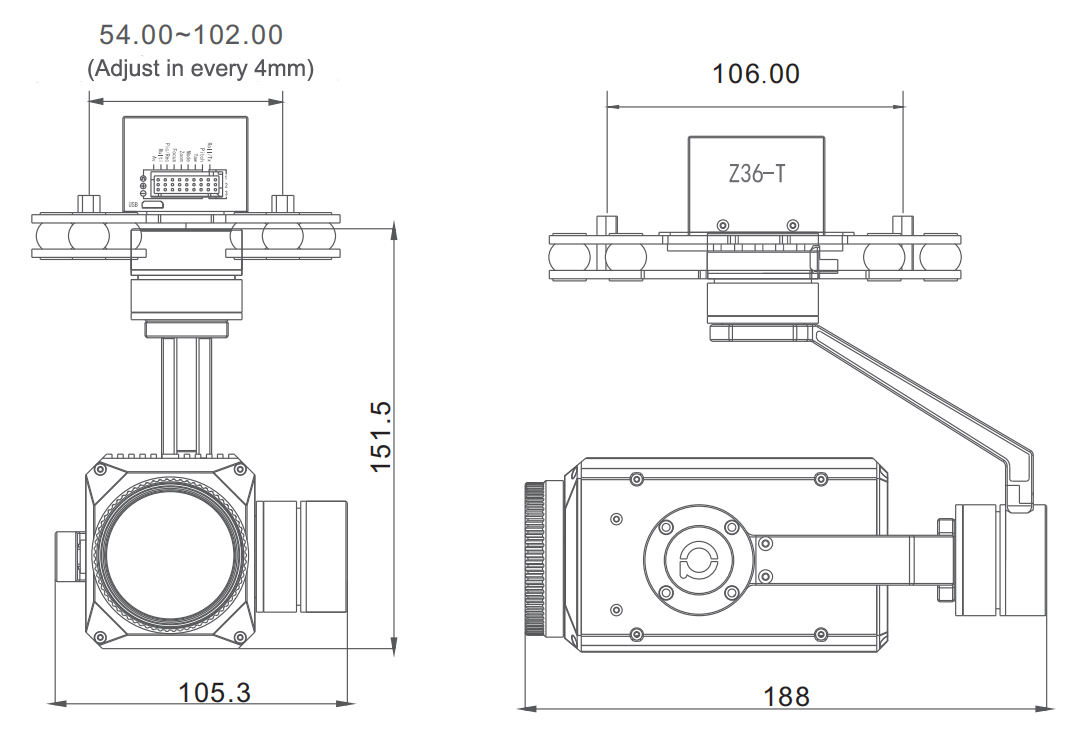

Product meas.
105.3*188*151.5mm
Accessories
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic
box with foam cushion
G.W.
3127g
Package meas.
360*300*250mm
