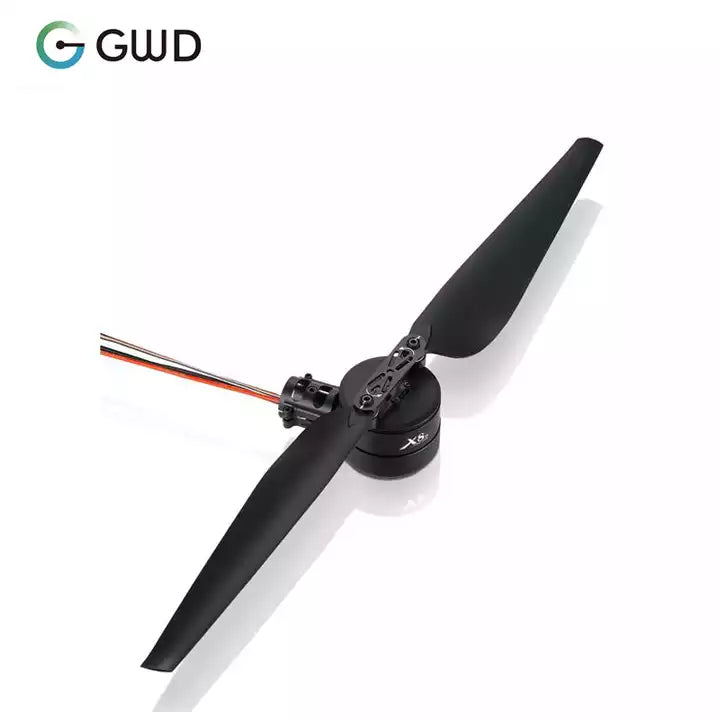

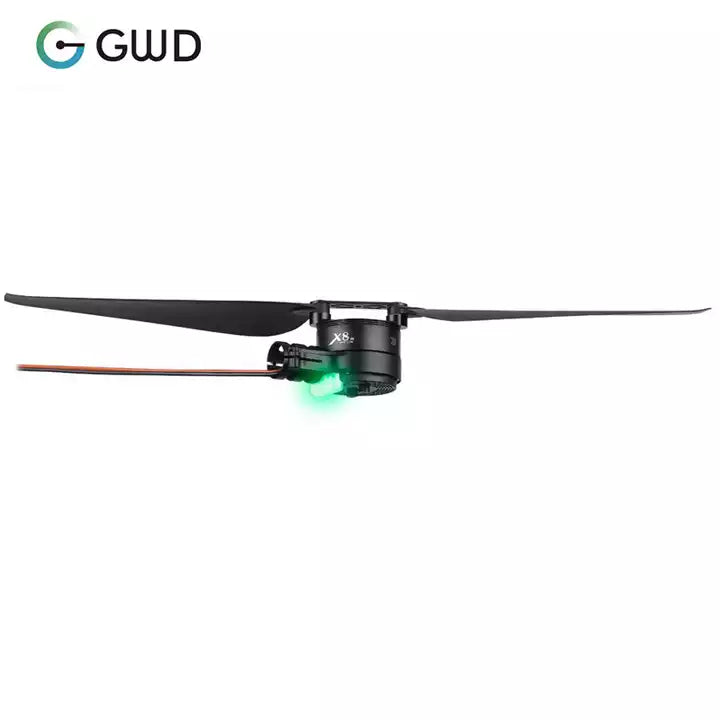

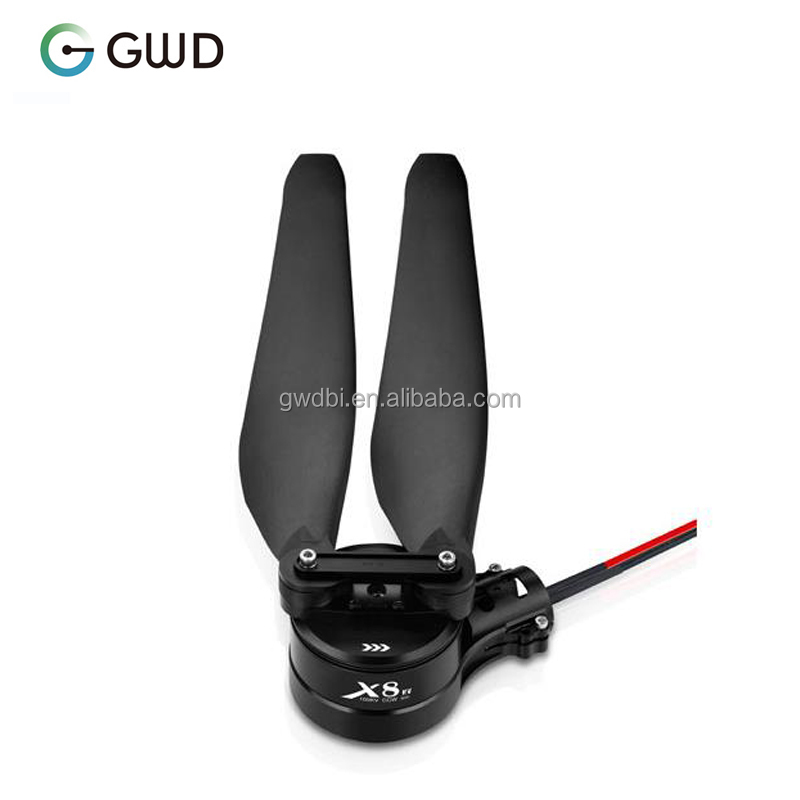

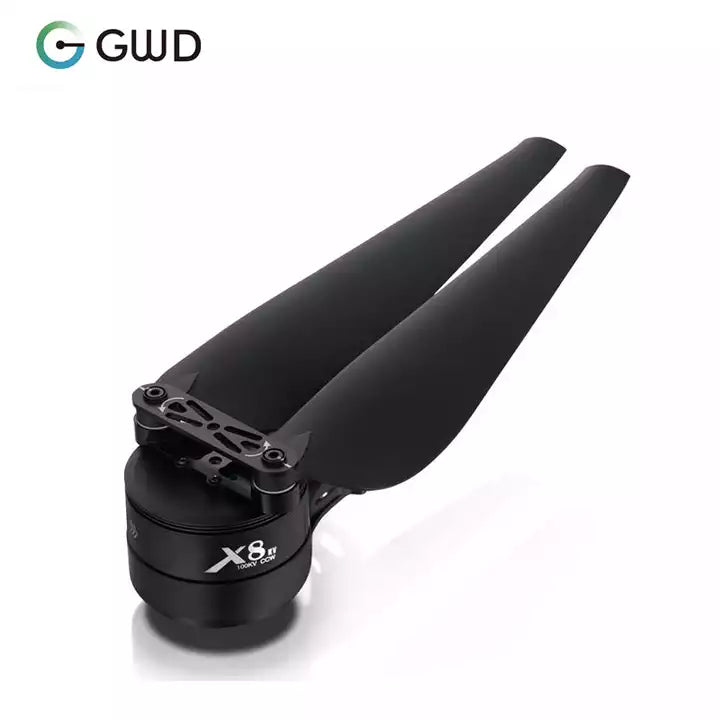

HobbyWing X8 Drone X8 Power System Combo UAV Propeller Wholesale Drone Parts
HobbyWing X8 Drone X8 Power System Combo UAV Propeller Wholesale Drone Parts
Regular price
$279.00
Regular price
Sale price
$279.00
Unit price
per
Couldn't load pickup availability
Quick Details
|
Place of Origin: |
Guangdong, China |
| Brand Name: |
Skydroid |
| Model Number: |
HobbyWing X8 |
|
Private Mold: |
NO |
|
Type: |
Drones Accessories |
|
Product name: |
HobbyWing X8 Drone Power System |
|
Function: |
Portable |
|
OEM/ODM: |
Warmly Welcomed |
| Logo: | Customer Logo Accepted |
| Quantity(pieces) | 1 - 200 | 201 - 5000 | >5000 |
| Est. Time(days) | 15 | 40 | To be negotiated |
Products Description

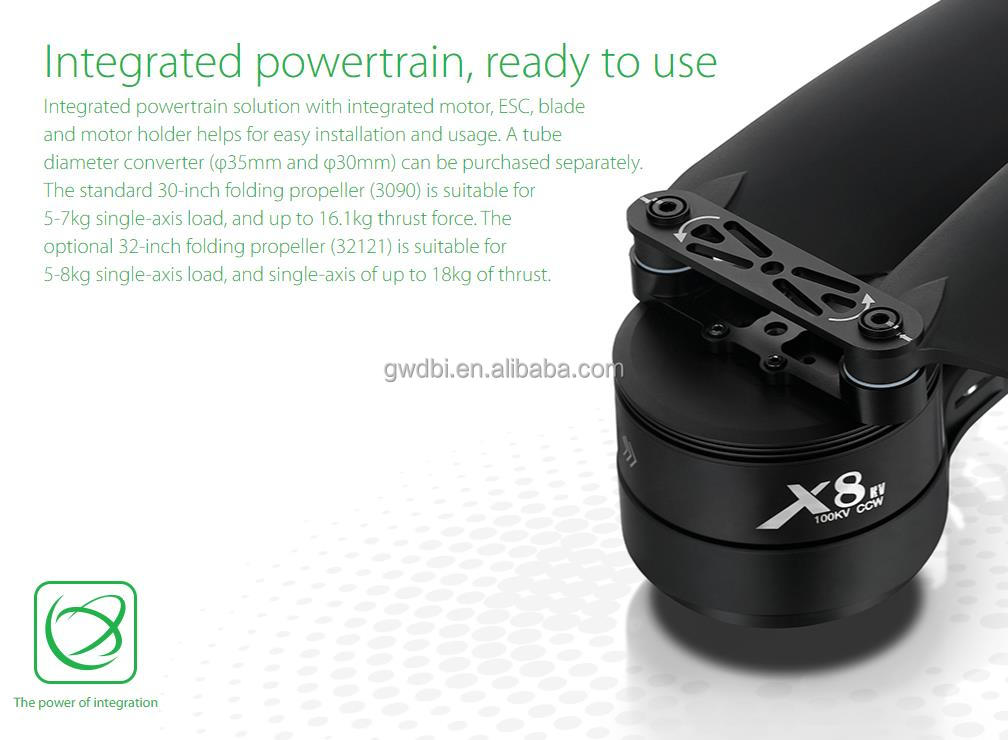

HobbyWing X8 Drone X8 Power System Combo UAV Propeller Wholesale Drone Parts
For more style drone accessories, please contact us
|
Product Name
|
X8 Power System Combo
|
|
Specifications
|
1) Max. Thrust: 15.3kg/Axis (48V, Sea Level )
2) Recommended LiPo Battery: 12S LiPo 3) Recommended Takeoff Weight: 5-7kg/Axis(48V，Sea Level)

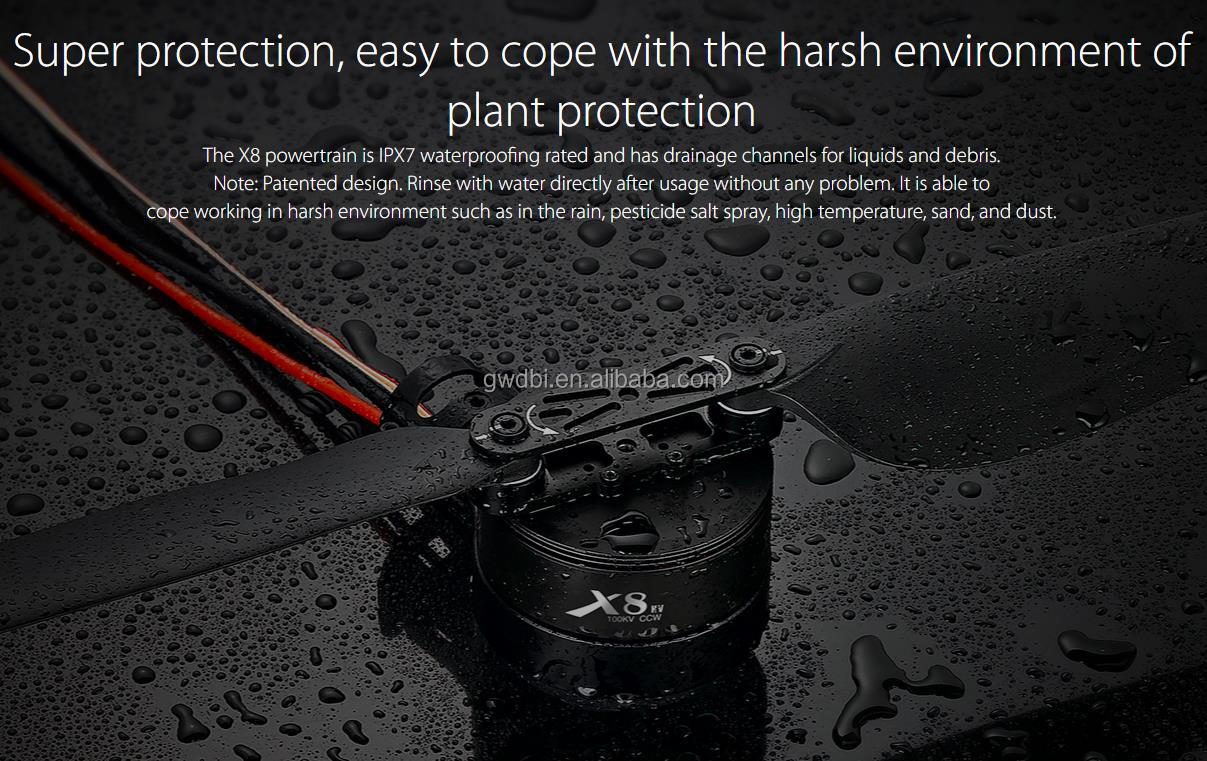

4) Combo Weight: 1040g 5) Waterproof Rating: IPX7 6) Operating Temperature 7) -20℃~65℃ |
|

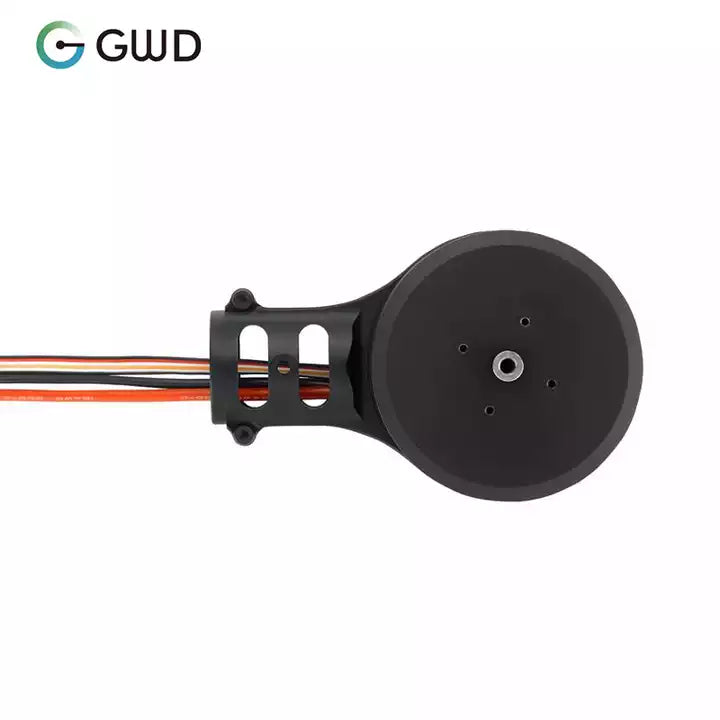

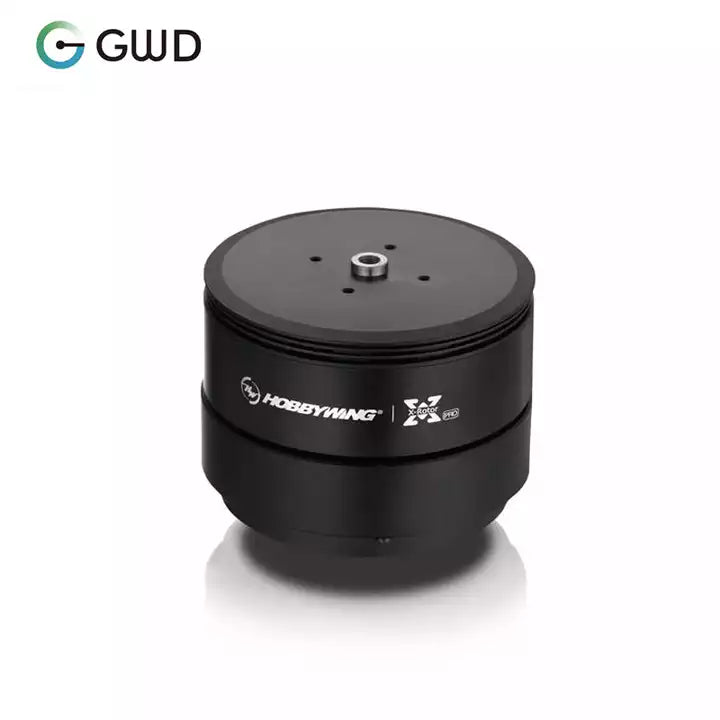

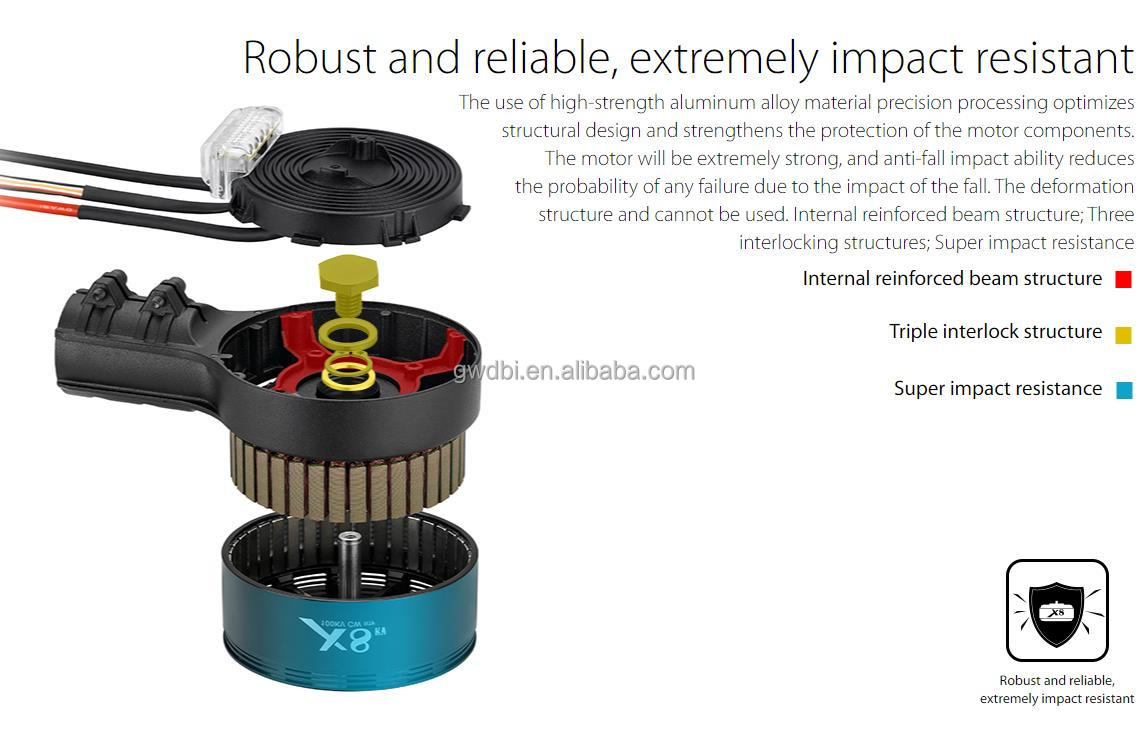

Motor
|
Stator Size: 81*20mm
KV Rating: 100KV O.D of Carbon Fiber Tube: Φ35mm/Φ30mm (*Tube Adapter will be Needed) Bearing: NSK Ball Bearing (Waterproof) |
|
ESC
|
Recommended LiPo Battery: 6-12S LiPo
PWM Input Signal Level: 3.3V/5V (Compatible ) Throttle Signal Frequency: 50-500Hz Operating Pulse Width: 1100-1940 μs (Fixed or cannot be Programmed ) Max. Input Voltage: 52.2V Max. Input Current (Cont.): 80 A(w/ Good Heat Dissipation ) Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation ) BEC: No Nozzle Mounting Holes: Φ28.4mm-2*M3 |
|

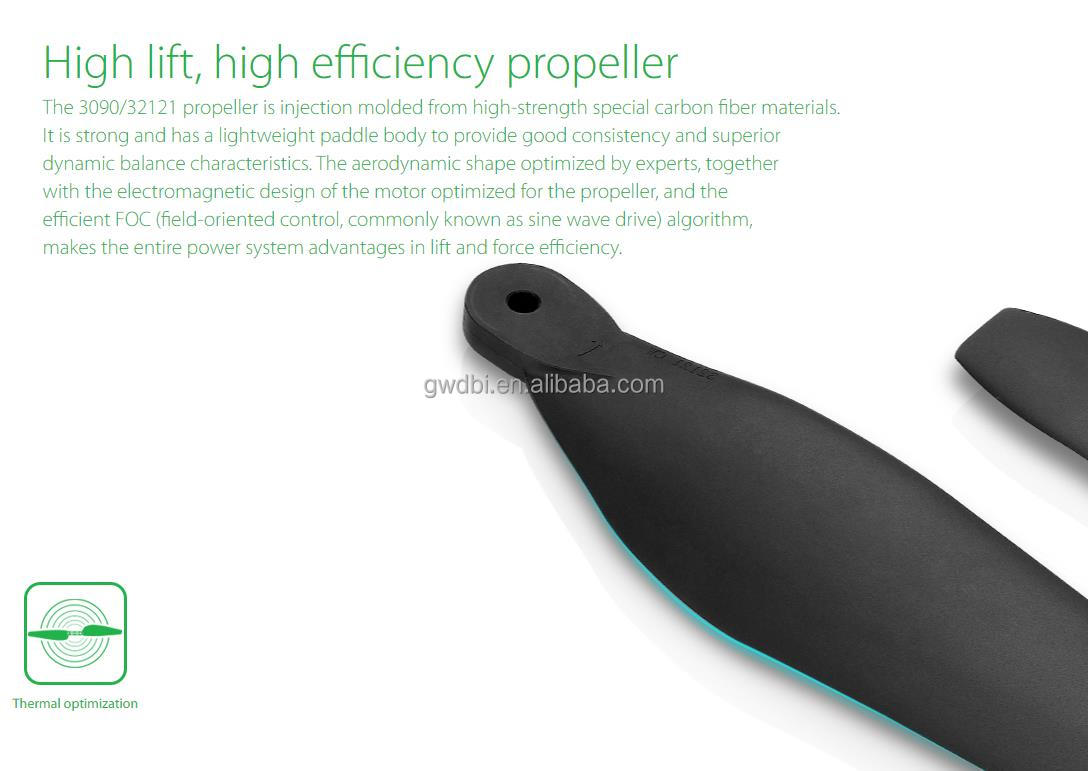

Propeller
|
Diameter×Pitch: 3090
Weight: 180g |
|
Category
|
Product Item
|
X6
|
X8
|
X9
|
X9 Plus
|
X9 Max
|
|
Specifications
|
Max. Thrust per Axis (kg)
|
12
|
15.3
|
22.5
|
26.5
|
29
|
|
Recommended LiPo Battery
|
12S
|
12S
|
12~14S
|
14S
|
14S
|
|
|
Recommended Takeoff Weight per Axis (kg)
|
3-5
|
5-7
|
7-9.5
|
11~13
|
12-15
|
|
|
Combo Weight (g)
|
720
|
1040
|
1400
|
1774
|
1970
|
|
|
Waterproof Rating
|
IPX7
|
IPX7
|
IPX7
|
IPX7
|
IPX7
|
|
|
Motor
|
Stator Size (mm)
|
70
|
81*20
|
96*16
|
96*20
|
96*26
|
|
KV Rating (KV)
|
180
|
100
|
110
|
100
|
100
|
|
|
O.D of Carbon Fiber Tube with and W/O Tube Adapter
|
φ30/φ28
|
Φ35/Φ30
|
Φ40
|
φ40/φ45
|
φ40/φ45
|
|
|
Bearing
|
Imported Bearing
|
Imported Bearing
|
Imported Bearing
|
Imported Bearing
|
Imported Bearing
|
|
|
ESC
|
Recommended LiPo Battery
|
6-12S
|
6-12S
|
12-14S
|
6-14S
|
6-14S
|
|
PWM Input Signal Level
|
3.3v/5v (Compatible )
|
|||||
|
Throttle Signal Frequency
|
50-500Hz
|
|||||
|
Operating Pulse Width (Fixed or cannot be Programmed )
|
1100~1940 μs
|
1100~1940 μs
|
1100~1940 μs
|
1050-1950 μs
|
1050-1950 μs
|
|
|
Max. Input Voltage
|
52.2
|
52.2 V
|
52.2 V
|
60.9 V
|
60.9 V
|
|
|
Max. Input Current (A), Short Duration, Good Heat Dissipation
|
80
|
80 A
|
120 A
|
120 A
|
150 A
|
|
|
BEC
|
No
|
No
|
No
|
No
|
No
|
|
|
Nozzle Mounting Holes
|
φ28.4mm-2*M3
|
|||||
|
Recommended Propeller
|
Diameter×Pitch
|
2388
|
3090
|
3411
36190 |
36190
|
36190
|
