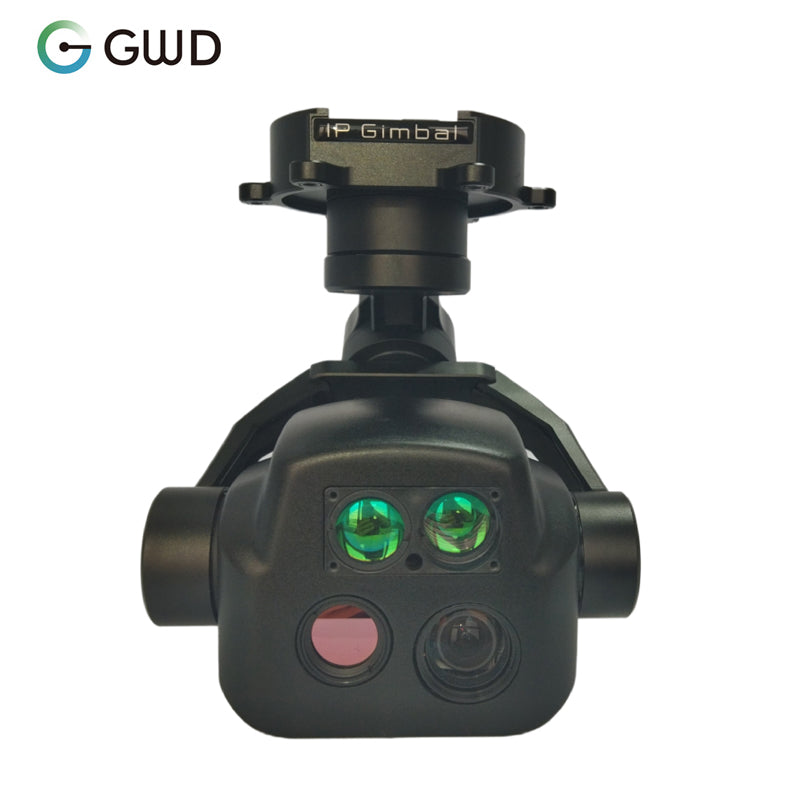

Professional 3 Axis 10x Optical Zoom Drone 640x512 Thermal Imaging Gimbal 1080P IP Output Surveillance IP Camera For UAV

Professional 3 Axis 10x Optical Zoom Drone 640x512 Thermal Imaging Gimbal 1080P IP Output Surveillance IP Camera For UAV

Regular price $8,399.00
Regular price $10,299.00 Sale price $8,399.00
Sale Sold out
Professional 3 Axis 10x Optical Zoom Drone 640x512 Thermal Imaging Gimbal 1080P IP Output Surveillance Camera For UAV

Product Features
GWD-TH10T6LN triple light gimbal is a 10x optical zoom camera, 640x512 thermal imaging, 1500m laser range finding, high-precision professional 3-axis stabilized triple light integrated system. Stabilized gimbal uses high-precision coding. The FOC control scheme of the device has the characteristics of high stability, small size, light weight and low power consumption. The visible light movement adopts HD SENSOR with 4 million effective pixels. Thermal imaging adopts 640 x 512 resolution detectors, no block design. Laser distance measuring far from 1500 meters. Provide ground control software. This system supports: picture in picture display of two-way video, network direct control of PTZ and camera, local TF storage, network file reading and writing operation, support two-way video recording synchronously, multiple picture in picture modes and pseudo color switching
Product Number
GWD-TH10T6LN
Working voltage
3S(DC 12V) Or 6S(DC 26V)
Power Supply
Static 7.5w, Dynamic 10W
Pitch Angle
-90~+135° Jitter±0.02°
Yaw Angle
Extreme rotate for 360°  Jitter±0.03°
Gimbal Mode
Support gimbal lock /follow mode; one key return to center
Control Method
Speed self-adaption and controllable, external control of IP net or TTL serial
CMOS Size
1/3M pixels CMOS sensor
Optical Zoom
10x HD Zoom lens, f=4.9±5%~49±5%mm
Focusing Time
Real time fast focusing, focusing time<1s
Video Output
IP output RTSP 1080P and 480P video stream , Local TI 1080P record
Field Angle ( FOV )
D: WIDE 66.6° ± 5% TELE 7.2° ± 5%
D: WIDE 53.2° ± 5% TELE 5.3° ± 5%
D: WIDE 39.8° ± 5% TELE 4.2° ± 5%
Support Mode
1080P 30fps
Laser Wave
905nm safety for eyes
Detect Range
5-1500m
Accuracy / Resolution
1m/0.1m
Resolution
640x512 pixels
Pix Spacing
12μm
Type
Uncooled infrared microbolometer camera
Wavelength
8~14μm
Thermal Sensitivity(NETD)
≤50mk@F1.0@25℃
Contrast ratio, Pseudo color
Adjustable , multiple pseudo color modes switch
Field Angle
13mm Lens ; Angle: 32.9°x26.6°
Measurement (Optional )
Center point , highest temperature , lowest temperature , temperature display
Product Size
125mm * 135mm * H156mm
Work Condition
-10℃ to +45℃ / 20% to 80% RH
Storage Condition
-20℃ to +60℃ / 20% to 95% RH
Application
UAV aerial photography
Net Weight
630g

PIP mode switch
The device supports 5 display modes of picture in picture
1 . Single visible light mode
2 . Visible light ( large picture ) + thermal infrared ( small picture ) ( default mode )
3.Single thermal infrared
4 . Thermal infrared ( large picture ) + Visible light ( small picture
5 . Visible light ( left ) + thermal infrared ( right ) split screen display

Pseudocolor Mode Switch

Multiple pseudo color mode support color switching ( different products will varlightly ) Mode display as follow:
