Q30TIRM Pro 3Axis Gimbal 30x IR Thermal 3KM Rangefinder Object GPS Coordinate Resolving Mapping Drone Accessories Parts Camera

Q30TIRM Pro 3Axis Gimbal 30x IR Thermal 3KM Rangefinder Object GPS Coordinate Resolving Mapping Drone Accessories Parts Camera

Regular price $38,999.00
Regular price $49,798.00 Sale price $38,999.00
Sale Sold out
Quick Details
Place of Origin: Guangdong, China
Brand Name: GWD
Model Number: GWD-Q30TIRM Pro
Type: Camera
Product name: Professional drone camera
Working voltage: 14V-16V
Input voltage: 3S ~ 4S
Working environment temp: -20℃ ~ +60℃
Output: micro HDMI(HD output 1080P 60fps) / IP (720P) / SDI (1080P 30fps)
Control method: PWM / TTL / S.BUS / TCP (IP output)
Use for: For uav / drone camera
OEM/ODM: Warmly Welcomed
Lead time:
Quantity(pieces) 1 - 2 3 - 50 >50
Est. time (days) 15 45 To be negotiated
Products Description

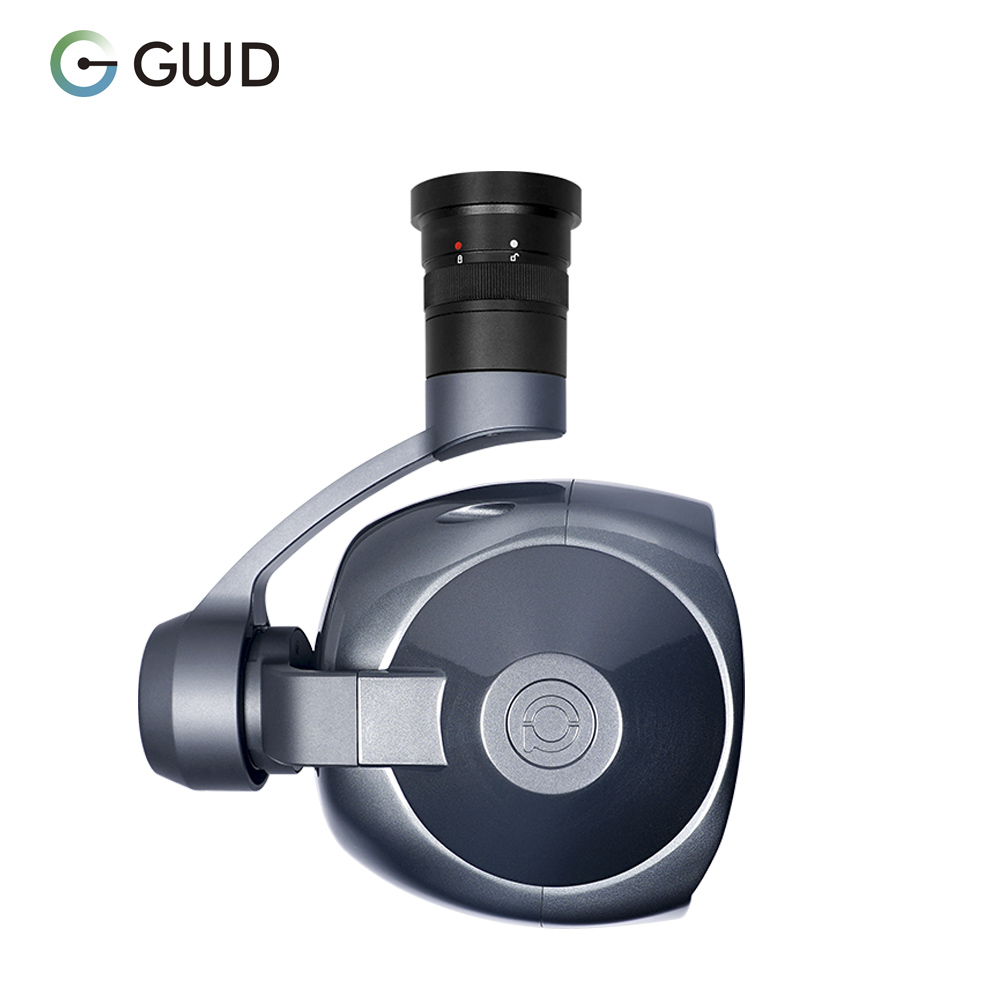

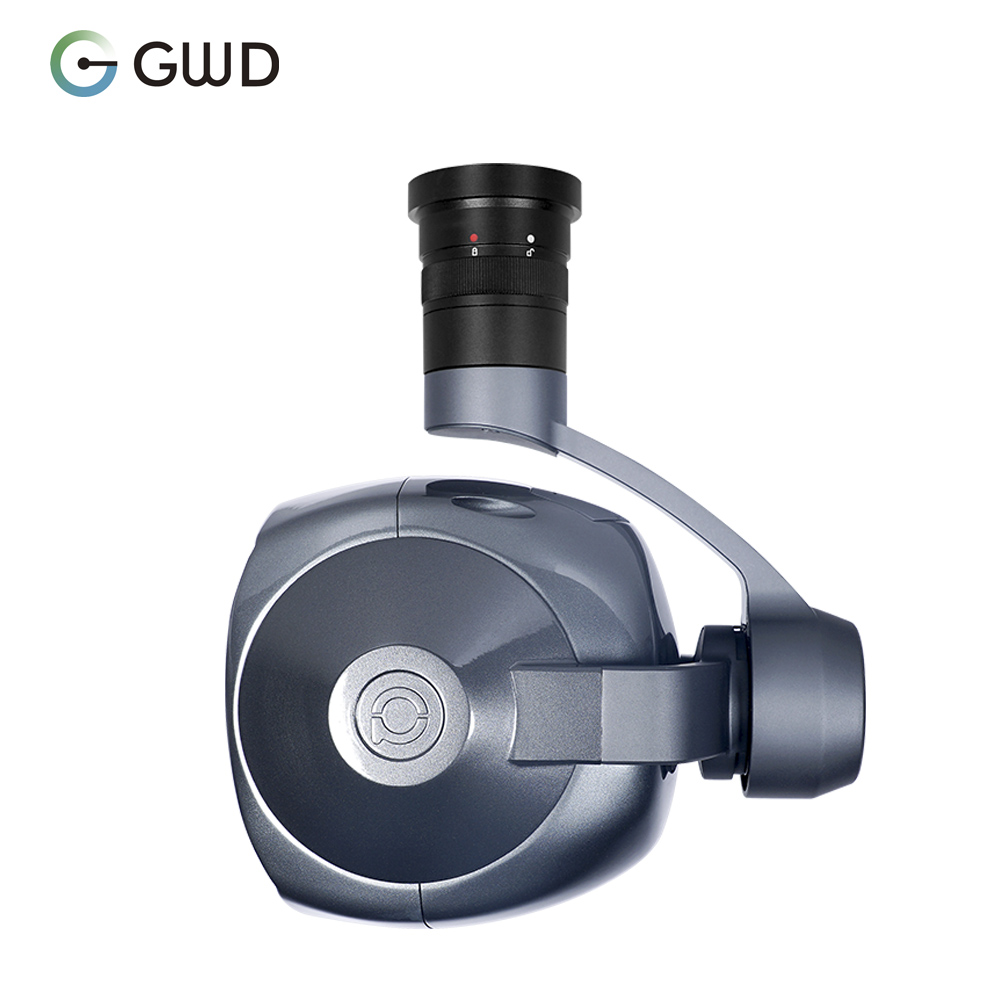

Q30TIRM Pro 3Axis Gimbal 30x IR Thermal 3KM Rangefinder Object GPS Coordinate Resolving Mapping Drone Accessories Parts Camera

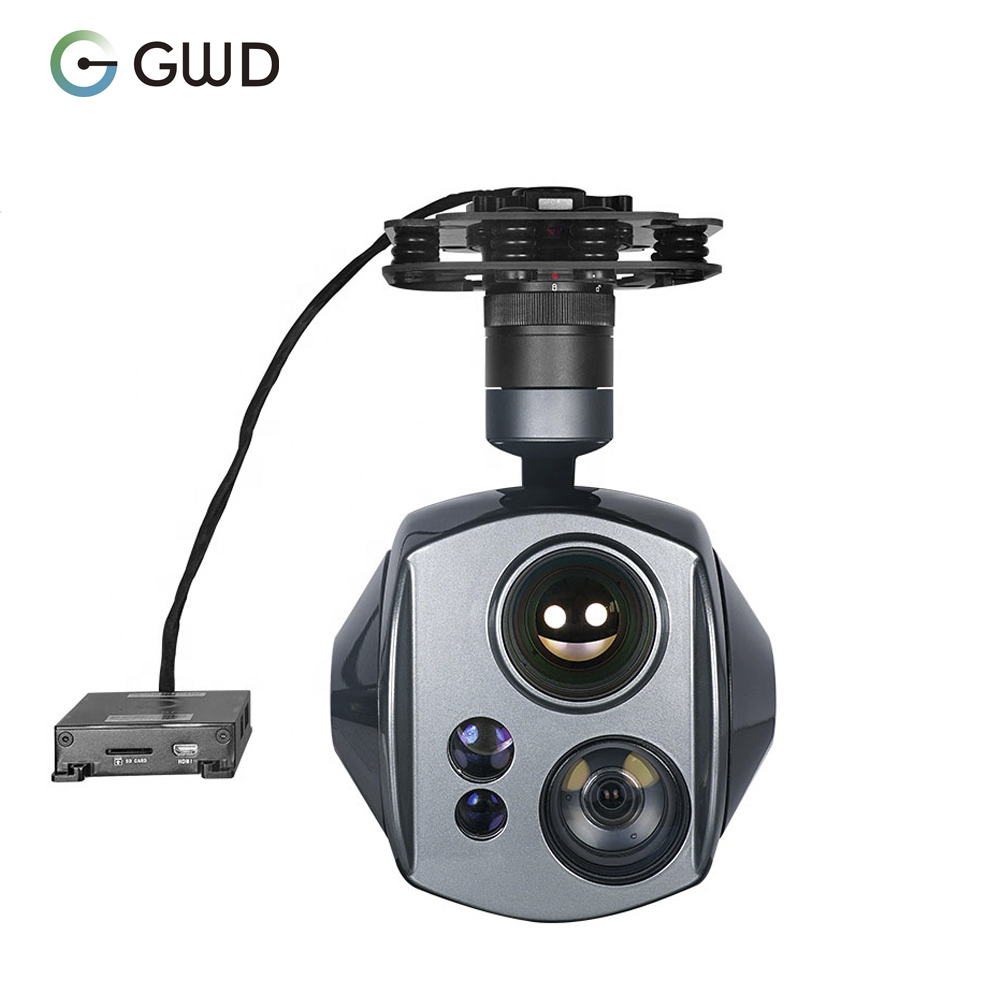

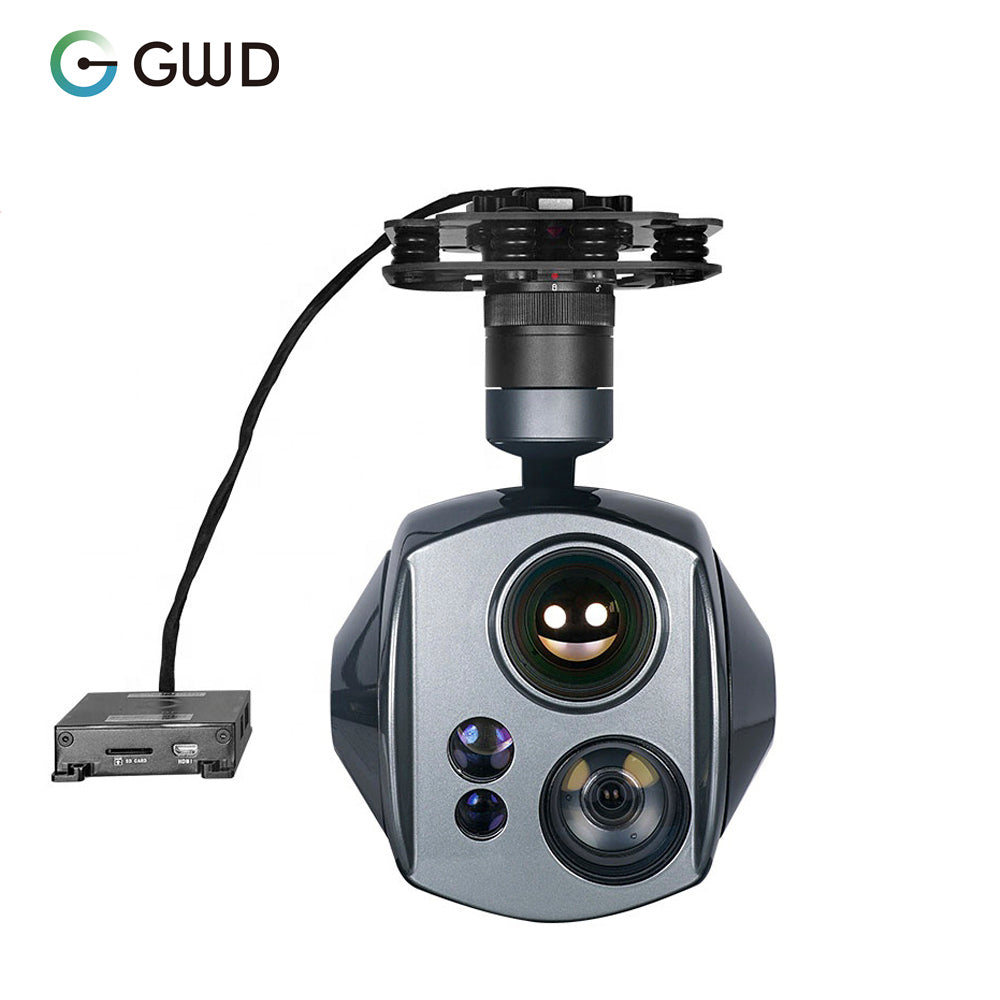

GWD-Q30TIRM pro is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera, a 640x480 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 25mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, this information will display on screen automatically.


For SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIRM pro can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.



IR+EO Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 192pixel/frame,object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

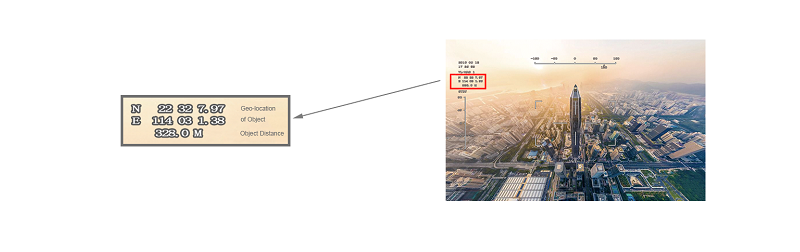

Laser Rangefinder and GPS Location Resolving
The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military .

HARDWARE PARAMETER
Working voltage
14V ~ 16V
Input voltage
3S ~ 6S
Output voltage
5V (connect with PWM)
Dynamic current
750mA @ 12V
Idle current
650mA @ 12V
Working environment temp.
-20℃ ~ +60℃
Output
micro HDMI(HD output 1080P 60fps) / IP (720P) / SDI (1080P 30fps)
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
PWM / TTL / S.BUS / TCP (IP output)
GIMBAL SPECIFICATIONS
Angle scope of structure design
Pitch/Tilt: -100°~120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design
Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle
±170° / ±360°*N (IP/SDI output)
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
CAMERA SPECIFICATIONS
Imager Sensor
SONY 1/2.8″ “Exmor R” CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.13MP
Lens optical zoom
30x, F=4.3~129mm
Digital zoom
12x (360x with optical zoom)
Min object distance
10mm(wide end) to 1200mm(tele end). Default 300mm


Horizontal viewing angle
1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system
Internal
S/N ratio
more than 50dB
Min illumination
Color 0.01lux@F1.6
Exposure control
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed
1/1s to 1/10,000s, 22 steps
Backlight compensation
Yes
Aperture control
16 steps
Defog
Yes
OSD
Yes
Thermal imager spec
Lens
35mm
Horizontal FOV
17.7°
Vertical FOV
13.3°
Diagonal FOV
22°
Detective Distance (Man: 1.8×0.5m)
1029 meters
Recognize Distance (Man: 1.8×0.5m)
257 meters
Verified Distance (Man: 1.8×0.5m)
129 meters
Detective Distance (Car: 4.2×1.8m)
3157 meters
Recognize Distance (Car: 4.2×1.8m)
789 meters
Verified Distance (Car: 4.2×1.8m)
395 meters
Working mode
Uncooled long wave (8μm~14μm) thermal imager
Detector pixel
640*480
Pixel size
17μm
Focusing method
Athermal prime lens
Emissivity correction
0.01~1
NETD
≤650mK (@25℃)
MRTD
≤650mK (@characteristic frequency)
Image enhancement
Auto adjust image brightness and contrast ratio
Color palette
White, iron red, pseudo color
Auto Non-uniform correction
Yes (no shutter)
Digital zoom
1x ~ 4x
Sync correct time
Yes
Thermometry type
Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning
0℃~120℃ (For thermometry version only)
Thermal Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
5ms
Minimum object size
32*32 pixel
Maximum object size
128*128 pixel
Tracking speed
32 pixel/frame
Object memory time
100 frames (4s)
Laser Rangefinder
Laser Wavelengths
1550nm
Optical aperture
Transmit 13mm / Receive17 mm
Resolution
0.75m
Measure ability
3000m (Typical value 1:
· Object size: the target surface is larger than the laser spot area
· Reflectivity: 60%
· Accuracy rate: 90%
· Visibility: 10 km
· Environment temperature: 20℃
· Atmospheric pressure: 1013 mbar)
Vehicle target measuring
2300m (Typical value 2:
· Object size: 2.3*2.3 m
· Emissivity: 30%
· Others same as Typcial value 1)
Eye-safe
Class 1【Standard IEC 60825-1, Second Edition (2007-03)】
Laser beam angle (Typical value)
1.0 mrad
Accuracy (Typical value)
± 0.75m
Accuracy (In harsh condition)
± 2m
Measurement frequency
2Hz
Multi-target measuring
Max.3 targets distance values returning
Object resolution (Typical value)
30m
Packing Information
N.W.
1110g / 1180g (Viewport version)
Product meas.
203*131*165mm / 209*131*165mm (Viewport version)
