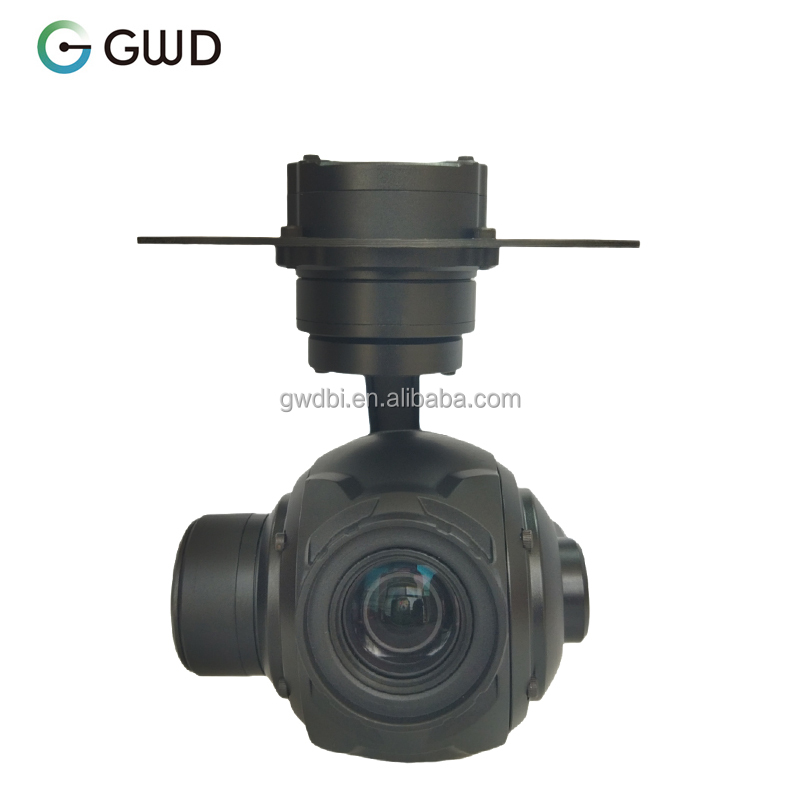

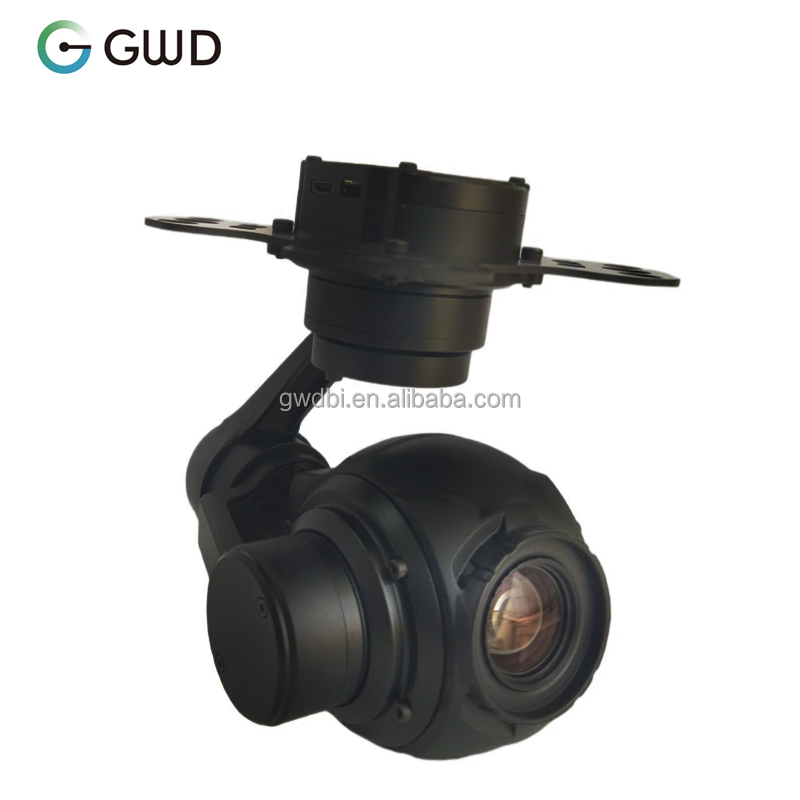

GWD-TQ10N Professional Single EO Gimbal 2K 10x Optical Zoom Object Tracking IP 2K HD Output Dron Camera System Stabilizer for UAV
GWD-TQ10N Professional Single EO Gimbal 2K 10x Optical Zoom Object Tracking IP 2K HD Output Dron Camera System Stabilizer for UAV
Regular price
$499.00
Regular price
Sale price
$499.00
Unit price
per
Couldn't load pickup availability
Quick Details:
Lead Time:
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: |
GWD-TQ10N |
| Warranty: | 1 Year |
| Special Features: |
One-way Audio, Single Light Camera |
| Sensor: | CMOS |
| Style: |
Mini camera |
| Function: |
Camera Stabilizer |
| Video Compression Format: | H.265 |
| Data Storage Options: |
Micro SD card, SD Card |
| Application: |
Outdoor, Indoor |
| Customized support: |
Online technical support, Customized logo, Software reengineering, OEM, ODM |
| Product name: | Single EO Gimbal Camera |
| Voltage: |
3S(DC12V)or 6S |
| Roll angle action range: |
-65~+65° |
| Pitch angle action range: |
-60~+135° |
| Support Mode: | 2K 30fps/ 1080P 30fps video storage IPNET RTSP code stream |
| Use for: | For uav / drone camera |
| OEM/ODM: | Warmly Welcomed |
| Quantity(pieces) | 1 - 5 | 6 - 500 | >500 |
| Est. Time(days) | 15 | 35 | To be negotiated |
Products Description
TQ10N Professional Single EO Gimbal 2K 10x Optical Zoom Object Tracking IP 2K HD Output Dron Camera System Stabilizer for UAV
|
Product Number
|
GWD-TQ10N
|
|
|
Product Name
|
10x Optical Zoom Camera 8x Digital zoom 1/3 inch 4 mega pixel CMOS SENSOR, IP 2K Output
|
|
|
Voltage
|
3S(DC12V)or 6S;
|
|
|
Power Consumption
|
Dynamic 4.2W
|
|
|
Working Status
|
Roll angle action range
|
-65~+65°
|
|
Pitch angle action range
|
-60~+135°
|
|
|
Yaw angle action range
|
600 degree rotation
|
|
|
Angle jitter in pitch and roll direction
|
±0.02°
|
|
|
Visible Light Camera
|
CMOS Size
|
1/3 inch 4 mega pixel CMOS SENSOR
|
|
Optical Zoom
|
10x Optical zoom lens, f=4.9 to49mm
|
|
|
Digital zoom
|
8x Digital zoom
|
|
|
Focusing time
|
Real time fast focusing function, focusing time<1S
|
|
|
Field Angle(FOV)
|
D : WIDE 66.6º±5% TELE 7.2º±5%
H : WIDE 54º±5% TELE 4.9º±5% V : WIDE 31º±5%TELE4º±5% |
|
|
Support Mode
|
K 30fps/ 1080P 30fps video storage
IPNET RTSP code stream |
|
|
Product Size
|
77mm×105mm×147mm
|
|
|
Weight
|
375±10g
|
|
