GWD-WK10TIRM 15KM Laser Rangefinder 10X Zoom IR Thermal Gimbal PTZ Drone Accessories Parts Camera with GPS Coordinate Resolving
GWD-WK10TIRM 15KM Laser Rangefinder 10X Zoom IR Thermal Gimbal PTZ Drone Accessories Parts Camera with GPS Coordinate Resolving
Regular price
$23,999.00
Regular price
$28,655.00
Sale price
$23,999.00
Unit price
per
Couldn't load pickup availability
Quick Details
Lead time:
The speed of WK10TIRM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode
for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: |
GWD-WK10TIRM |
| Type: | Camera |
| Product name: | Professional drone camera |
| Working voltage: | 14V-16V |
| Input voltage: |
3S ~ 4S |
| Working environment temp: |
-20℃ ~ +60℃ |
| Output: |
micro HDMI(HD output 1080P 60fps) / RJ45 / SDI / Skyport |
| Use for: | For uav / drone camera |
| OEM/ODM: | Warmly Welcomed |
| Quantity(pieces) | 1 - 2 | 3 - 50 | >50 |
| Est. time (days) | 15 | 45 | To be negotiated |
Products Description
WK10TIRM 15KM Laser Rangefinder 10X Zoom IR Thermal Gimbal PTZ Drone Accessorie Parts Camera with GPS Coordinate Resolving

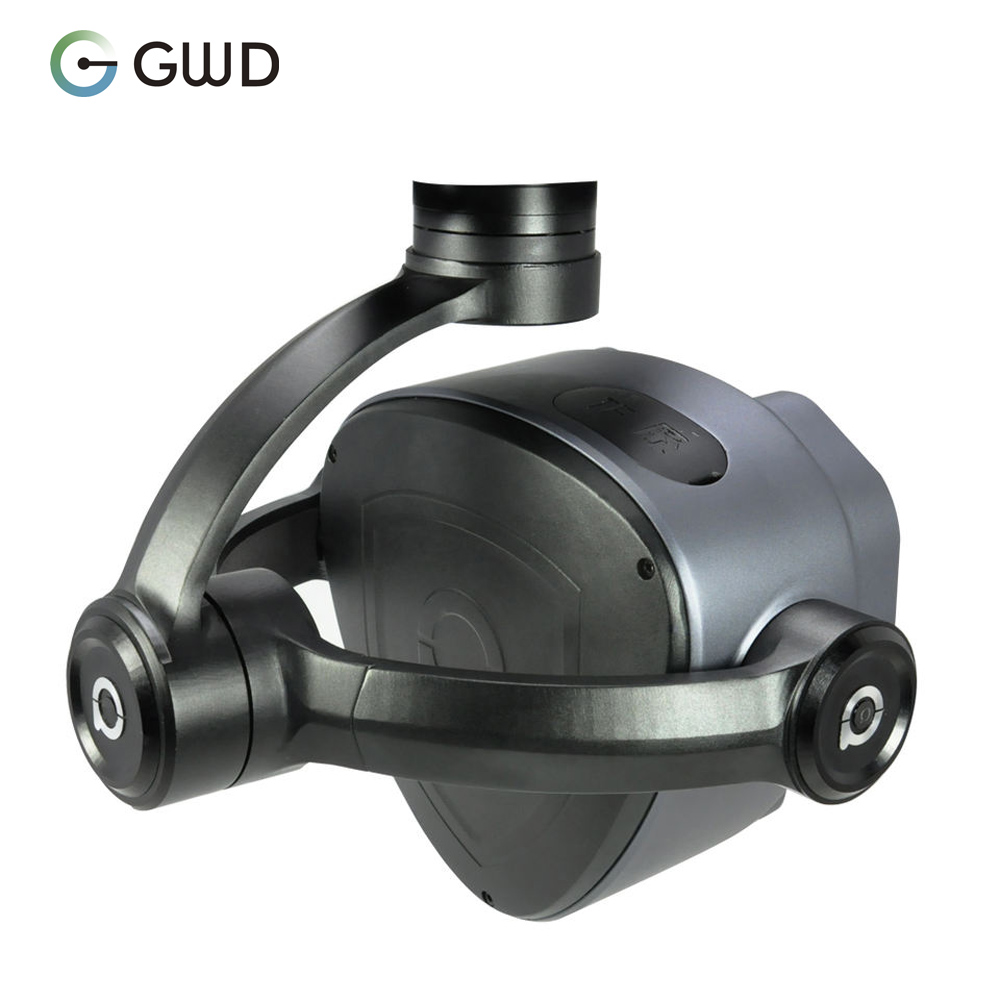

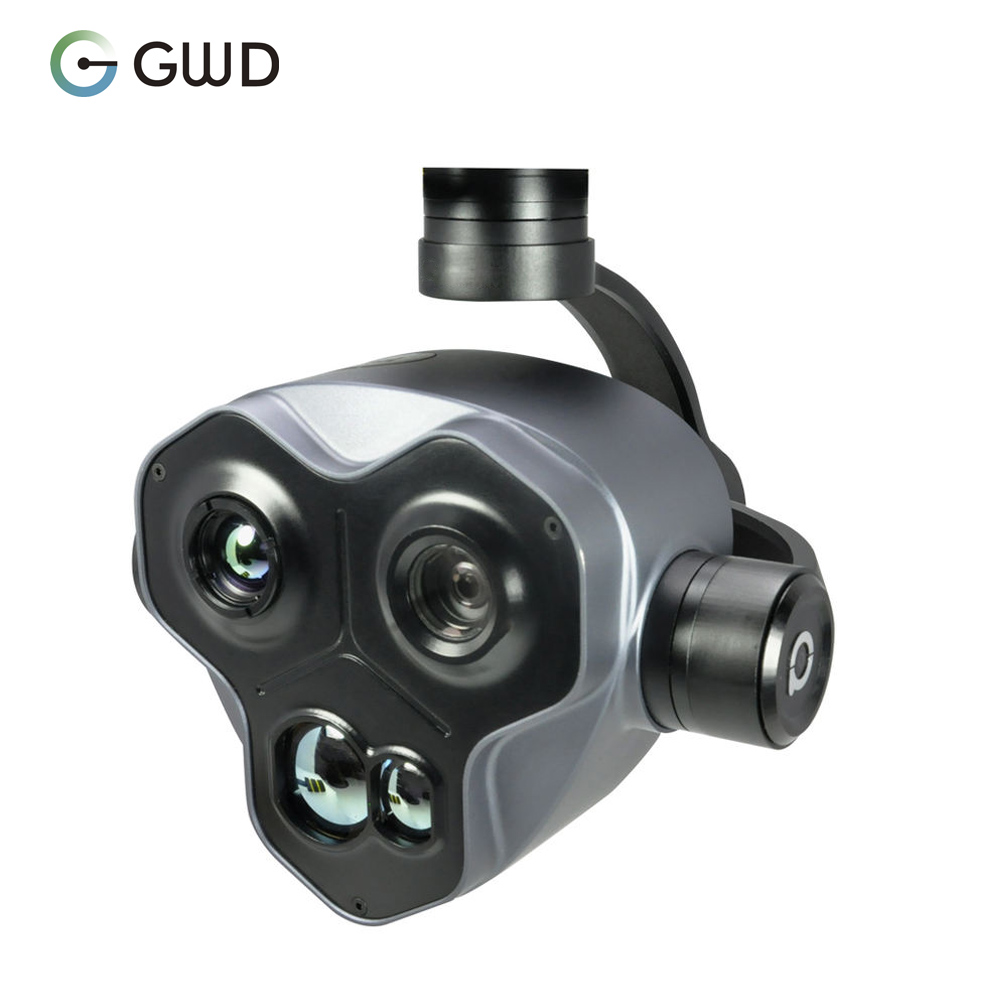

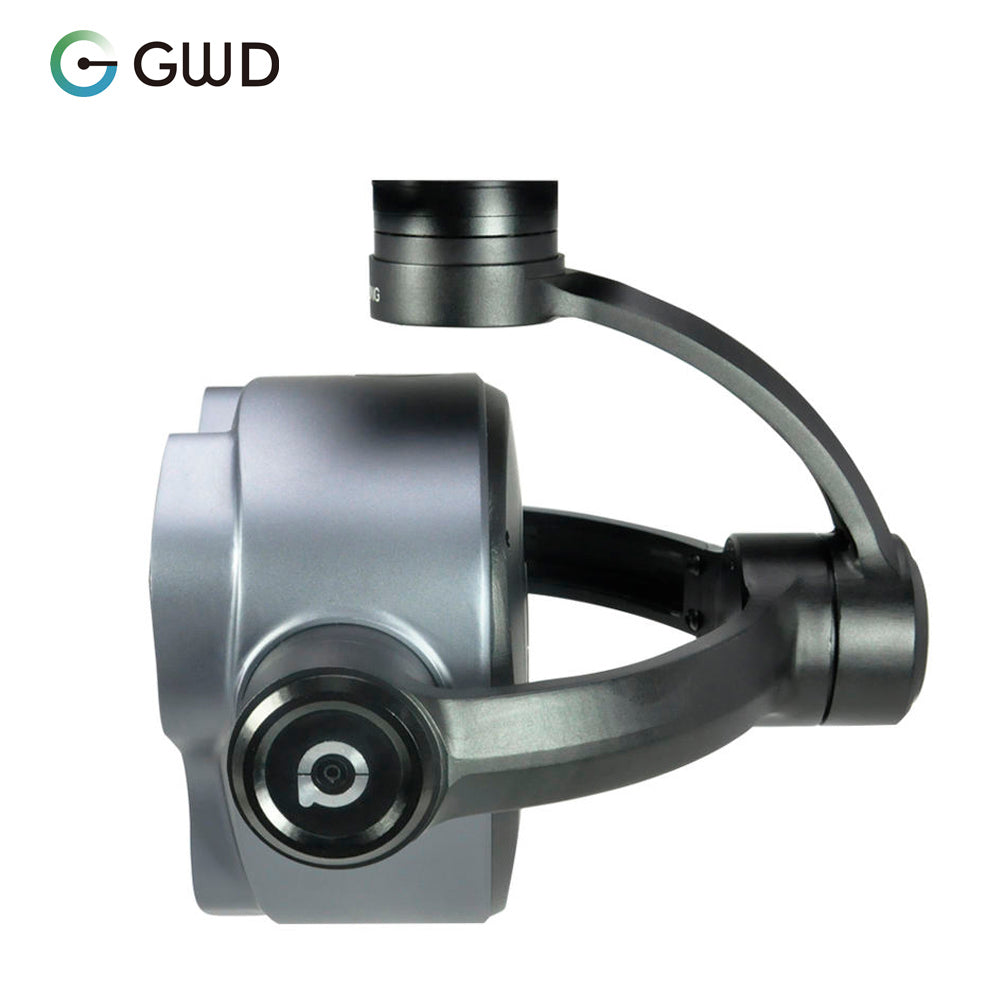

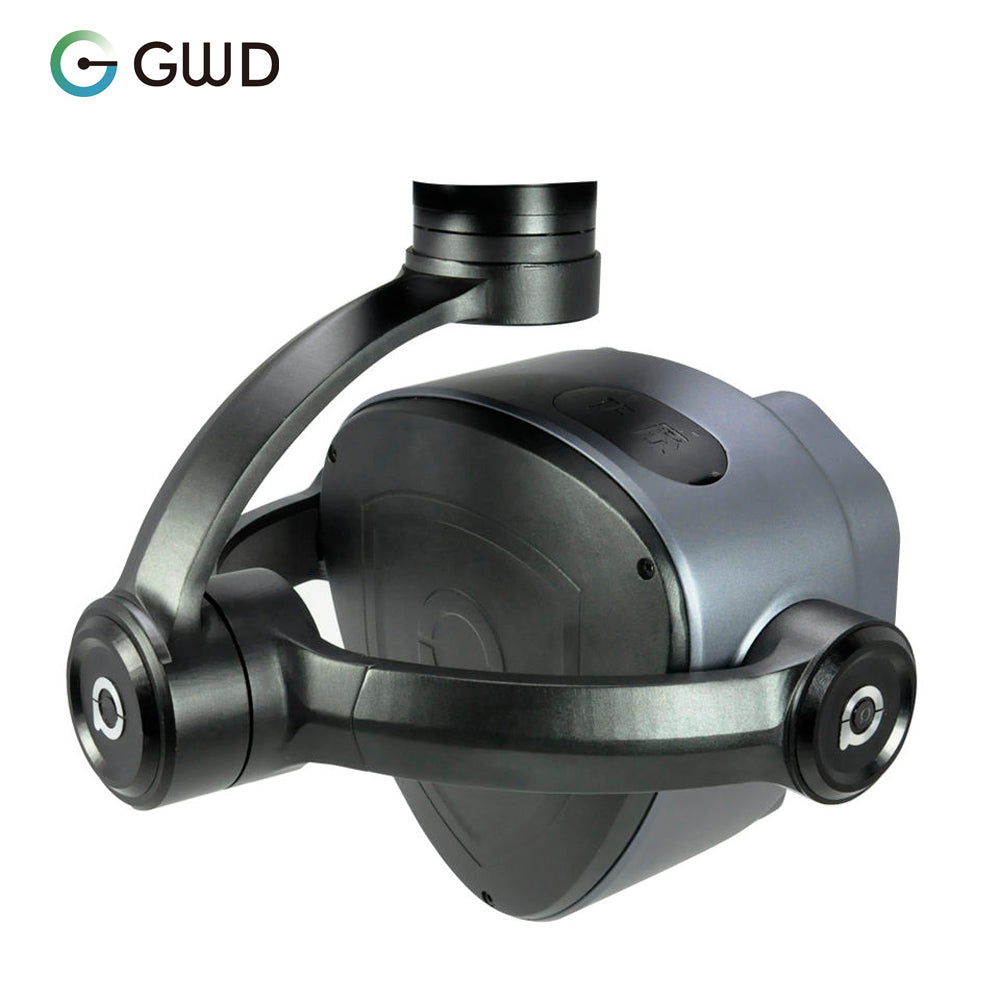

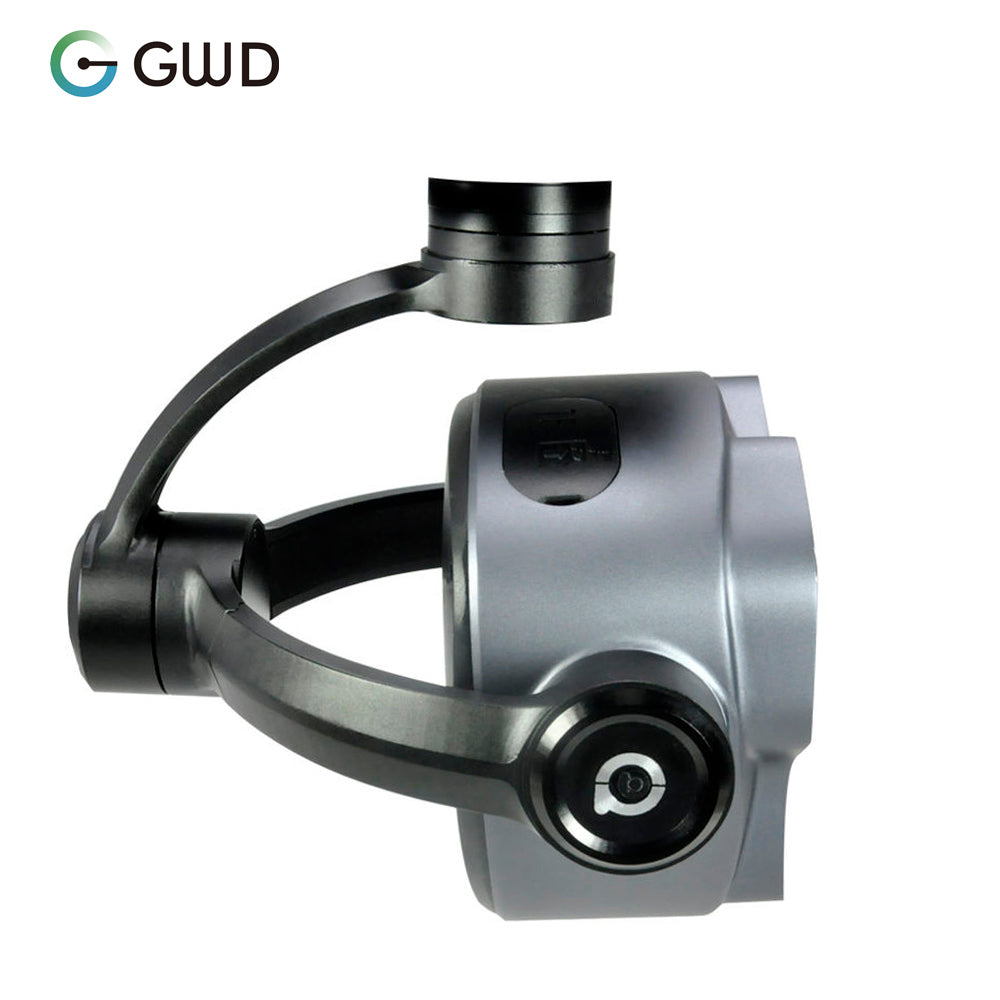

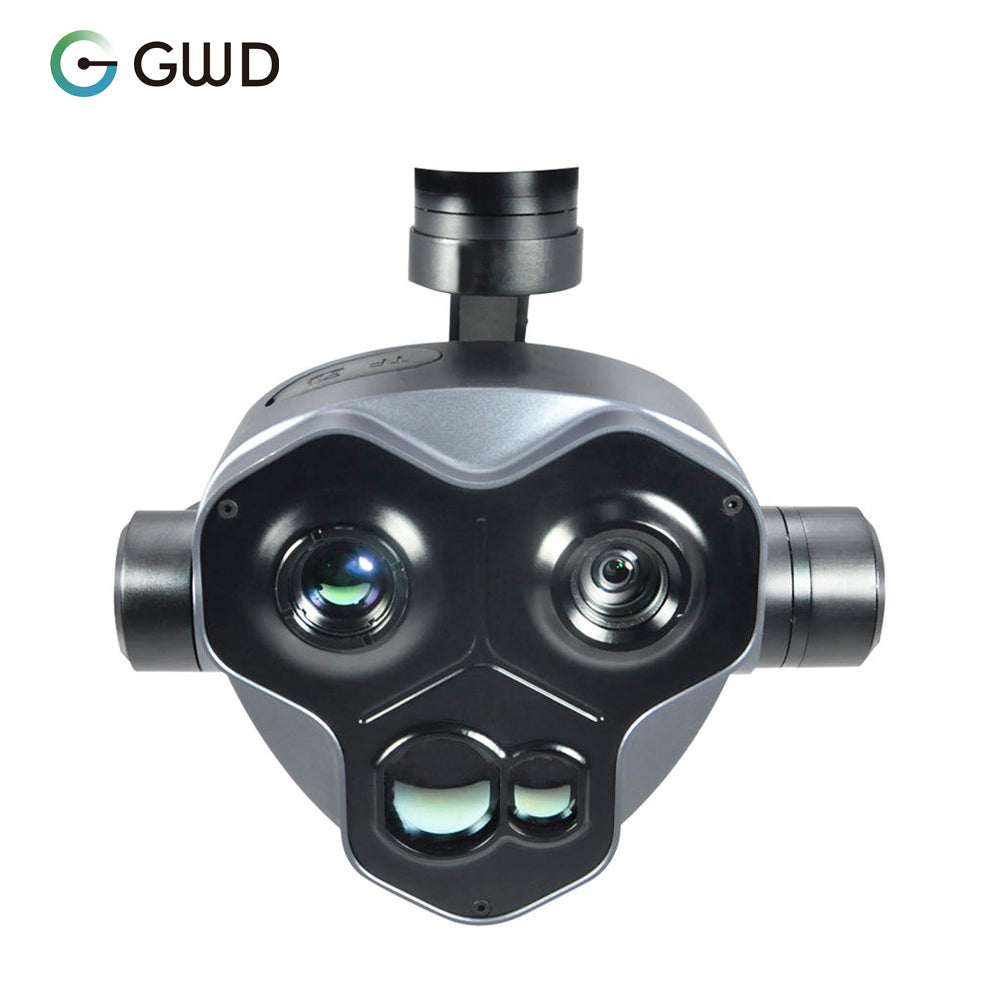

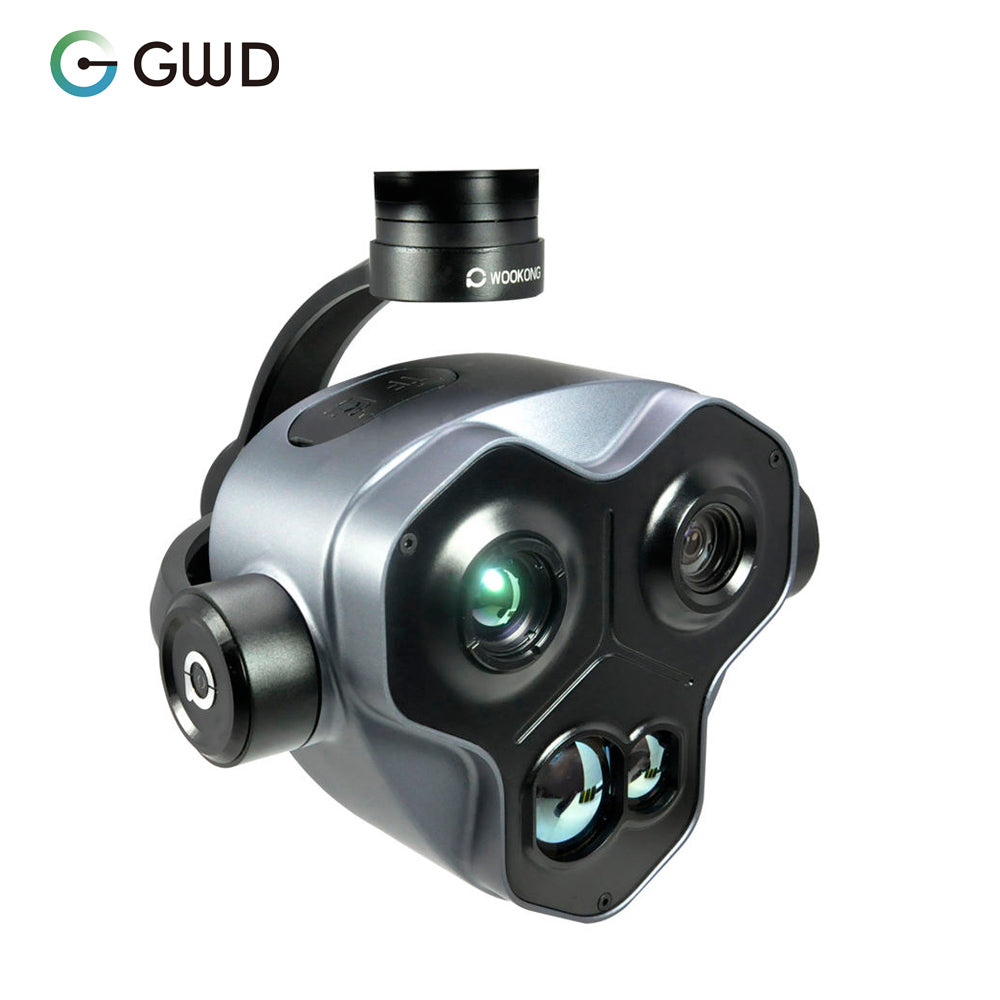

WK10TIRM is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can meet many powerful functions, such as: photos or videos with 10 times optical zoom, object tracking, laser rangefinder, thermal imager and so on.
The speed of WK10TIRM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode
for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.
|
HARDWARE PARAMETER
|
|
|
Working voltage
|
14V ~ 16V
|
|
Input voltage
|
3S ~ 4S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
550mA @ 12V
|
|
Idle current
|
450mA @ 12V
|
|
Power consumption
|
≤ 6.6W
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI(HD output 1080P 60fps) / RJ45 / SDI / Skyport
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
PWM / TTL / S.BUS / TCP(IP output) / DJI Pilot(DJI Version)
|
|
GIMBAL SPECIFICATIONS
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±170° / ±360°*N (IP/SDI/Skyport output)
|
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw：±0.01°
|
|
One-key to center
|
√
|
|
CAMERA SPECIFICATIONS
|
|
|
Imager Sensor
|
1/3" CMOS
|
|
Picture quality
|
Full HD 1080 (1920*1080)
|
|
Effective pixel
|
4.08MP
|
|
Lens optical zoom
|
10x, F=3.2~33.6mm
|
|
Min object distance
|
10mm(wide end) to 800mm(tele end)
|
|
Horizontal viewing angle
|
Wide 62° ~ Tele 6.5°
|
|
Sync system
|
Progressive scanning
|
|
S/N ratio
|
more than 52dB
|
|
Min illumination
|
0.5lux@F1.8, 50%, 1/30s
|
|
Illumination range
|
100 lx ~100,000 lx
|
|
Gain
|
Auto/Manual
|
|
White balance
|
ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R)
|
|
Shutter speed
|
1/1s to 1/10,000s, 22 steps
|
|
Exposure compensation
|
-12dB ~ +12dB (13steps in total)
|
|
Backlight compensation
|
Yes
|
|
Aperture control
|
16 steps
|
|
OSD
|
Yes
|
|
Fotoformate
|
JPEG
|
|
Videoformate
|
MP4
|
|
OSD
|
Yes
|
|
Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<10ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|
Thermal imager spec
|
|
|
Lens size
|
19mm
|
|
Horizontal FOV
|
32°
|
|
Vertical FOV
|
24°
|
|
Diagonal FOV
|
39.4°
|
|
Detective Distance (Man: 1.8x0.5m)
|
559 meters
|
|
Recognize Distance (Man: 1.8x0.5m)
|
140 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
70 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
1714 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
428 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
214 meters
|
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
|
Detector pixel
|
640*480
|
|
Pixel size
|
17μm
|
|
Focusing method
|
Athermal prime lens
|
|
Emissivity correction
|
0.01~1
|
|
NETD
|
≤50mK (@25℃)
|
|
MRTD
|
≤650mK (@characteristic frequency)
|
|
Image enhancement
|
Auto adjust image brightness and contrast ratio
|
|
Color palette
|
White, iron red, pseudo color
|
|
Auto Non-uniform correction
|
Yes (no shutter)
|
|
Digital zoom
|
1x, 3x
|
|
Sync correct time
|
Yes
|
|
Thermometry type
|
Not support
|
|
Temperature warning
|
0℃~100℃
|
|
Thermal Object Tracking
|
|
|
Update rate of deviation pixel
|
30Hz
|
|
Output delay of deviation pixel
|
<3ms
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
Laser Rangefinder
|
|
|
Range
|
5~1500 meters
|
|
Resolution
|
0.5m
|
|
Working current:
|
80mA （max）
|
|
Light Beam
|
905nm pulse laser
|
|
Divergent Angle
|
3 mrad
|
|
Laser pulse frequency
|
1HZ
|
|
Power
|
＜ 1 mW (safe for eye)
|
|
Ranging mode
|
Pulse
|
|

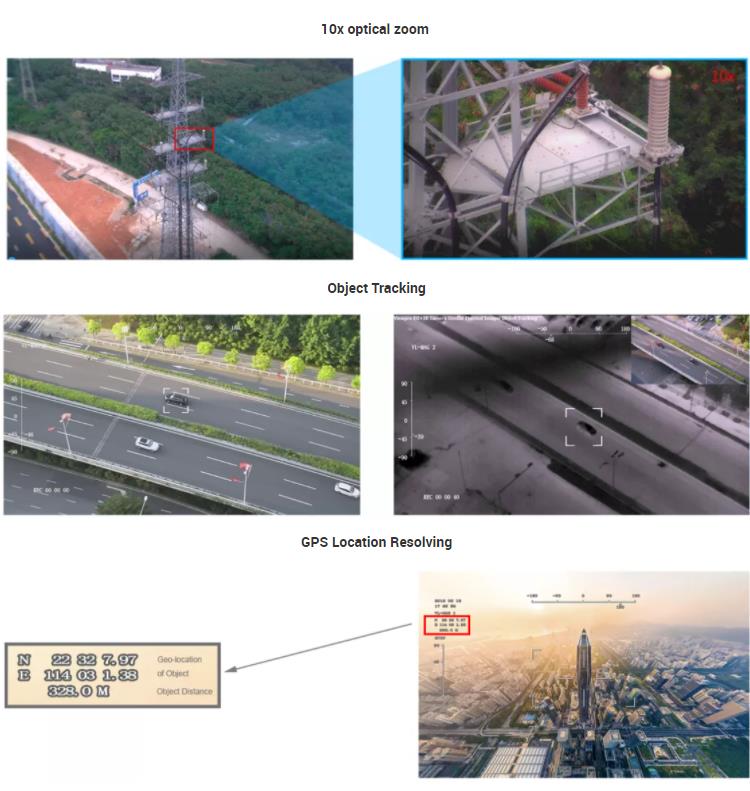

Location Resolving
|
Latitude and longitude of target
|
|
Ranefinder
|
Target distance measuring
|
|
Packing Information
|
|
|
N.W.
|
780g
|
|
Product meas.
|
156.7*145*175.5mm
|
|
Accessories
|
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic
box with foam cushion |
|
G.W.
|
3082g
|
|
Package meas.
|
360*300*250mm
|
